Home >> Dodge >> 1998 >> Intrepid V6-2.7L VIN R >> Repair and Diagnosis >> Heating and Air Conditioning >> Air Door >> Air Door Actuator / Motor >> Locations

Air Door Actuator / Motor: Locations

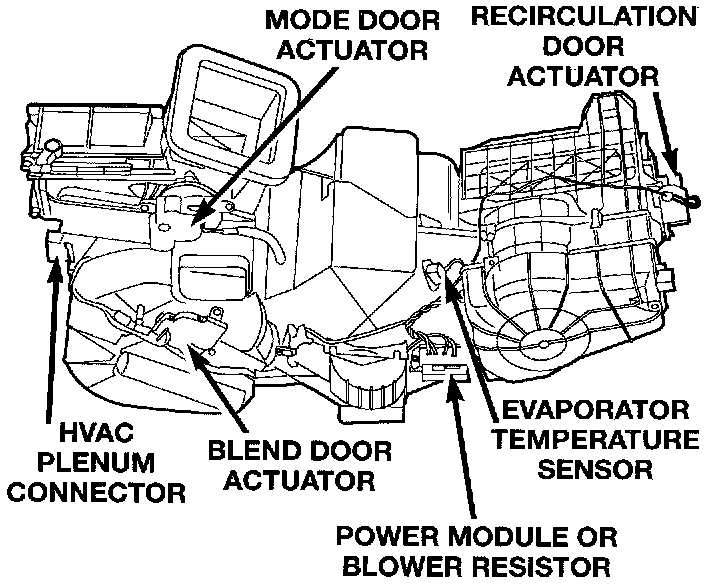

HVAC Door Actuator Locations:
