System Diagram

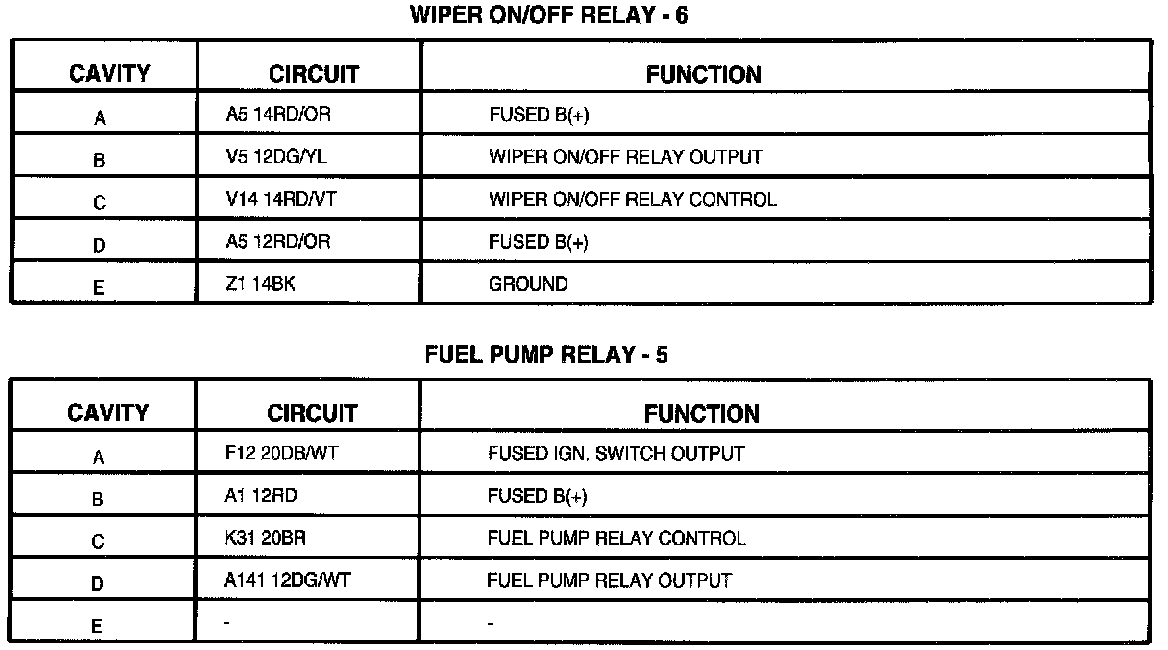

Power Distribution:

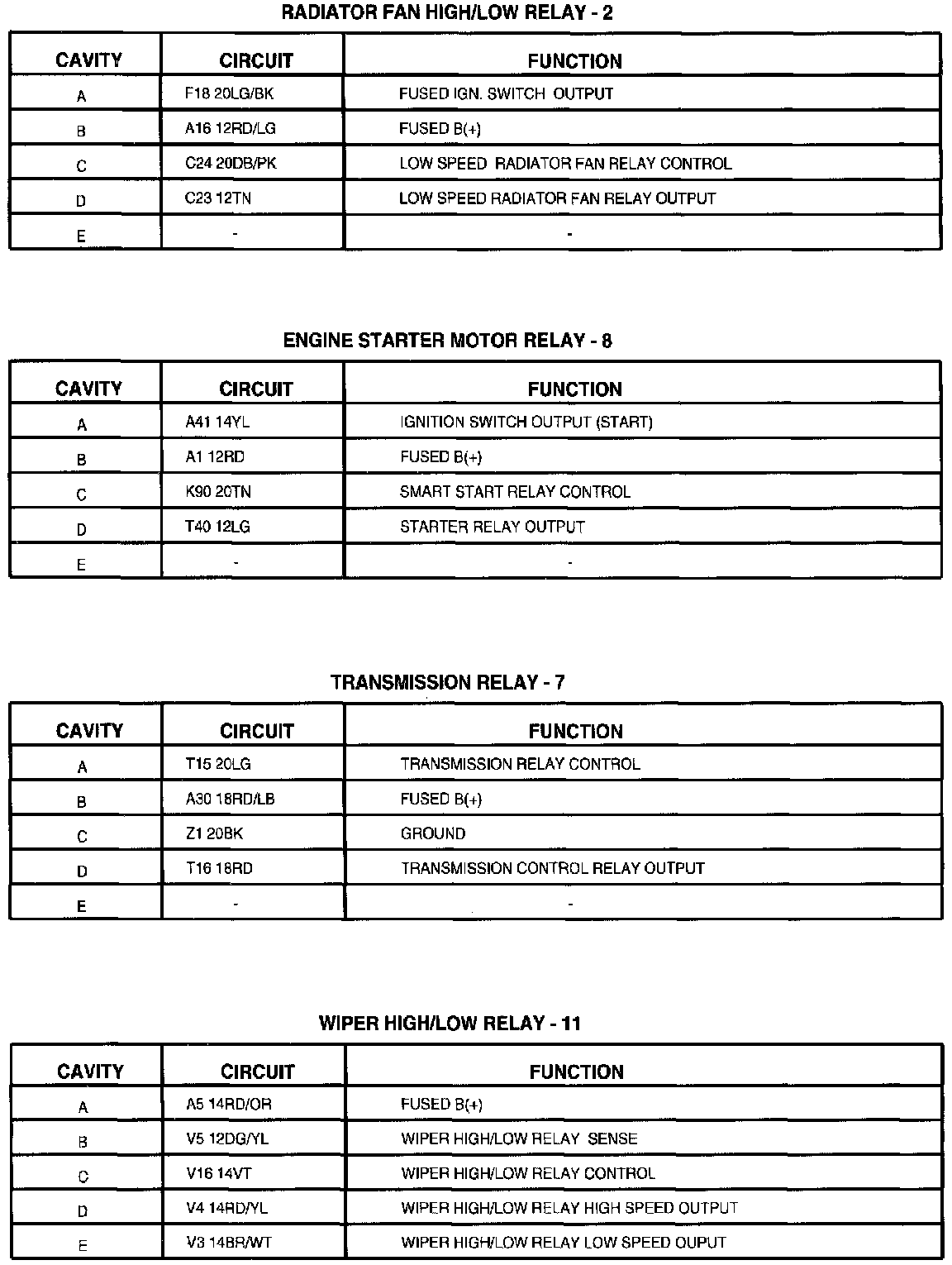

Power Distribution:

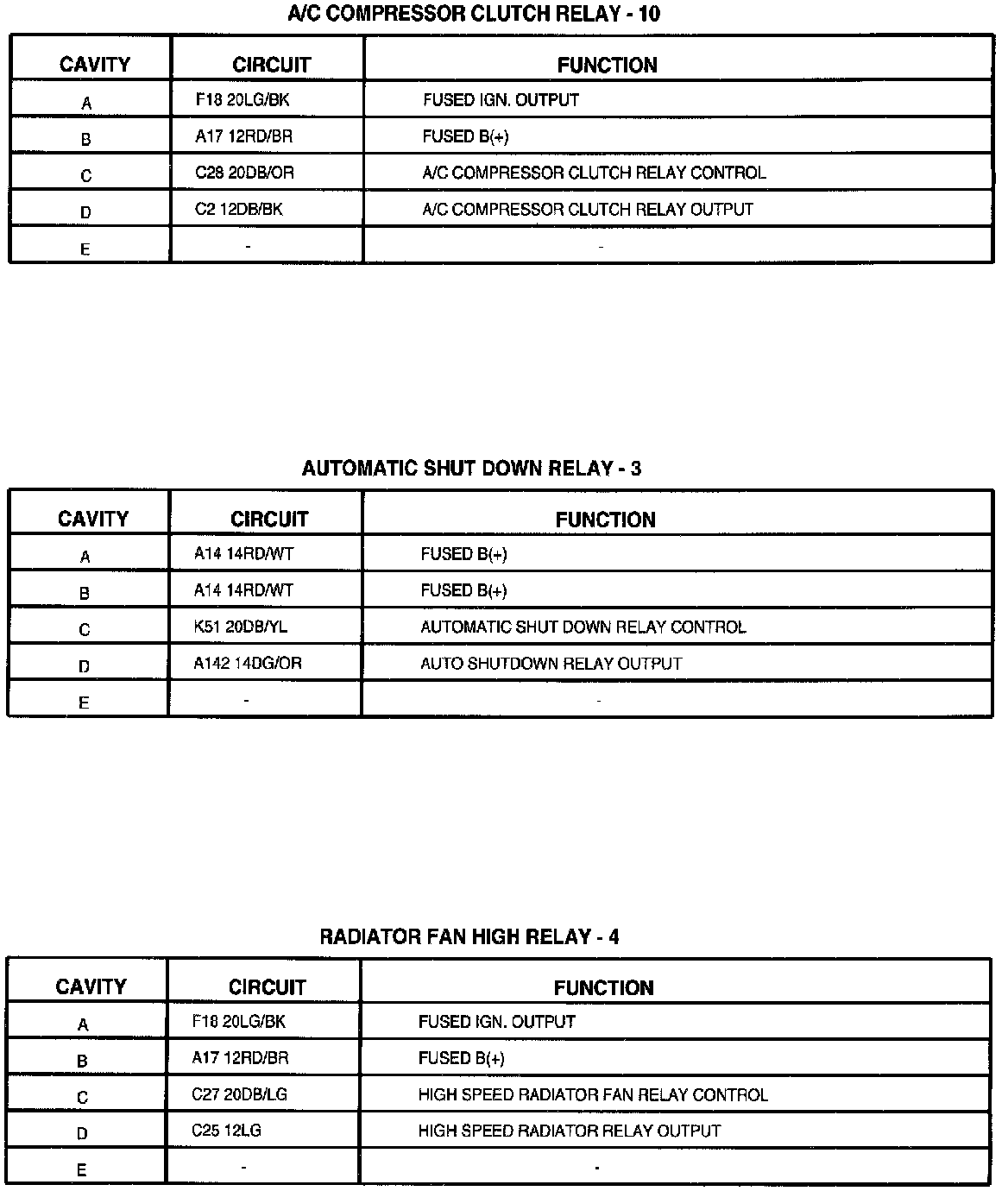

Power Distribution:

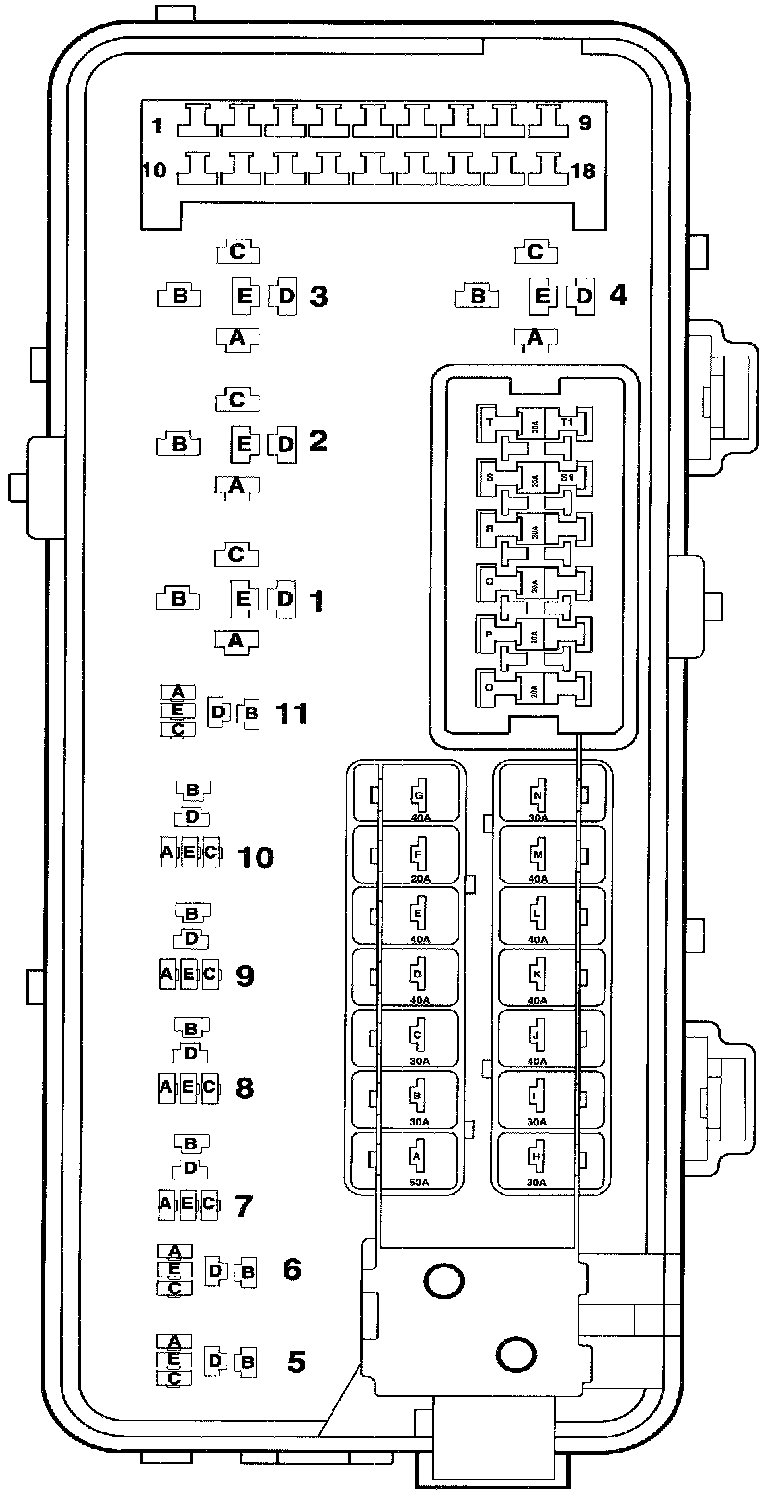

Power Distribution:

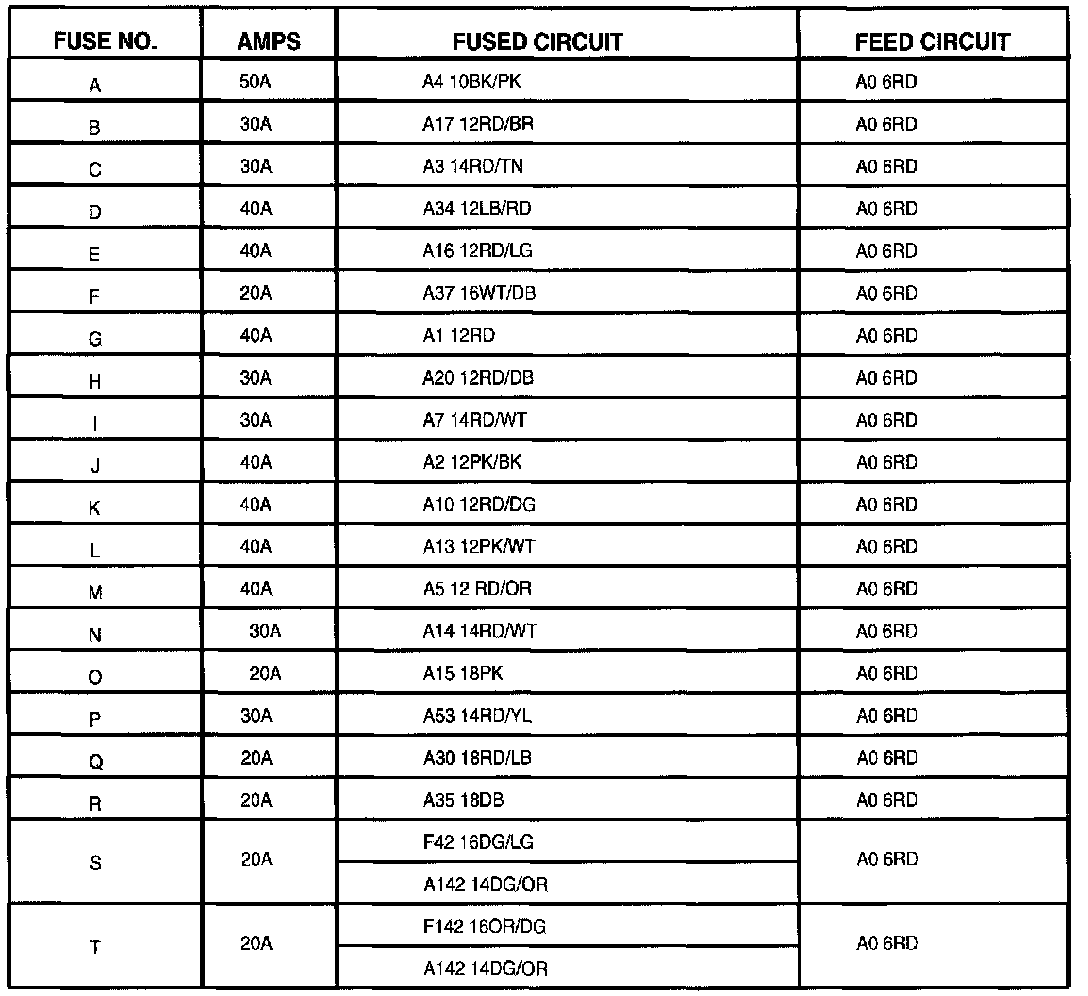

Power Distribution:
