Multiple Junction Connector

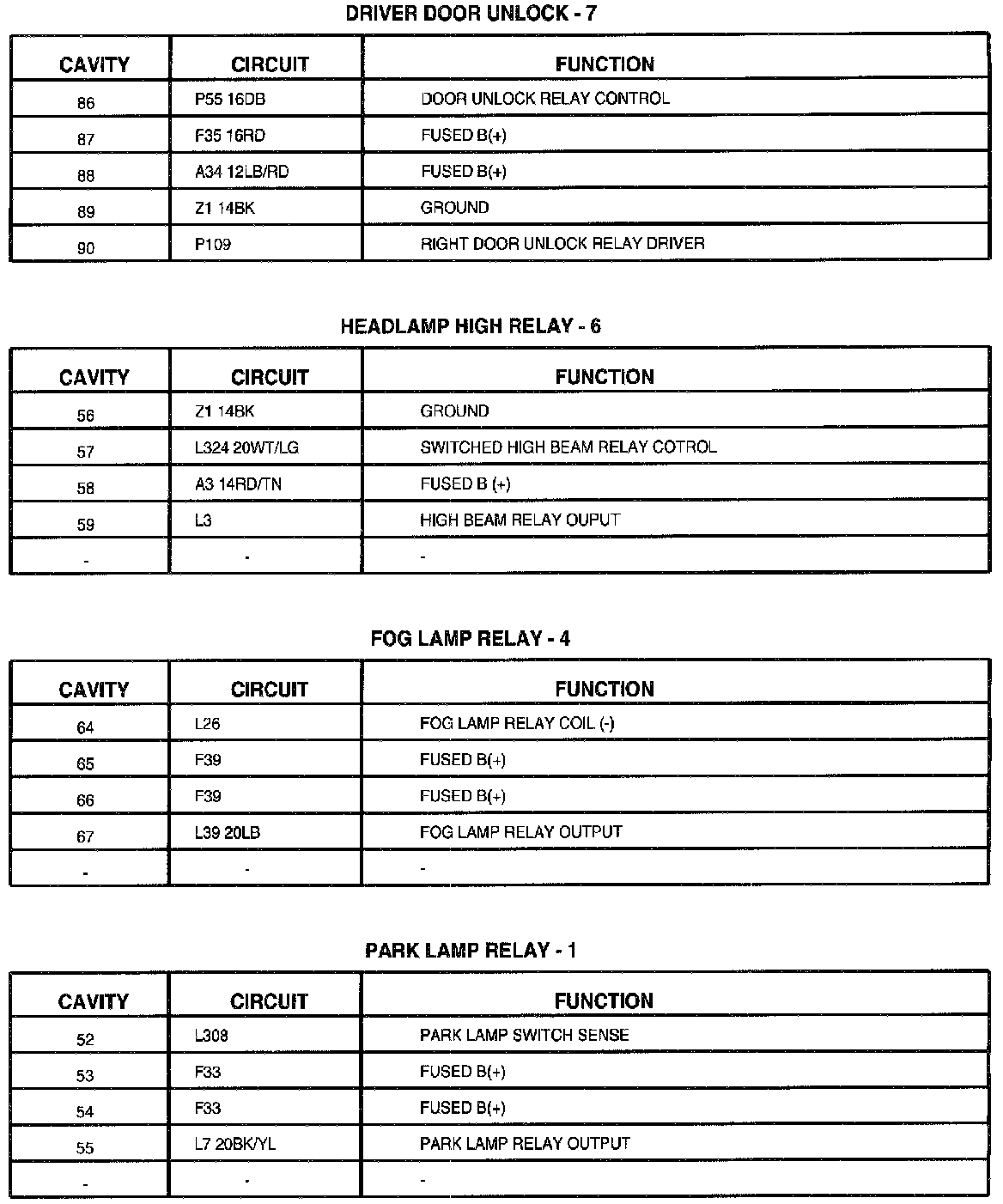

Junction Block:

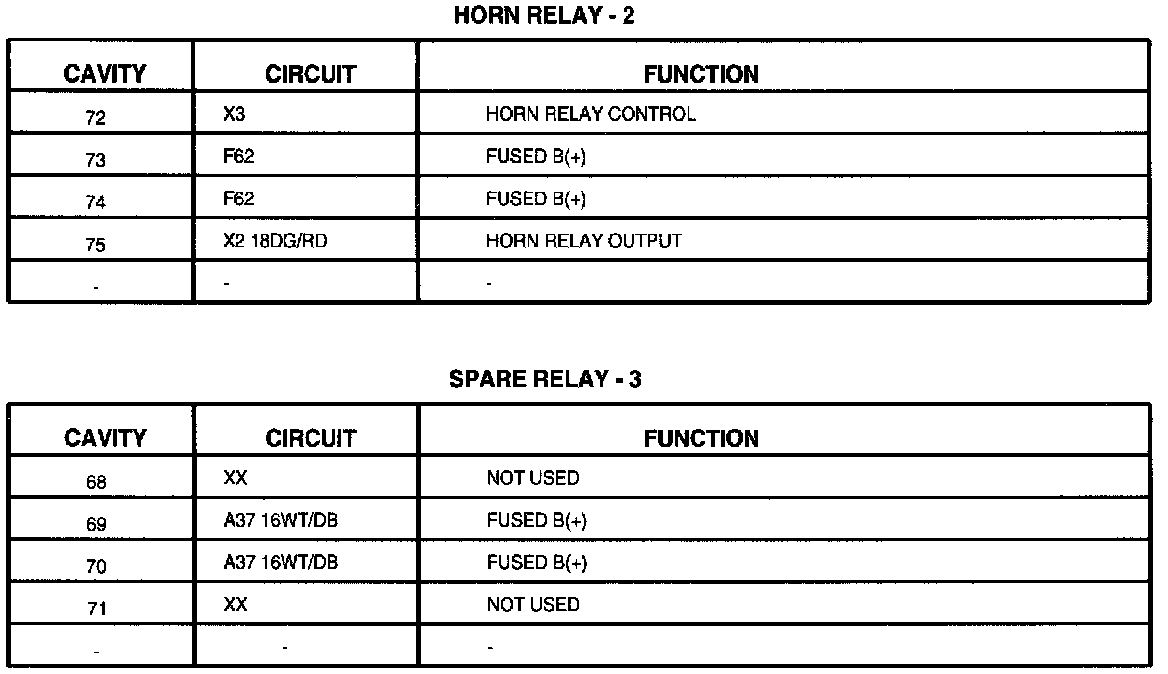

Junction Block:

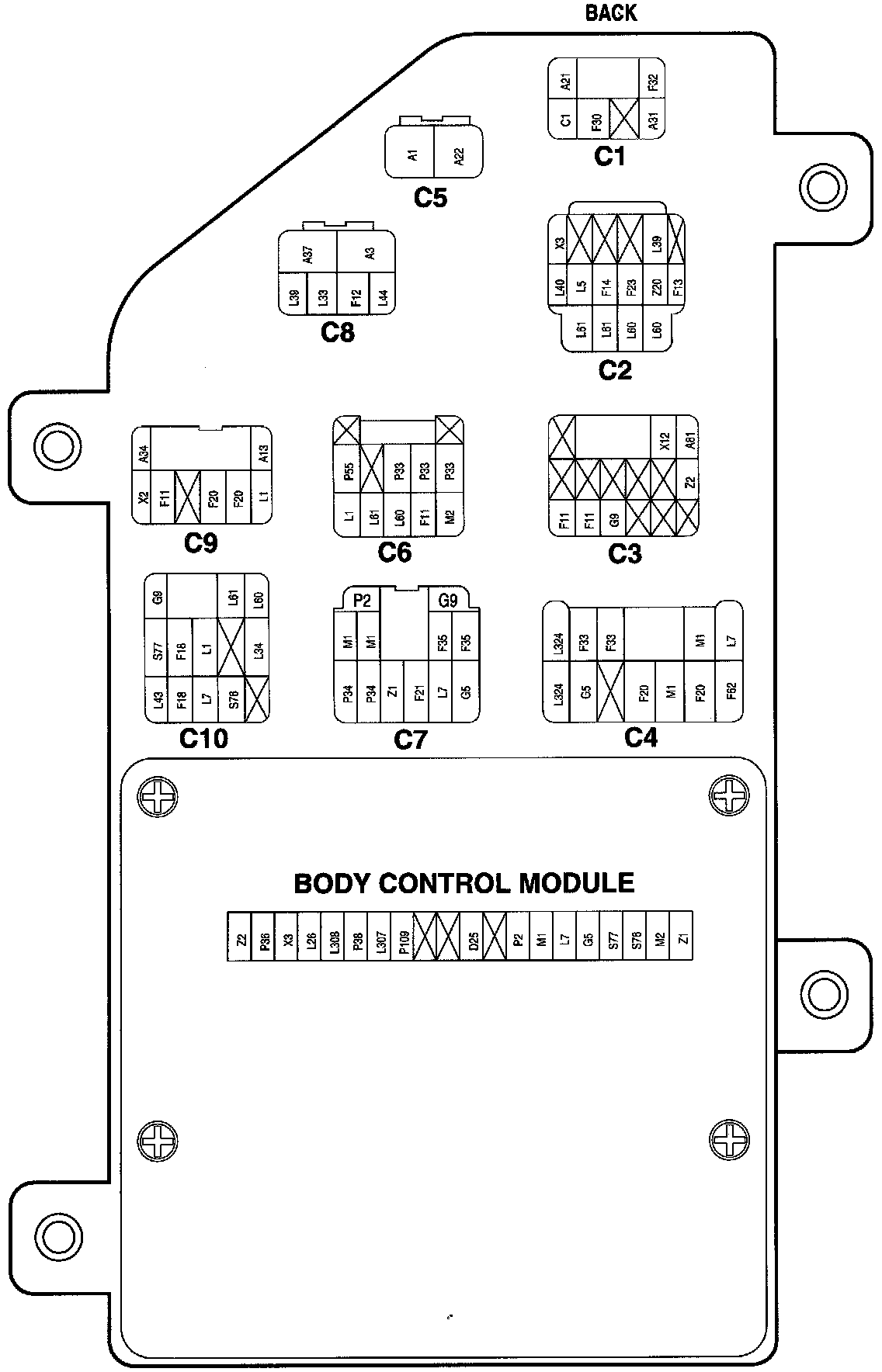

Junction Block:

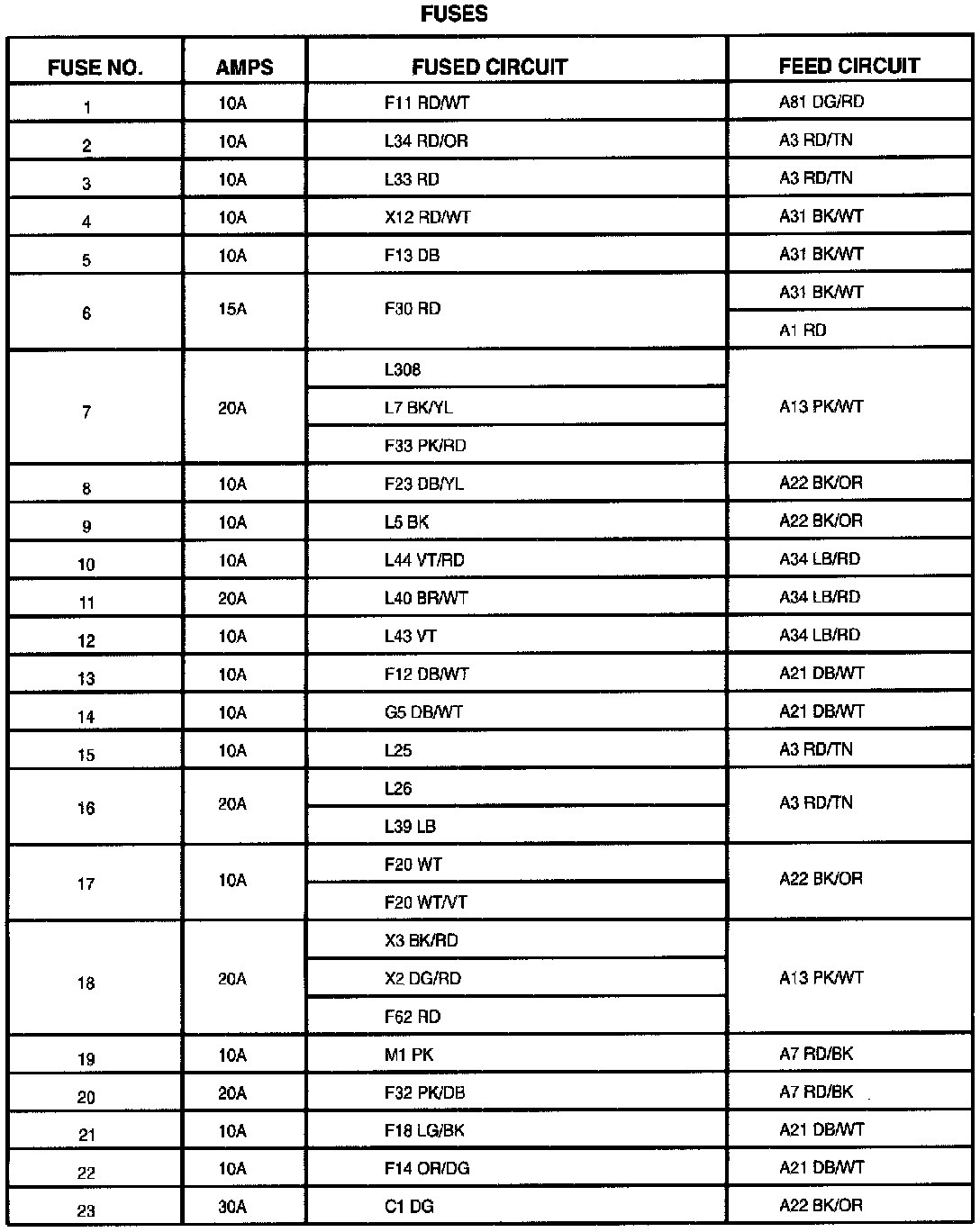

Junction Block:




Junction Block:




Junction Block:
