Air Door Actuator / Motor, HVAC
Air Door Actuator / Motor, HVAC
Blend Door Actuator:

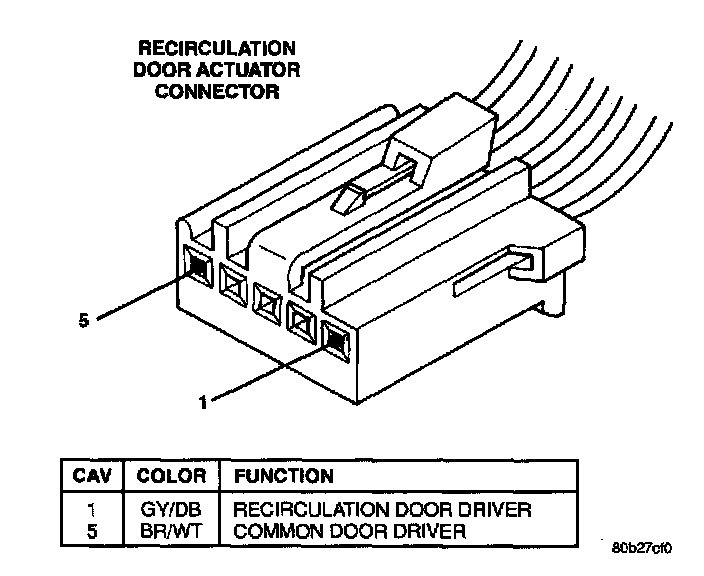

Recirculation Door Actuator:

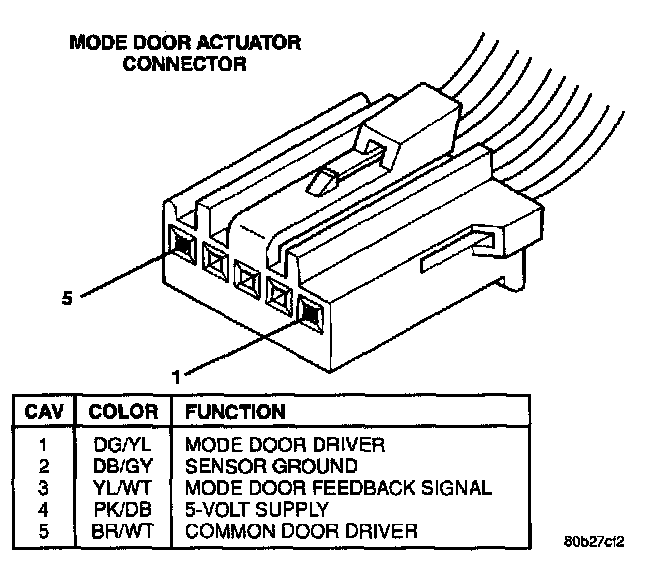

Mode Door Actuator:
