Home
>>
Dodge
>>
1998
>>
Avenger V6-2.5L VIN N
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>
A Connectors - Engine Compartment Harness
A Connectors - Engine Compartment Harness

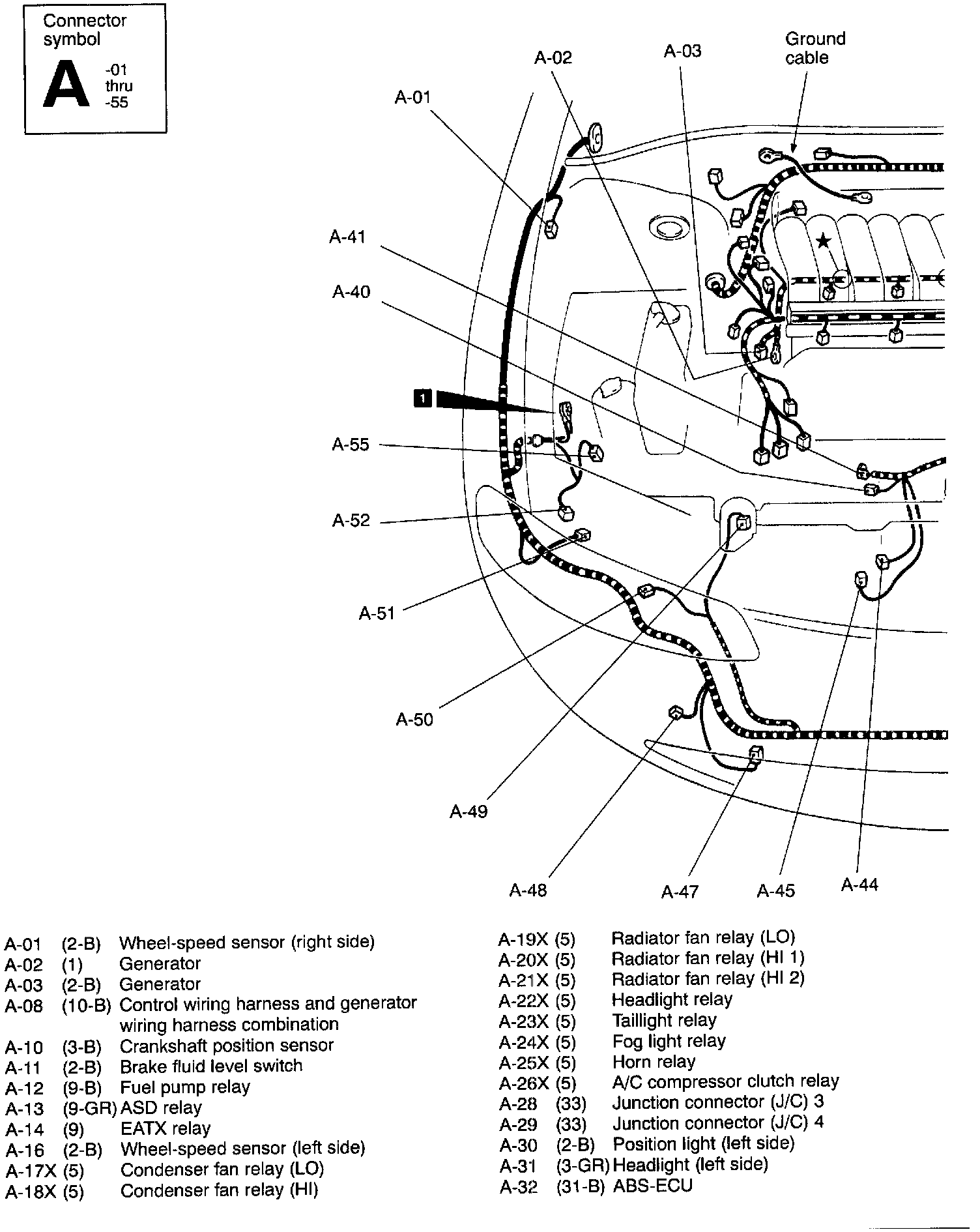

A Connectors - 01 Thru 55:
A Connectors - 01 Thru 55:

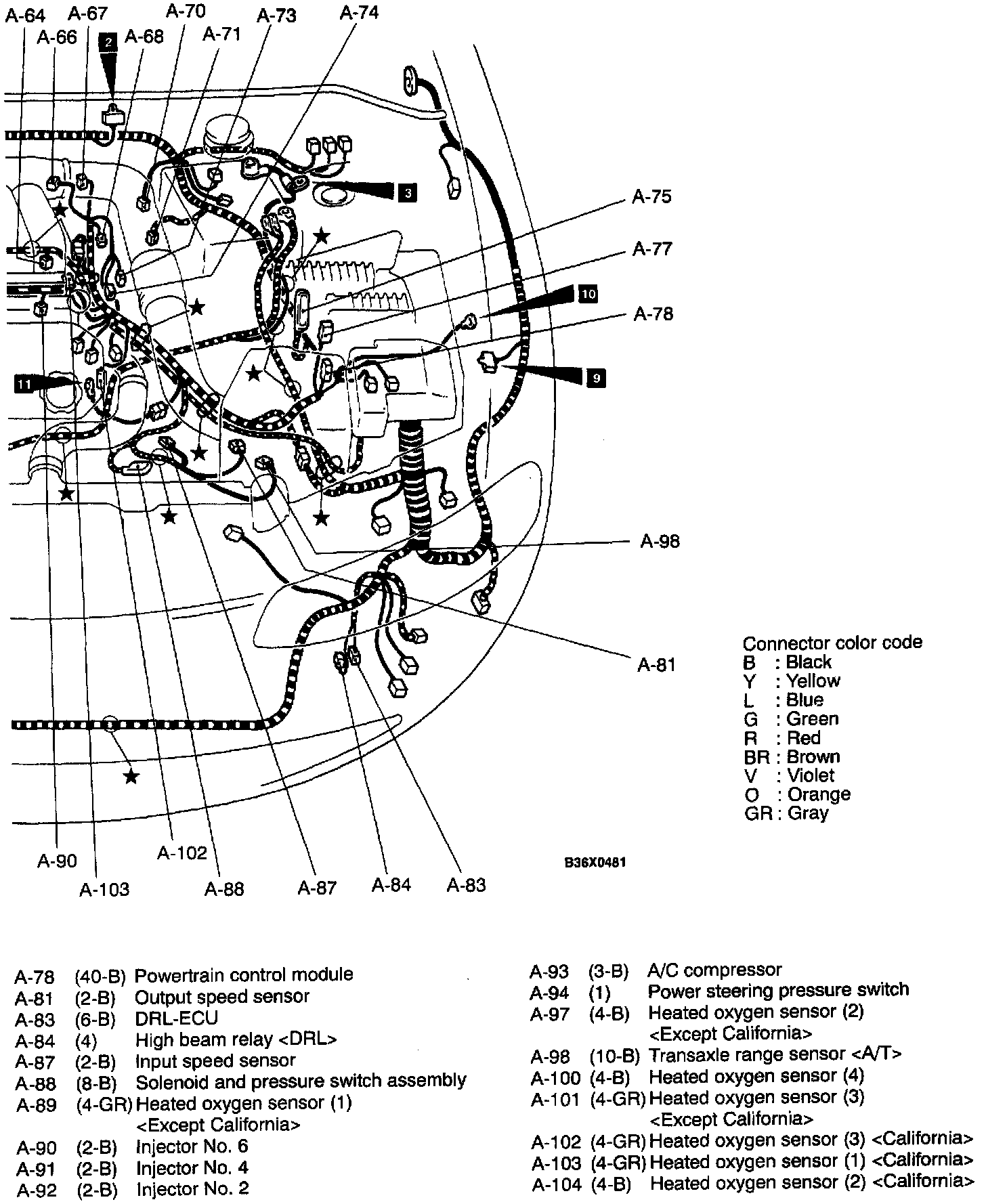

A Connectors - 56 Thru 104:
A Connectors - 56 Thru 104:
