Home >> Dodge >> 1996 >> Stratus V6-2.5L SOHC 24 Valve >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Motor >> Testing and Inspection >> Component Tests and General Diagnostics >> Test 109A: Inoperative Wiper Wash Function >> Part 2 of 3

Part 2 of 3

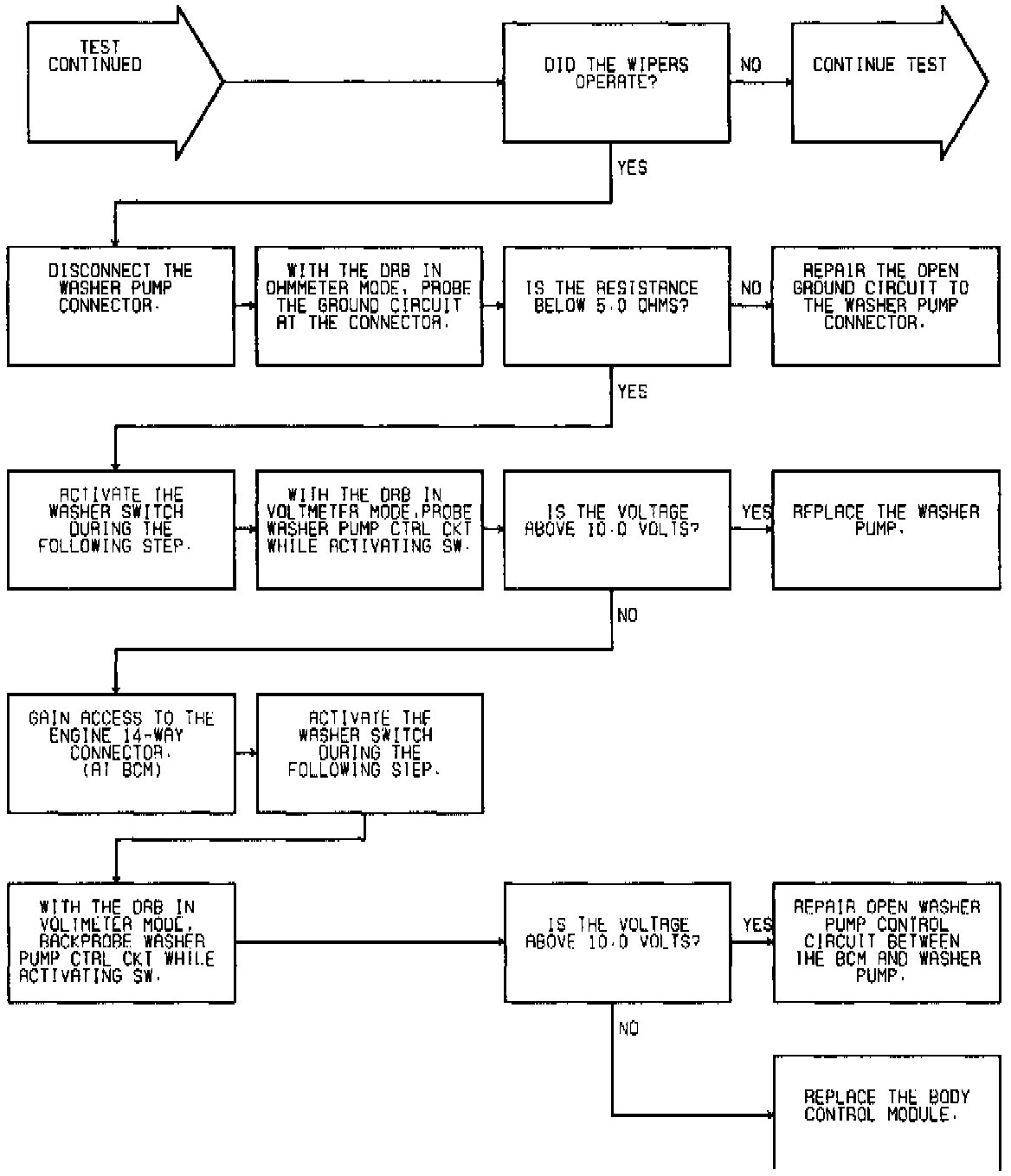

Fig.37 Inoperative Wiper Wash Function Part 2 of 3:
