Home >> Dodge >> 1996 >> Stratus V6-2.5L SOHC 24 Valve >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Power and Ground Distribution >> Relay Box >> Diagrams

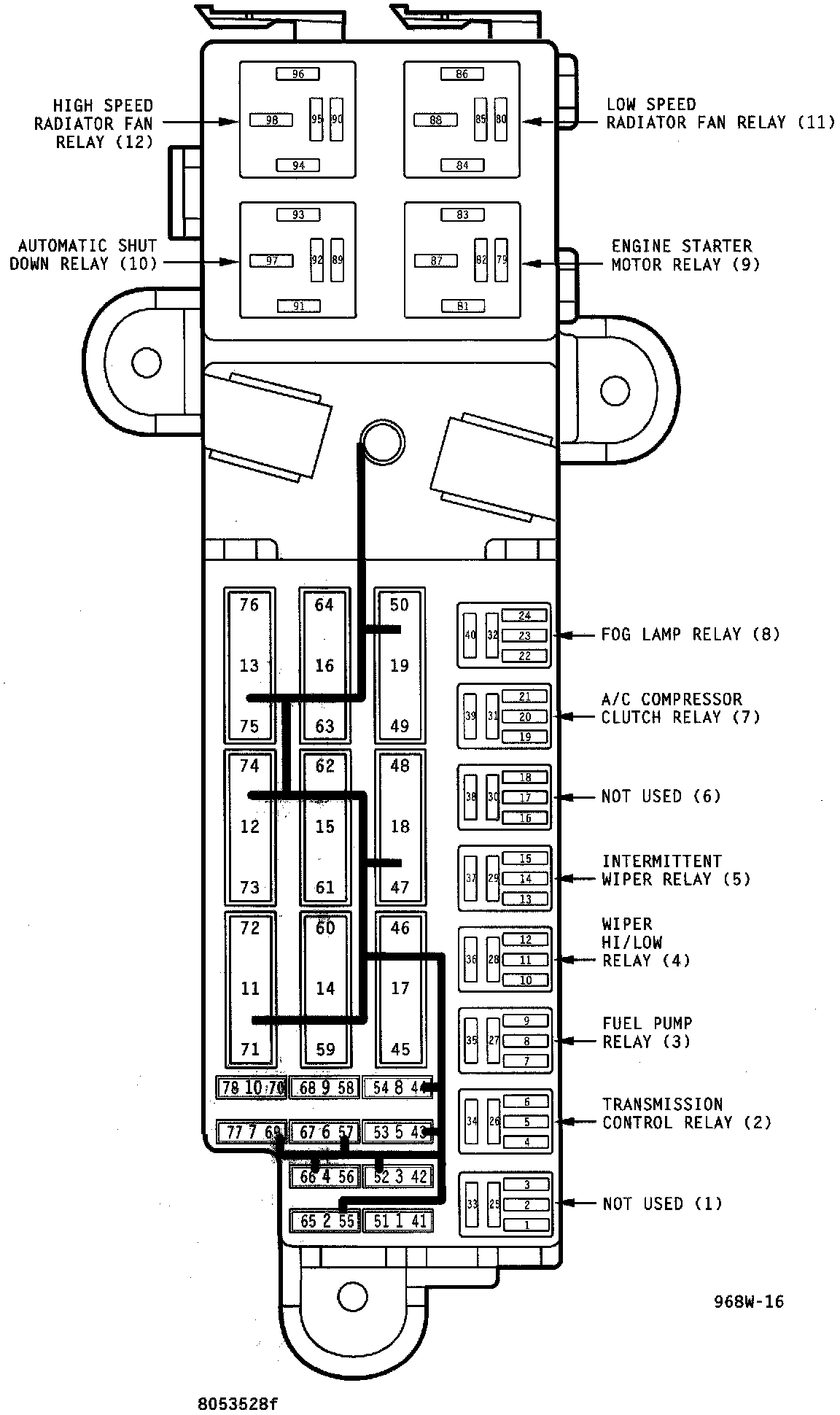

Relay Box: Diagrams

Power Distribution (Part 1 Of 4):
