Wiring Diagrams

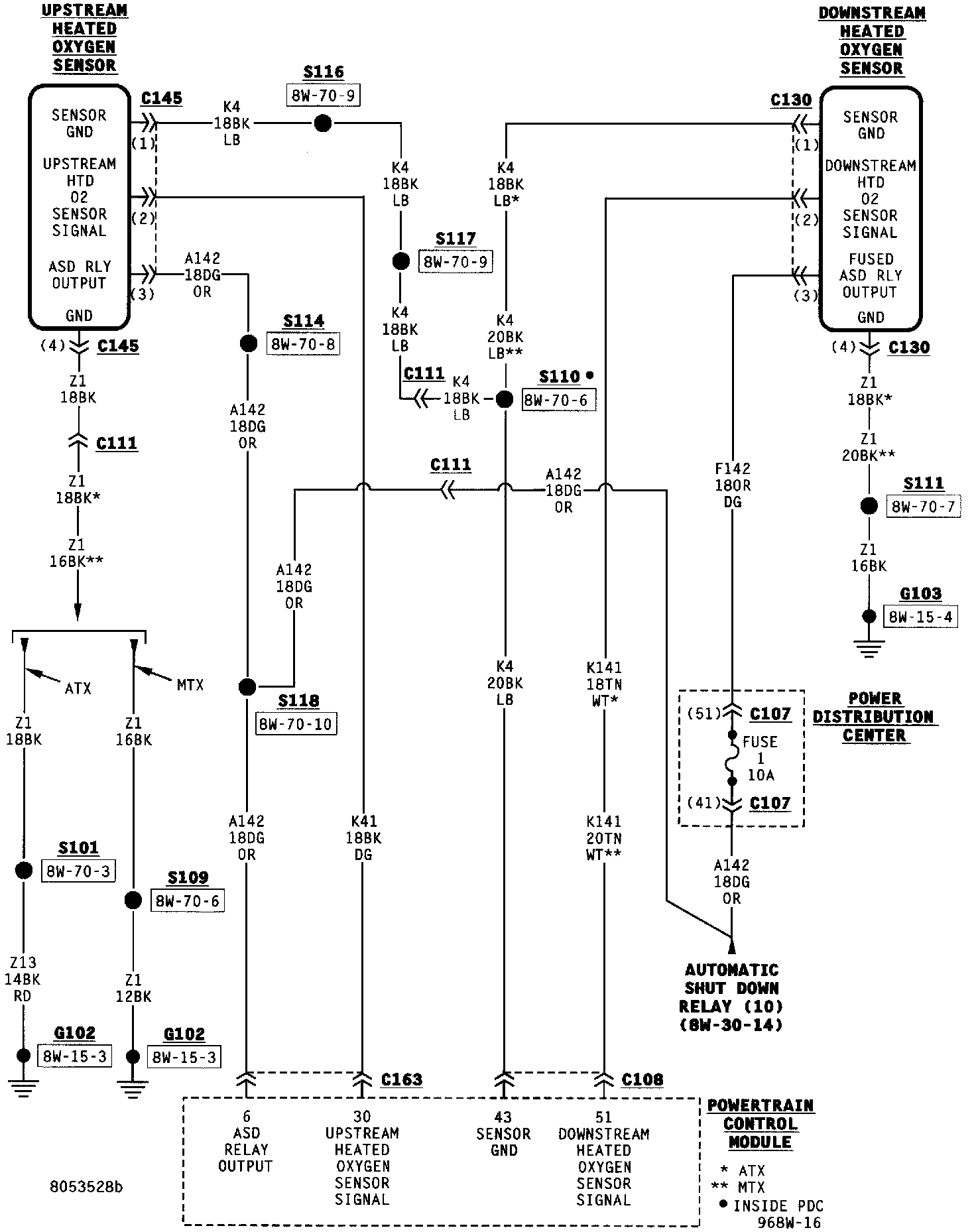

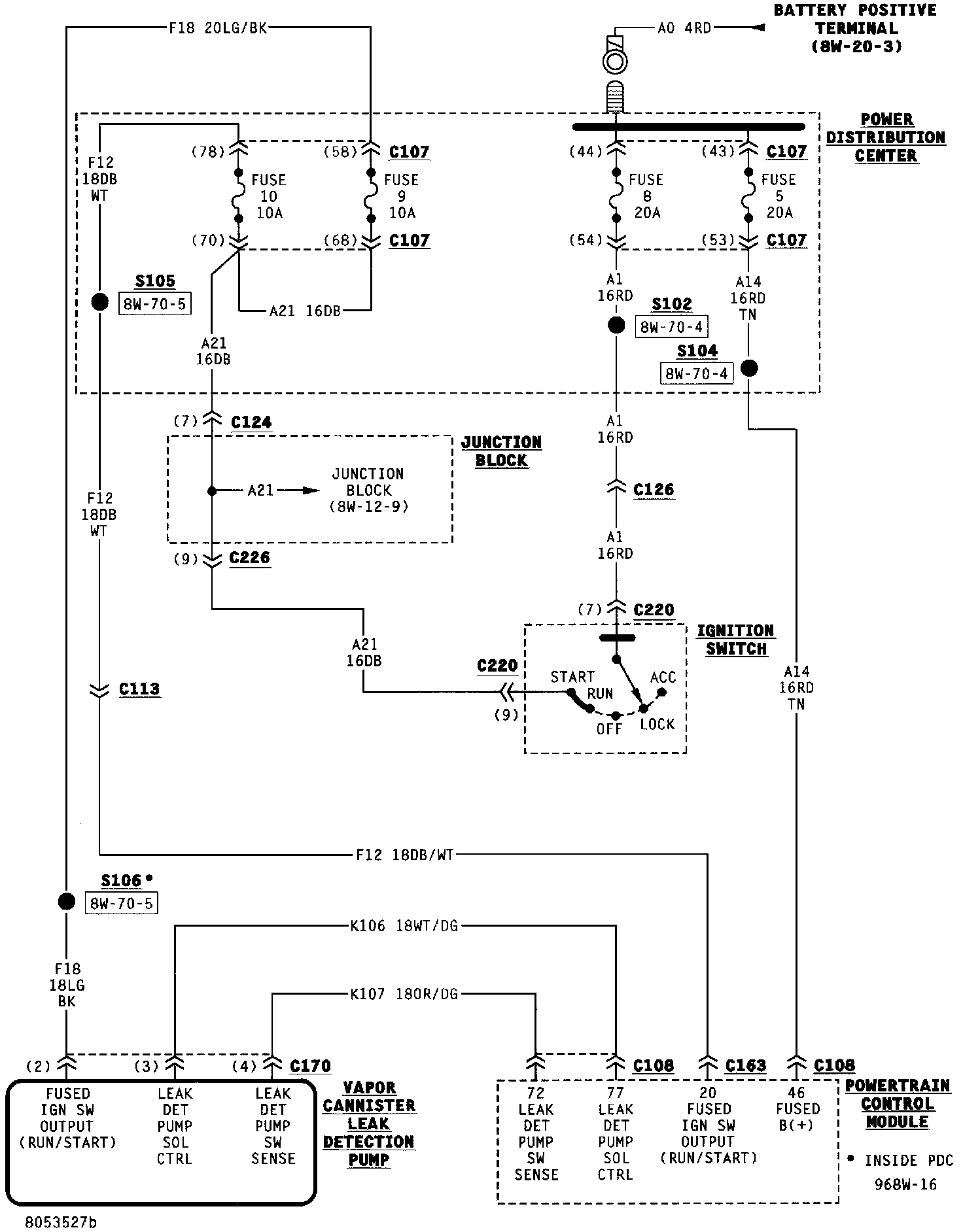

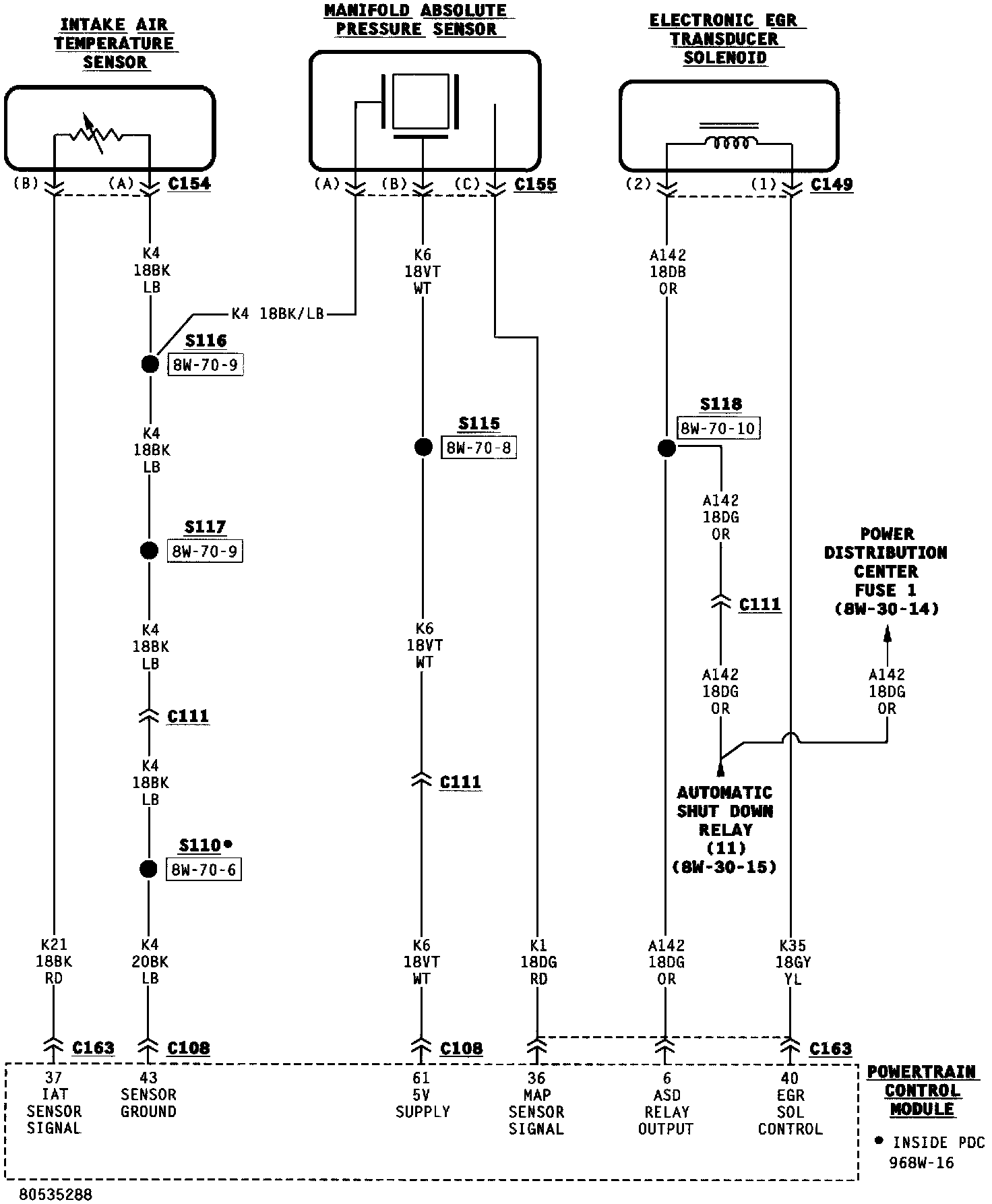

Fuel/Ignition Systems:

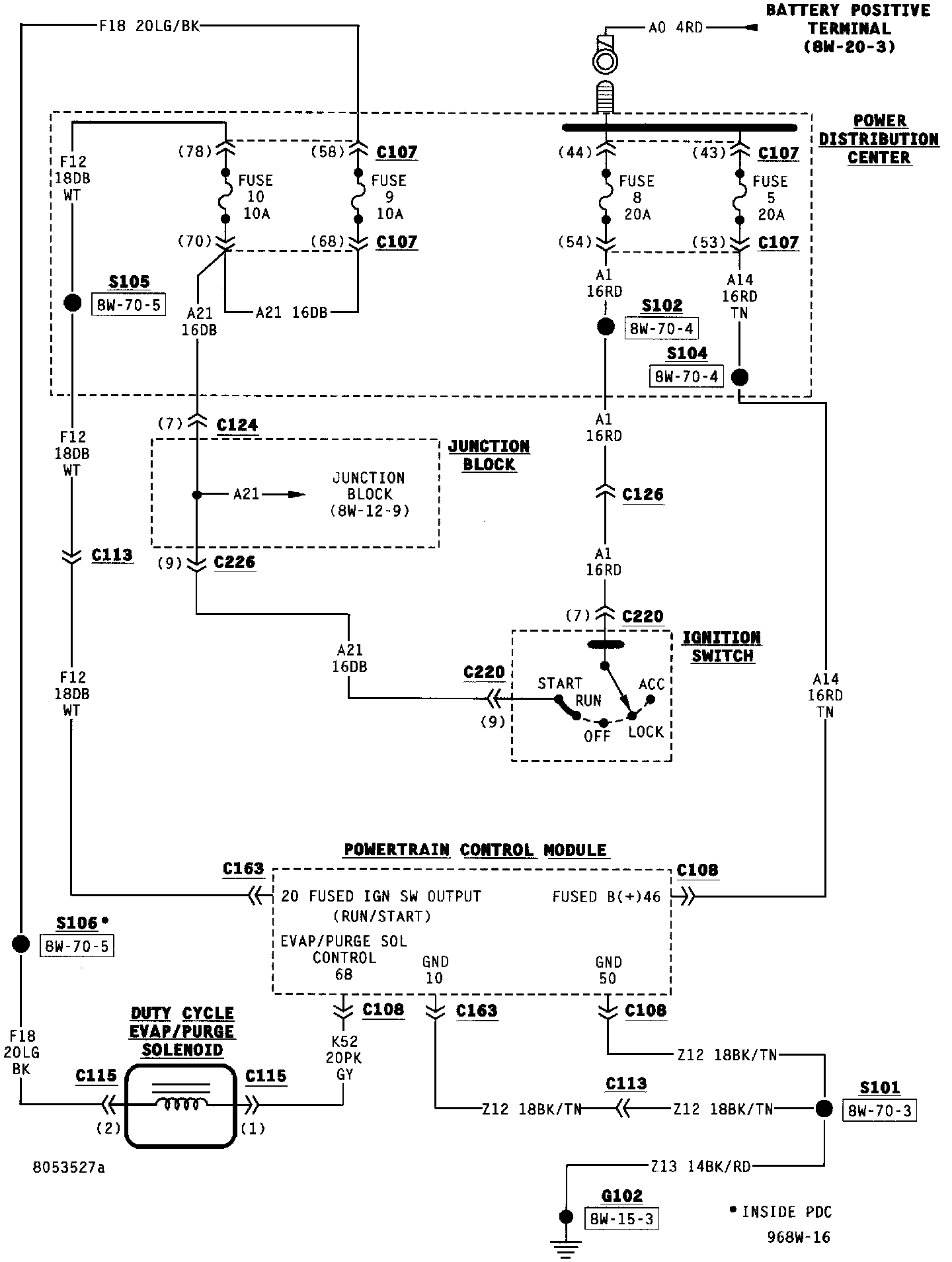

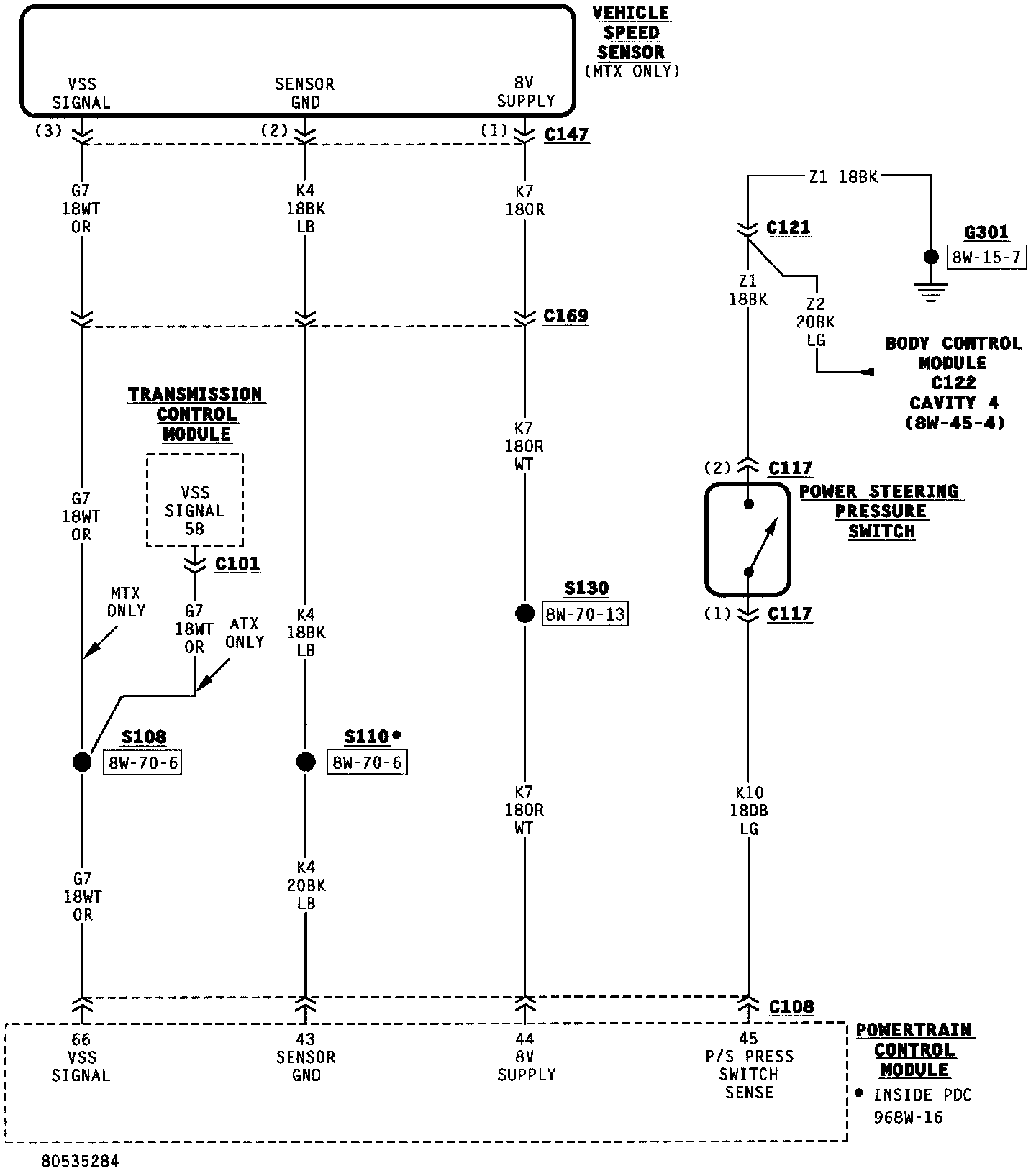

Fuel/Ignition Systems:

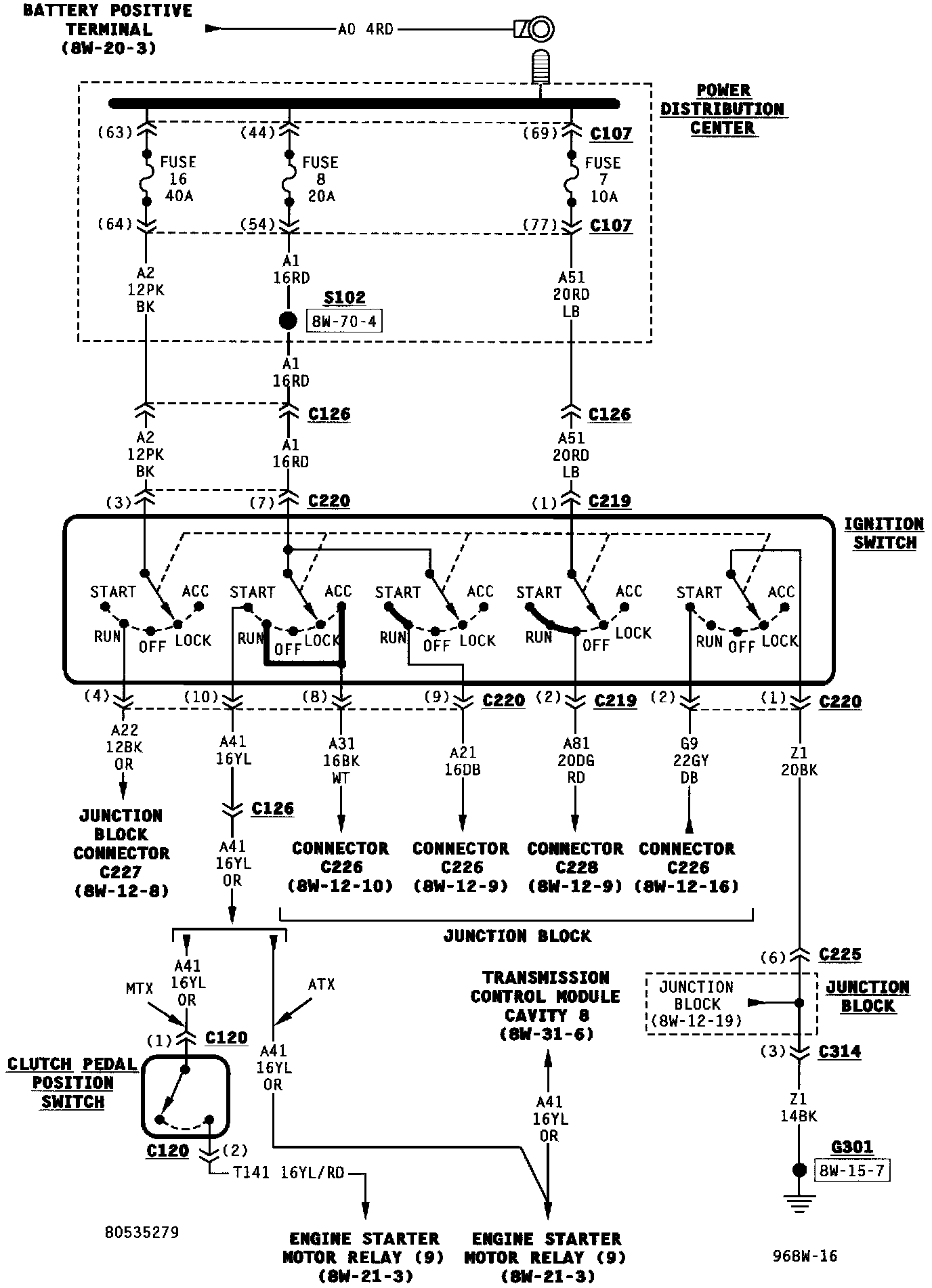

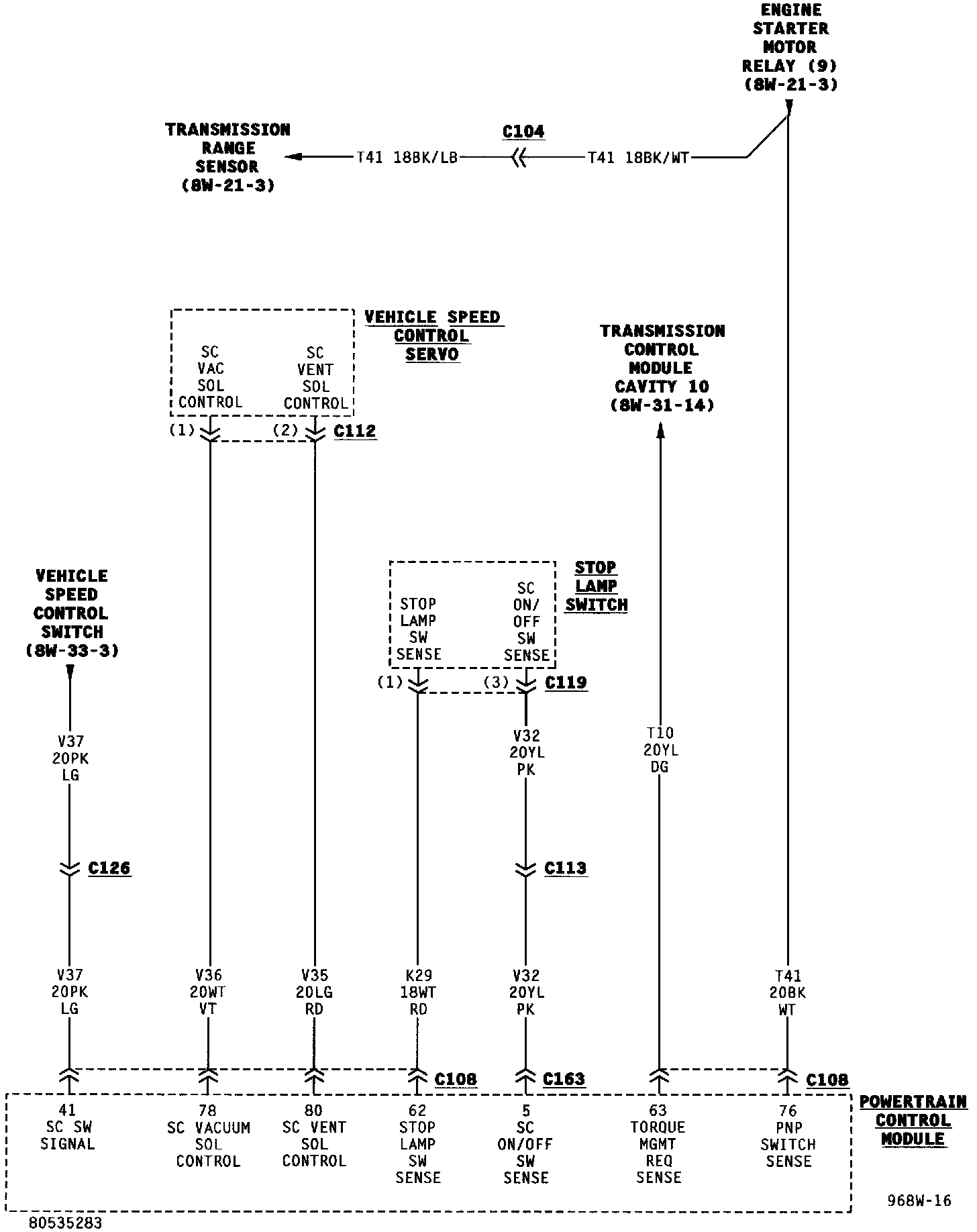

Fuel/Ignition Systems:

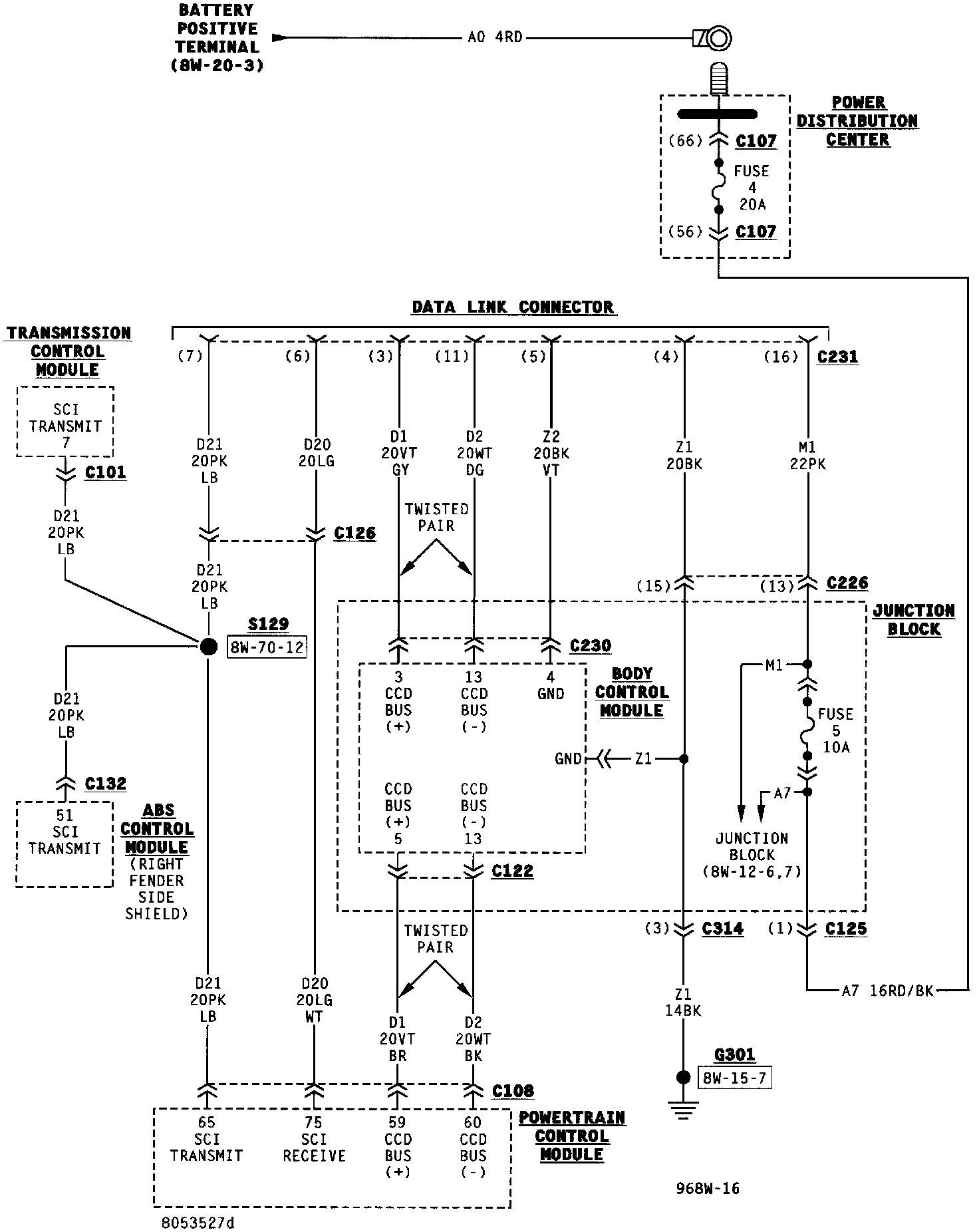

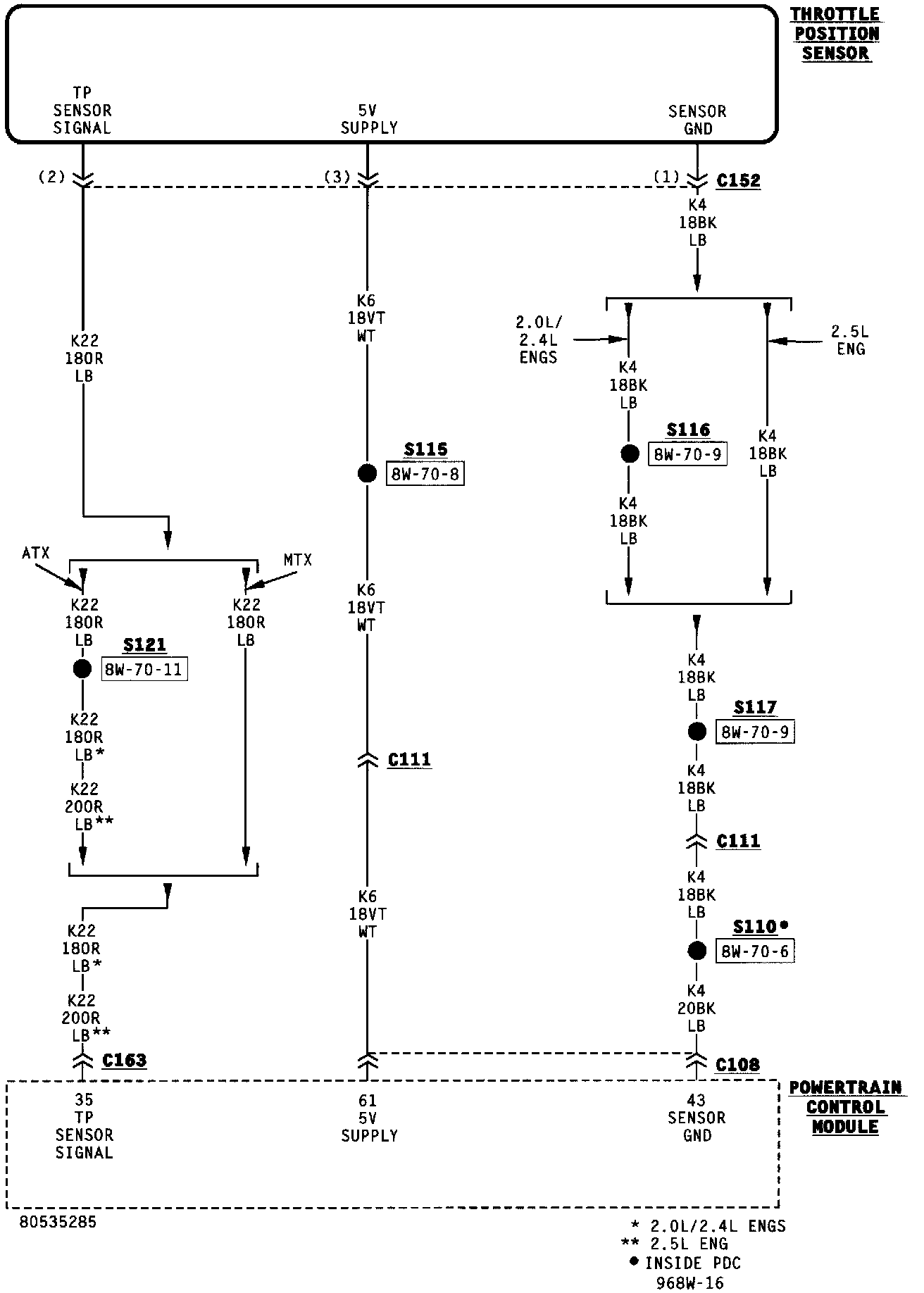

Fuel/Ignition Systems:

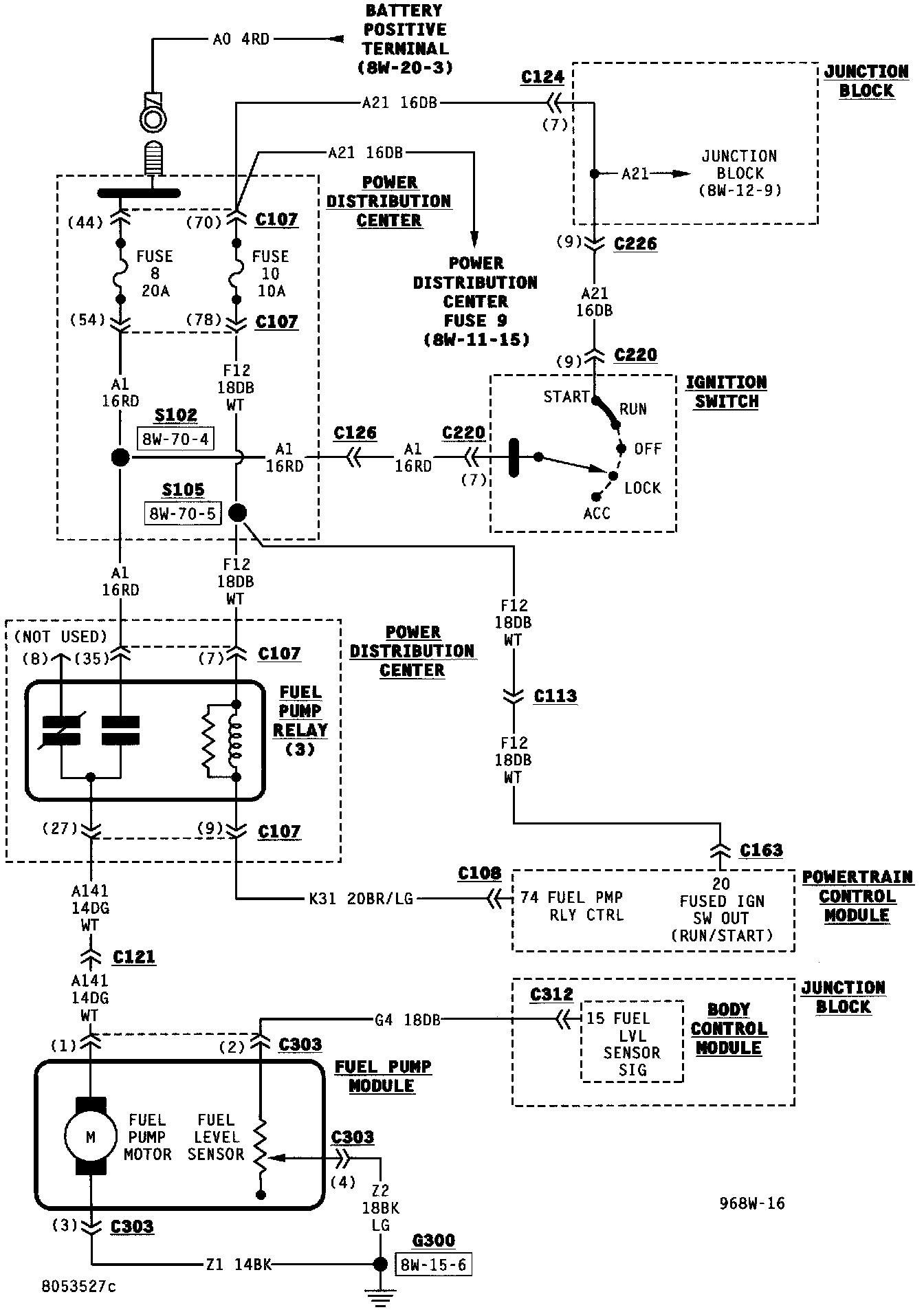

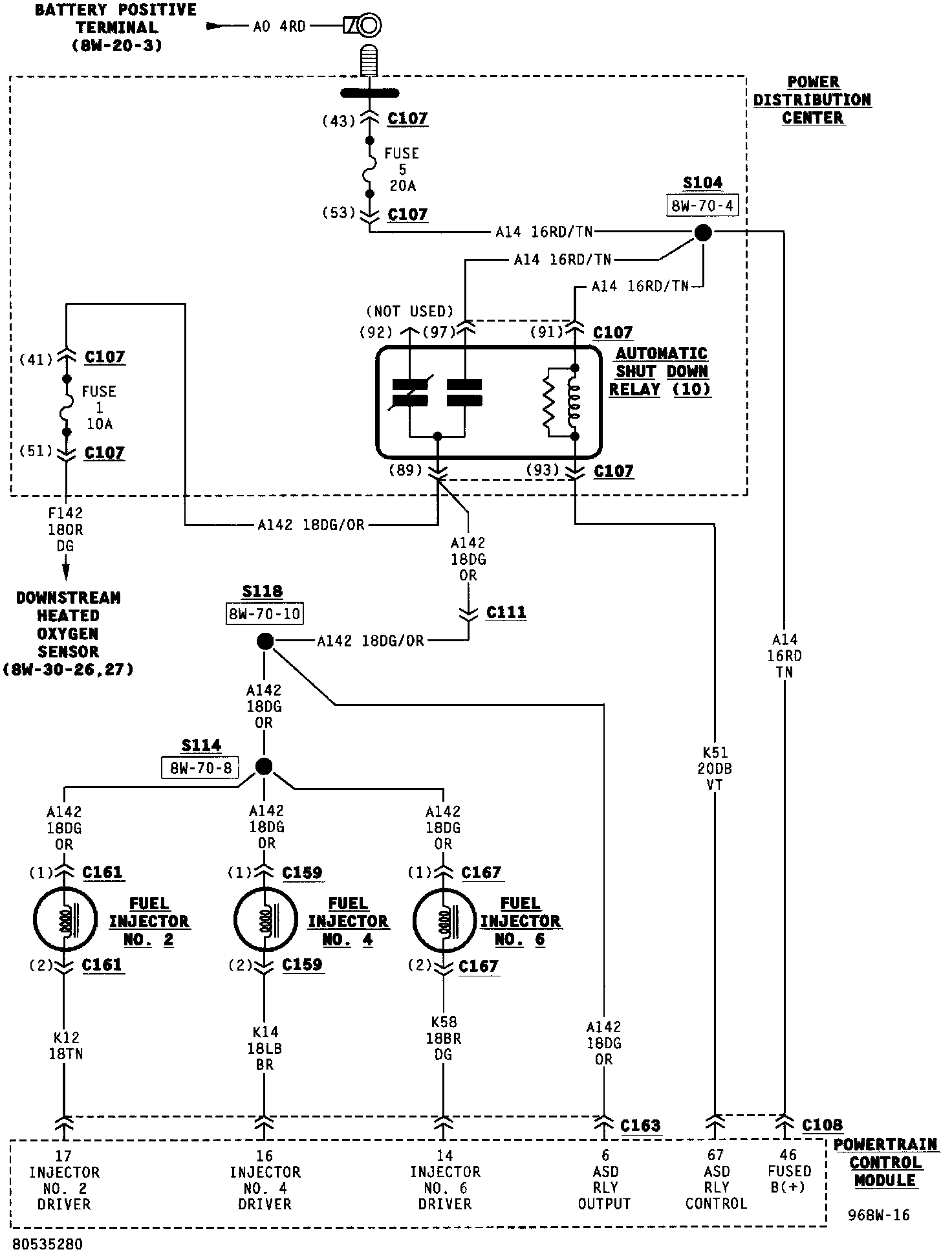

Fuel/Ignition Systems:

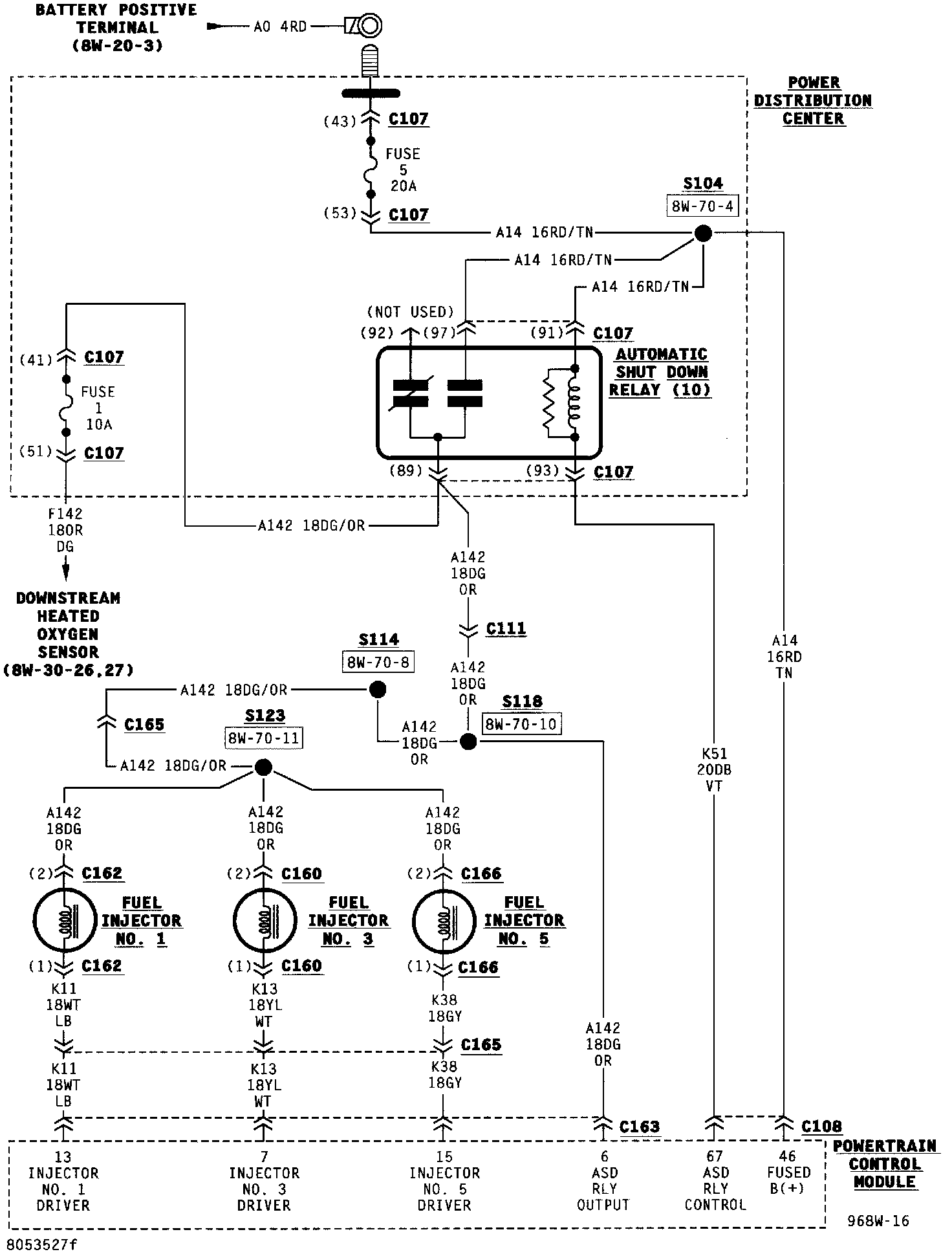

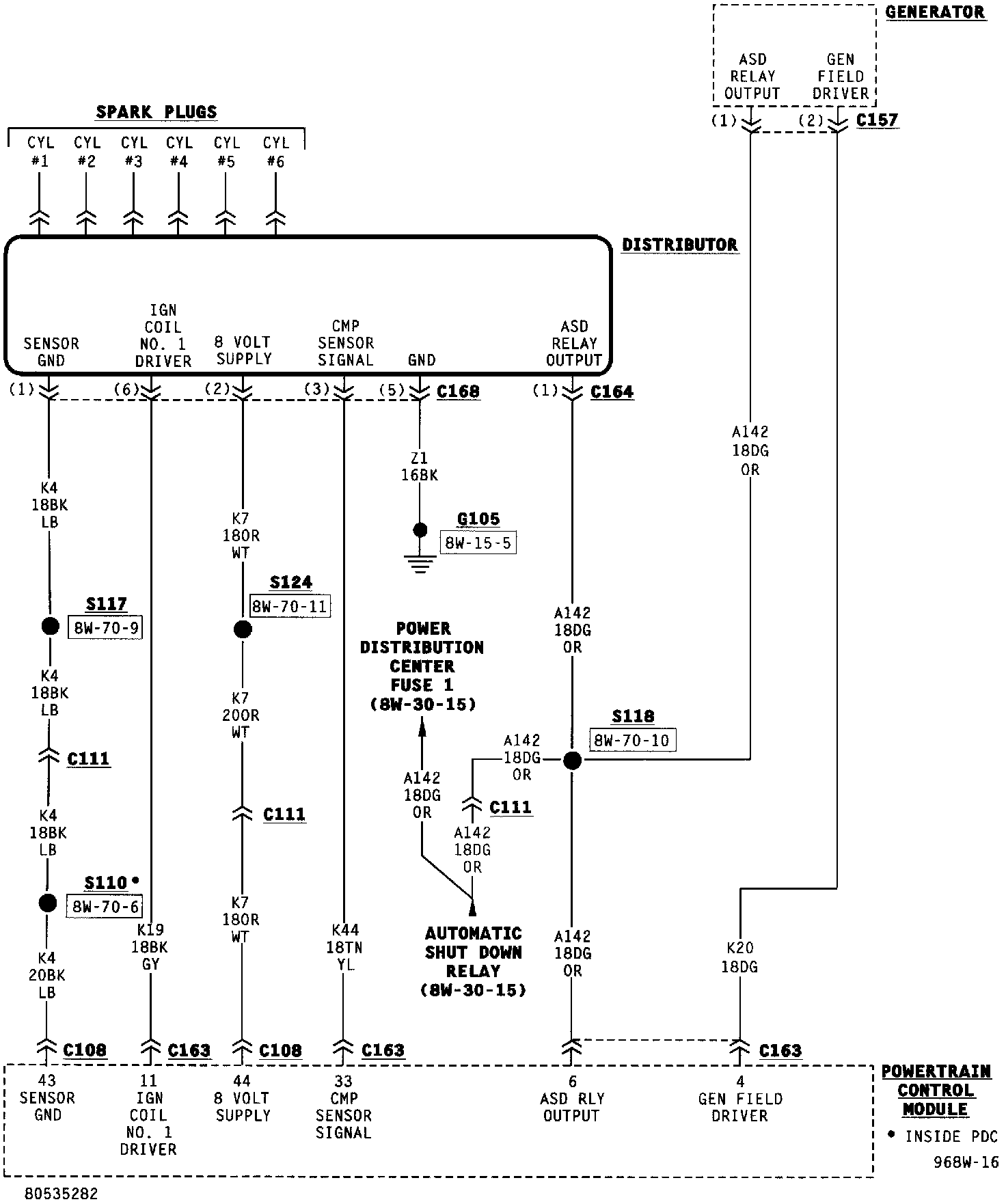

Fuel/Ignition Systems:

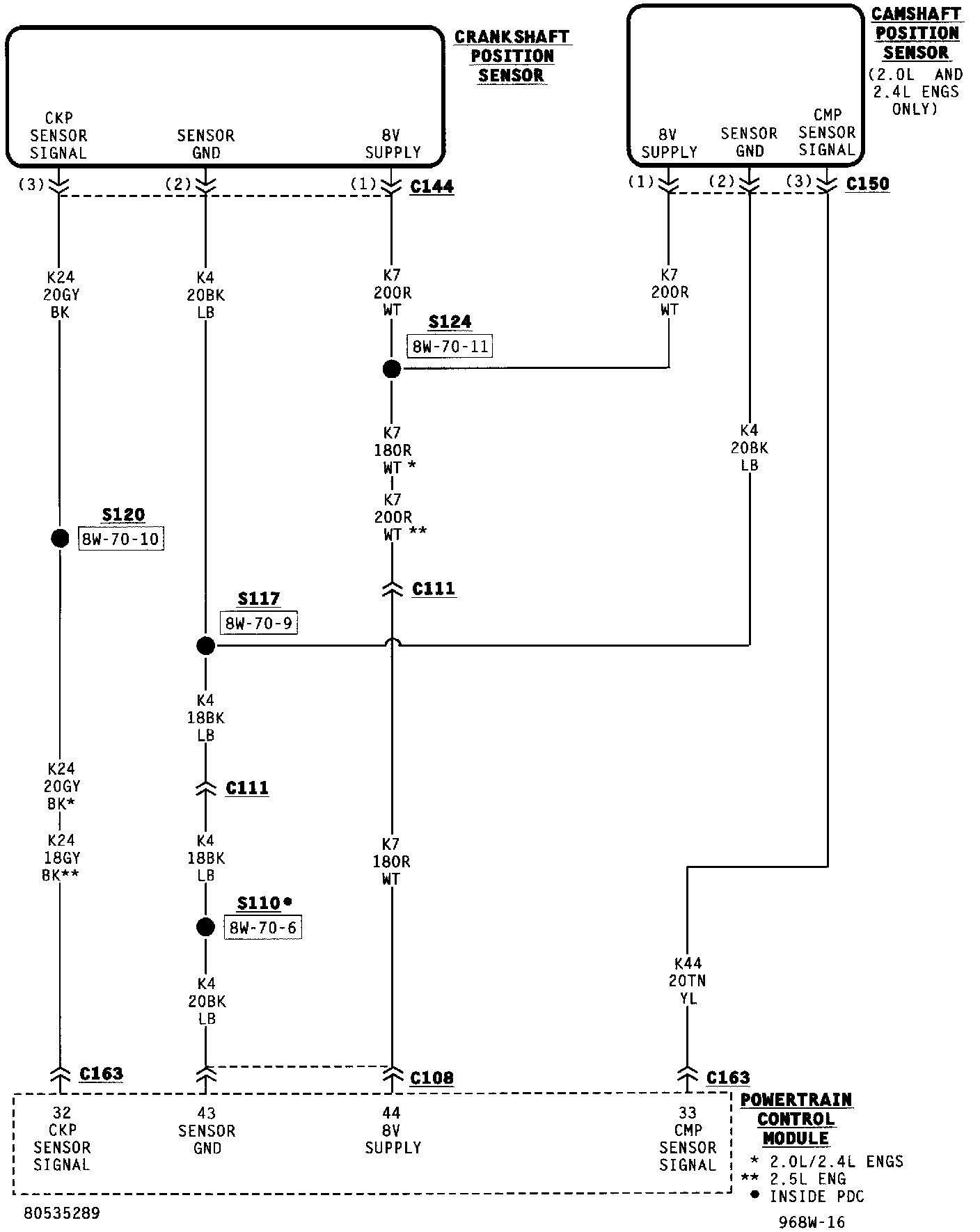

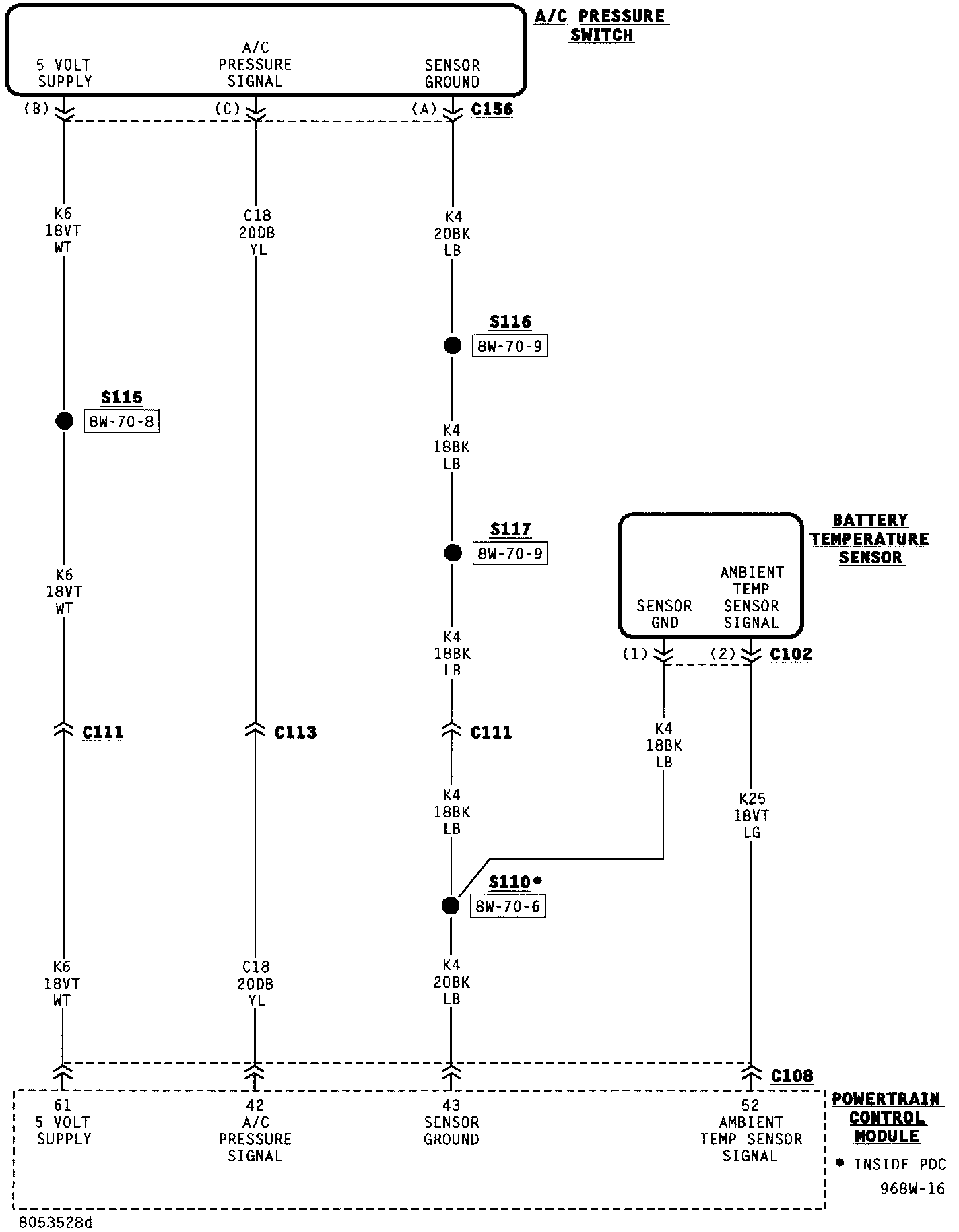

Fuel/Ignition Systems:

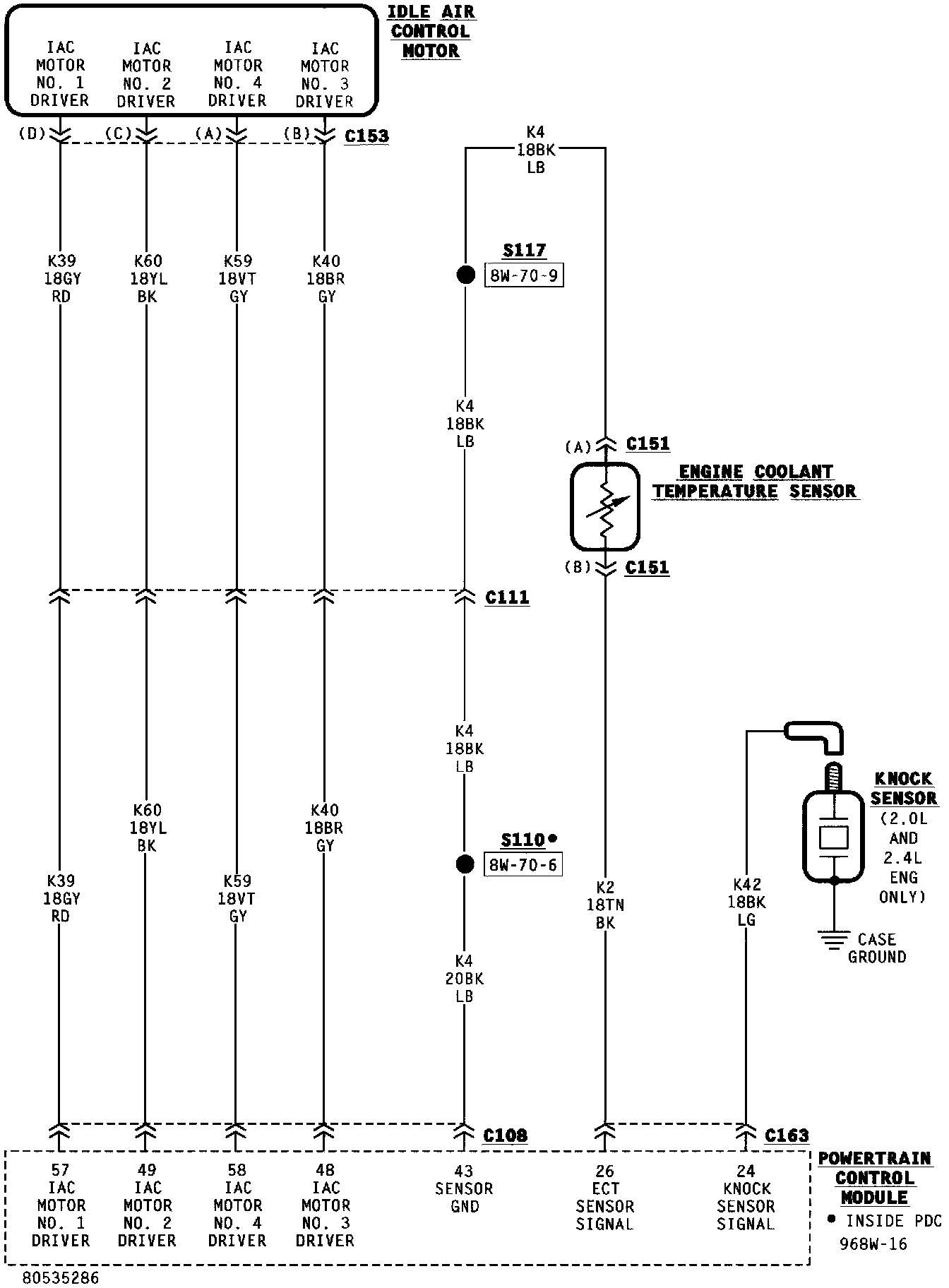

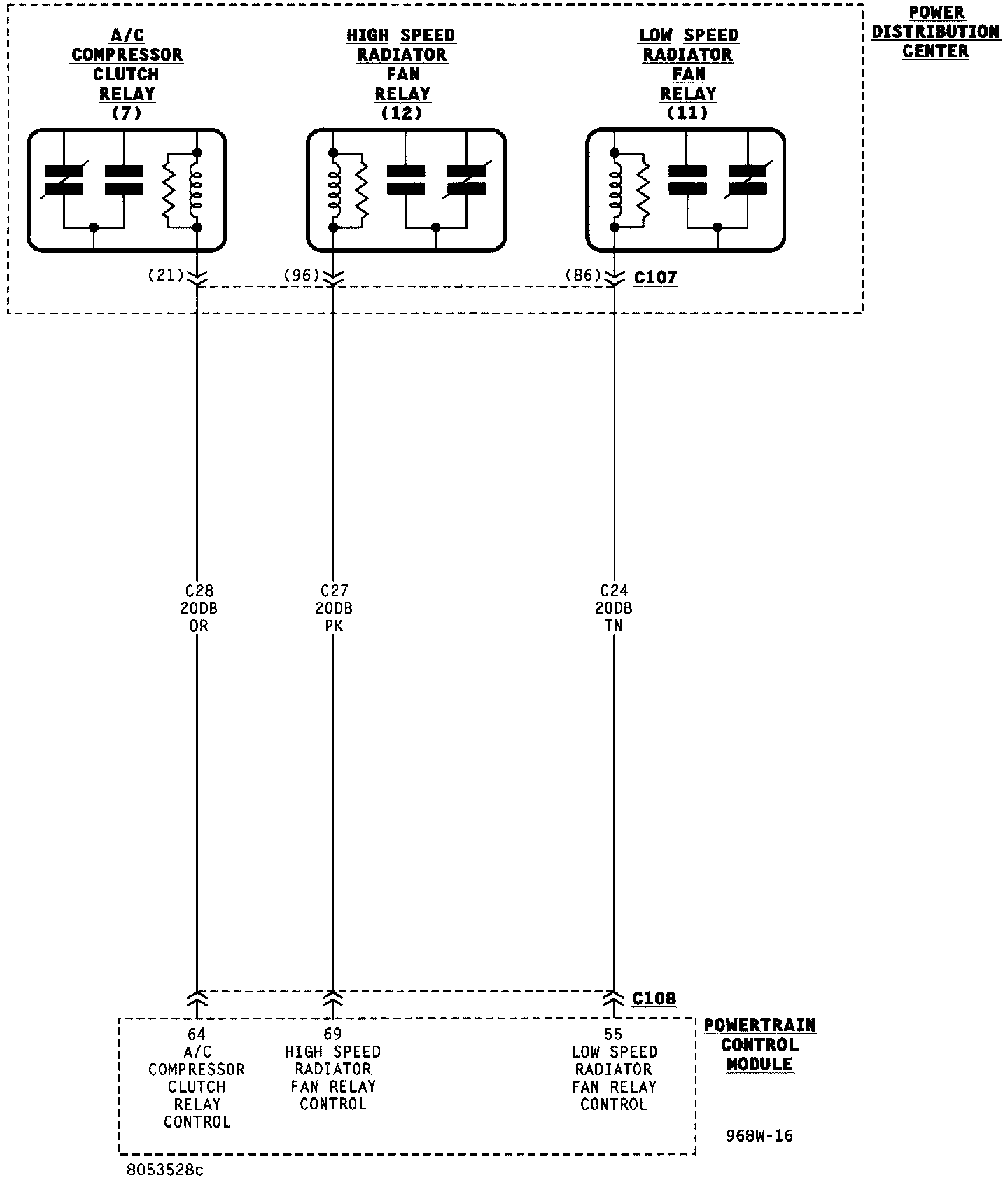

Fuel/Ignition Systems:

Fuel/Ignition Systems:

Fuel/Ignition Systems:

Fuel/Ignition Systems:

Fuel/Ignition Systems:

Fuel/Ignition Systems:

Fuel/Ignition Systems:

Fuel/Ignition Systems:

Fuel/Ignition Systems:

Fuel/Ignition Systems:

NOTE: To view sheets referred to in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
