Home
>>
Dodge
>>
1996
>>
Stratus V6-2.5L SOHC 24 Valve
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Complete Body and Chassis Connector Views
>>
Sheet 8W-80-33
Sheet 8W-80-33

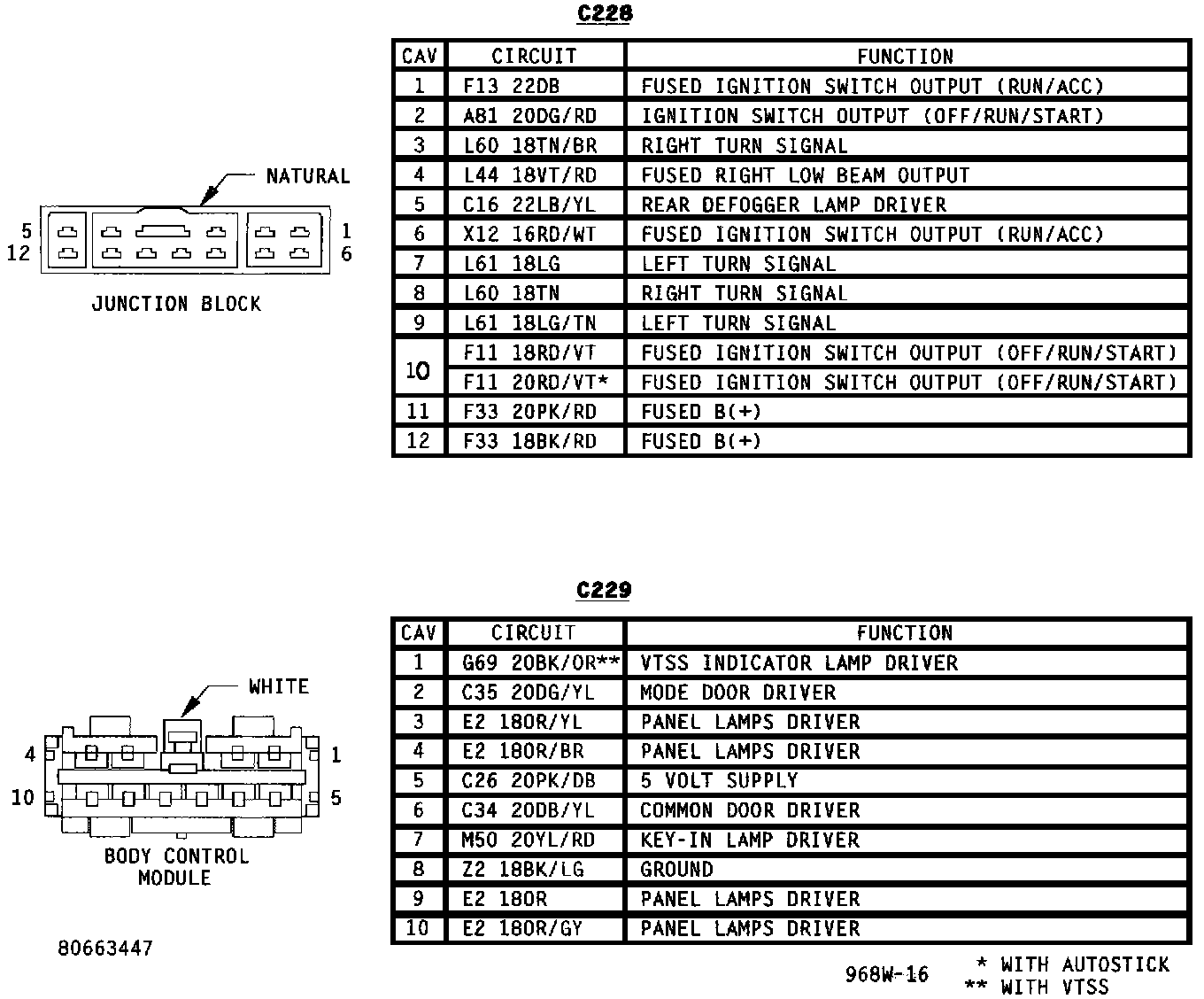

Connector Pin Outs (Part 30 Of 47):
