Stratus V6-2.5L SOHC 24 Valve
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Complete Body and Chassis Connector Views
>>
Sheet 8W-80-15
Sheet 8W-80-15

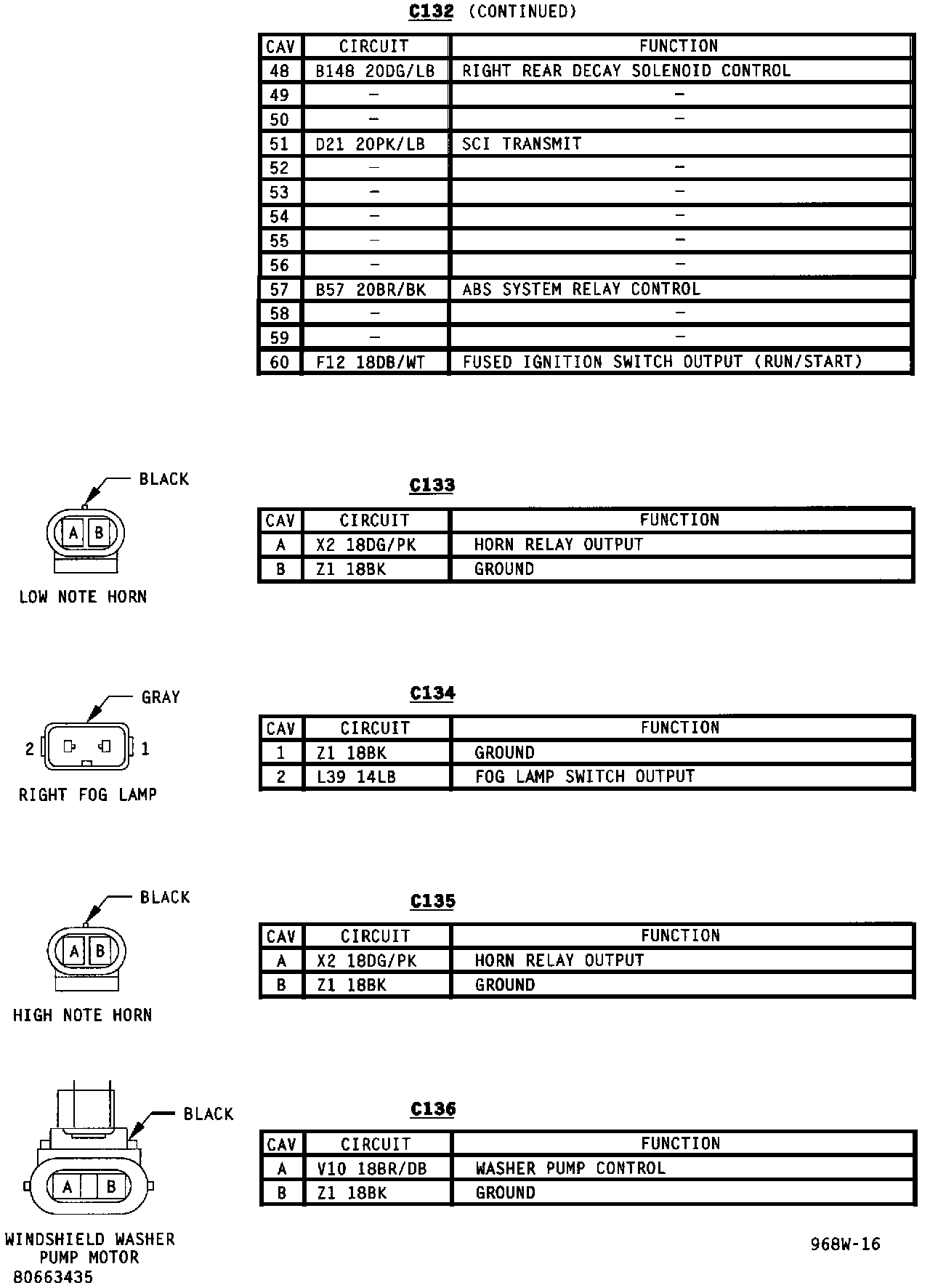

Connector Pin Outs (Part 12 Of 47):
