Home >> Dodge >> 1996 >> Stealth V6-2972cc 3.0L SOHC >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - HVAC >> Compressor Clutch Relay >> Locations

Compressor Clutch Relay: Locations

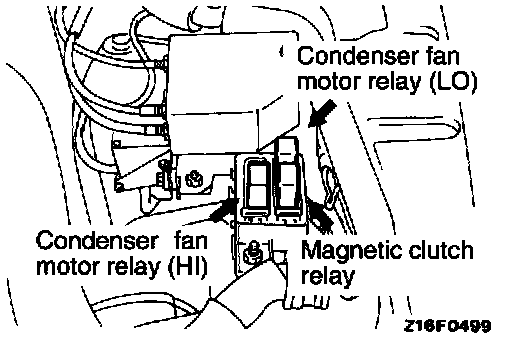

Magnetic Clutch Relay And Condenser Fan Motor Relay (HI & LO):
