Ignition Coil: Testing and Inspection

Ignition Coil:

Primary Coil Resistance

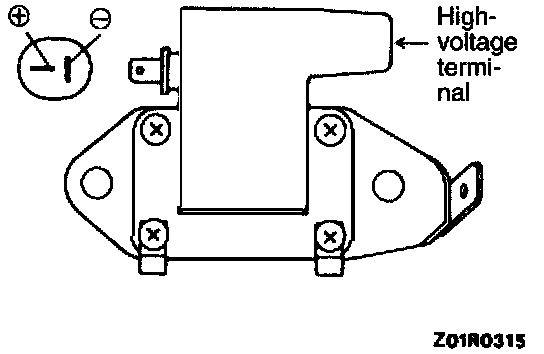

Measure the resistance of the positive (+) terminal and negative (-) terminal of the ignition coil.
Standard value: 0.72 - 0.88 Ohm.

Secondary Coil Resistance
Measure the resistance of the positive (+) terminal and the high-voltage terminal.
Standard value: 10.29 - 13.92 K-Ohm.
