Stealth V6-2972cc 3.0L SOHC
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>
B Connectors - Engine And Transaxle Harness
B Connectors - Engine And Transaxle Harness

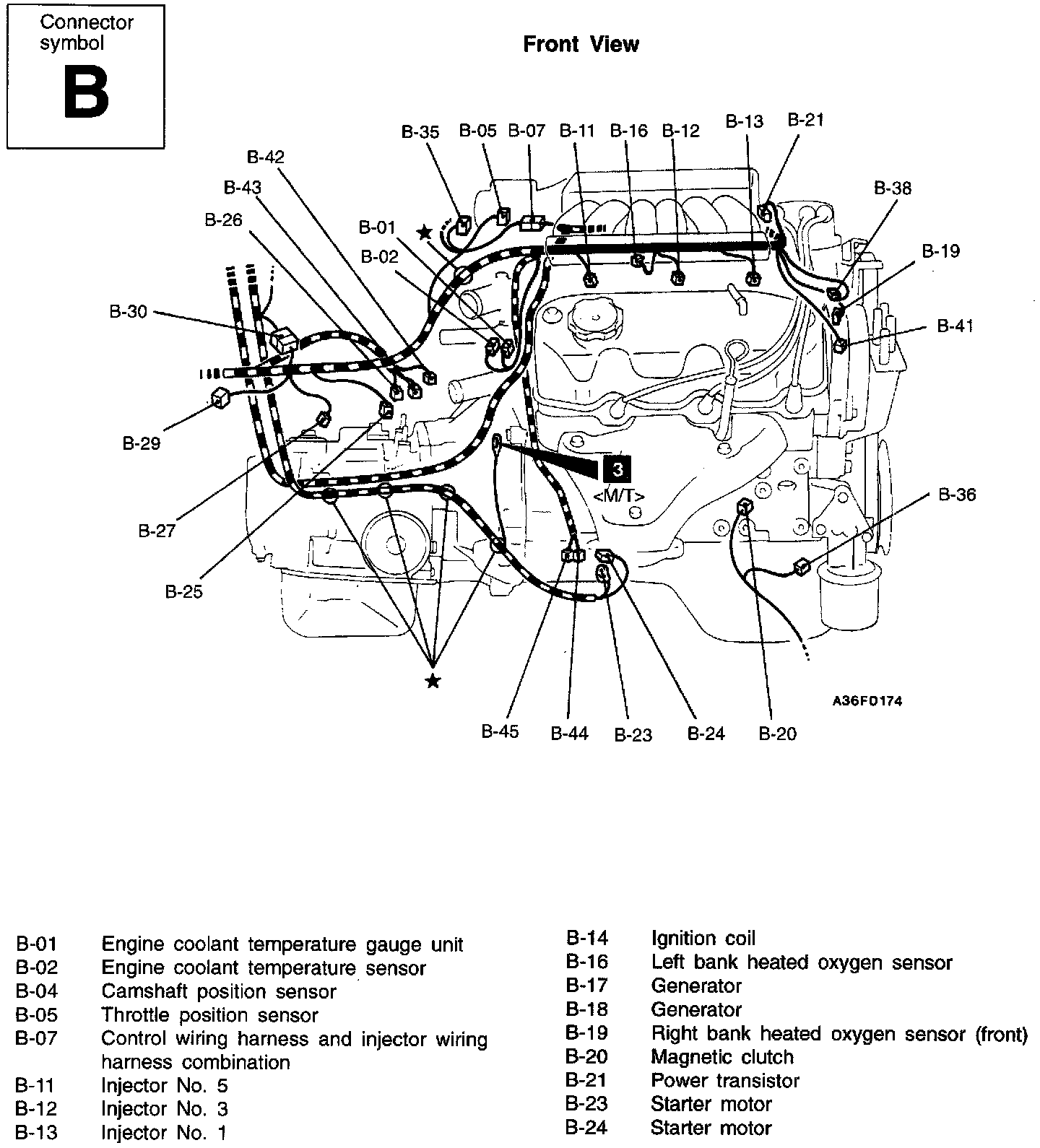

B Connectors - Engine And Transaxle (Part 1 Of 2):

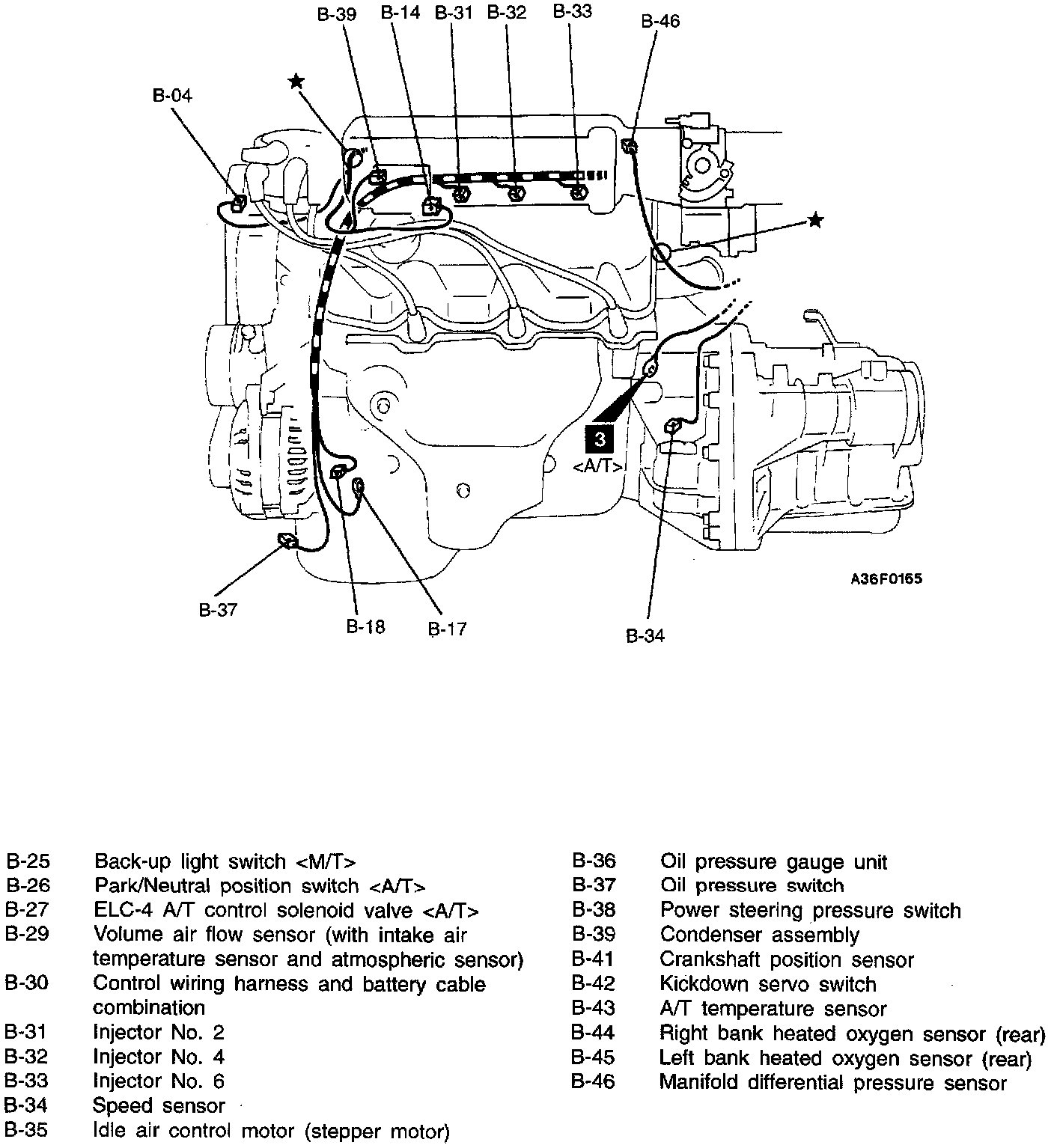

B Connectors - Engine And Transaxle (Part 2 Of 2):
