Vehicles With Large Bumper

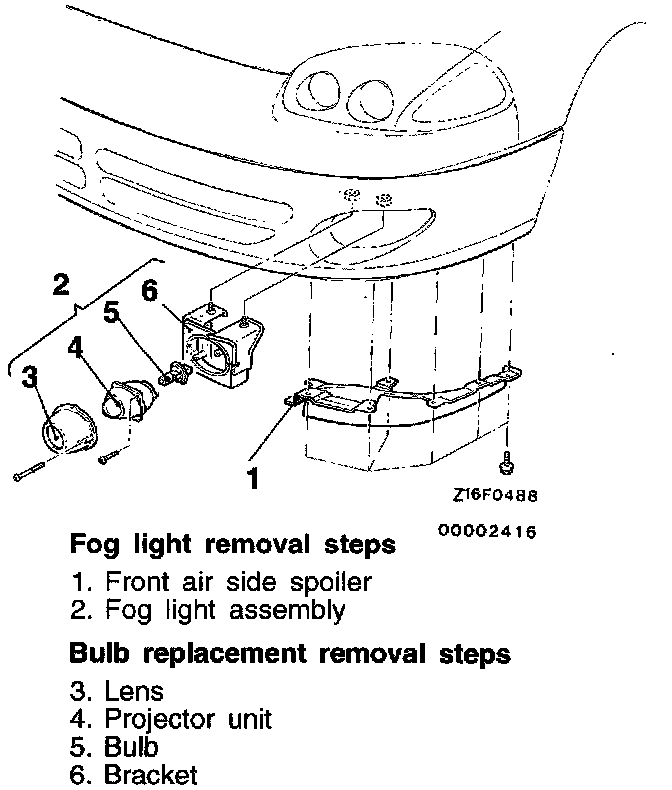

Fog Light - Removal And Installation:

REMOVE
Fog Light
1. Front air side spoiler
2. Fog light assembly

Bulb Replacement
3. Lens
4. Projector unit
5. Bulb
6. Bracket

INSTALL
Fog Light
1. Fog light assembly
2. Front air side spoiler

Bulb Replacement
3. Bracket
4. Bulb
5. Projector unit
6. Lens
