Home
>>
Dodge
>>
1996
>>
Stealth V6-2972cc 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seat Belt Systems
>>
System Diagram
System Diagram

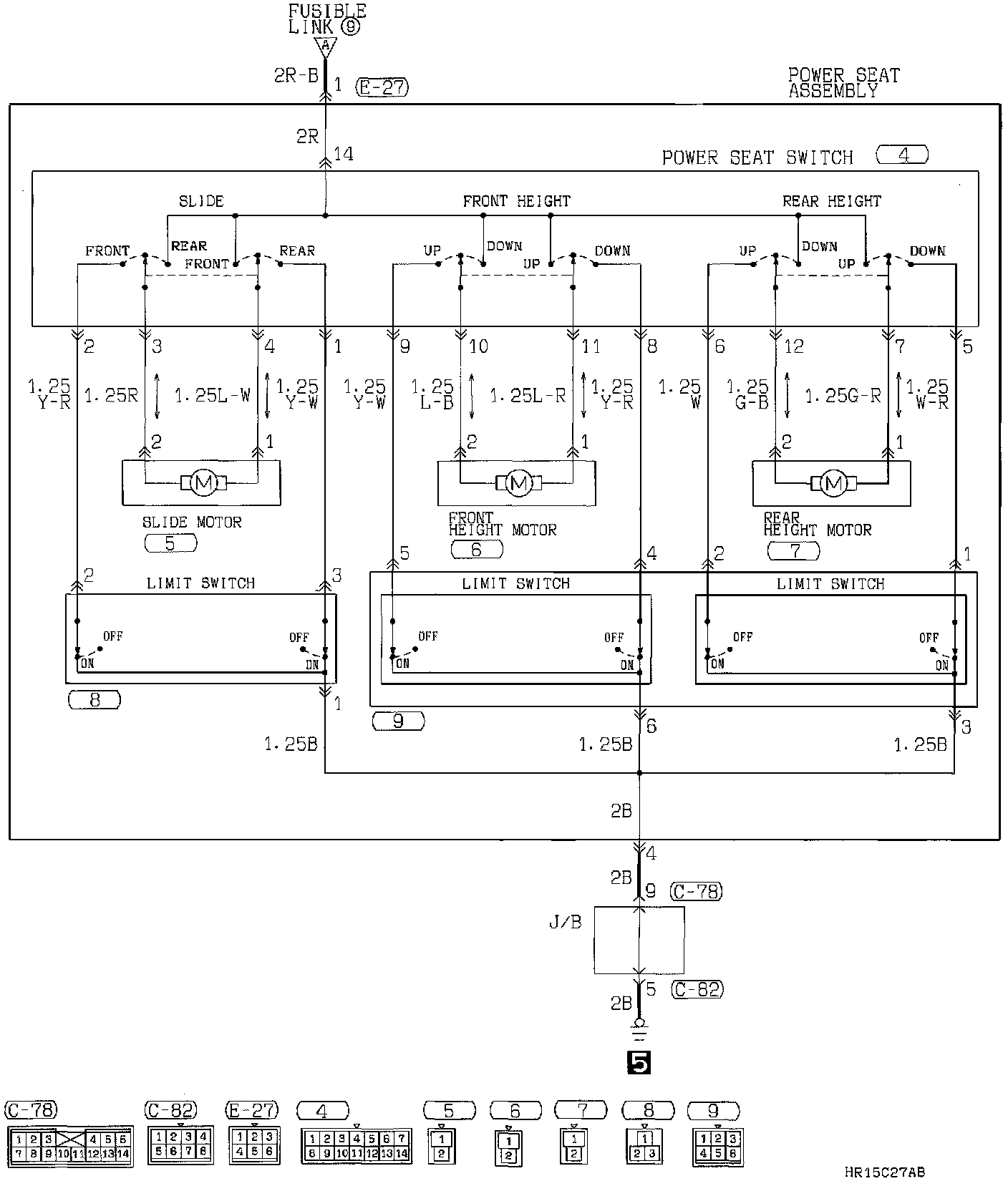

Power Seat Circuit (Part 1 Of 2):
Power Seat Circuit (Part 2 Of 2):
