Dodge
>>
1996
>>
Stealth V6-2972cc 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
>>
With Automatic Transmission
With Automatic Transmission

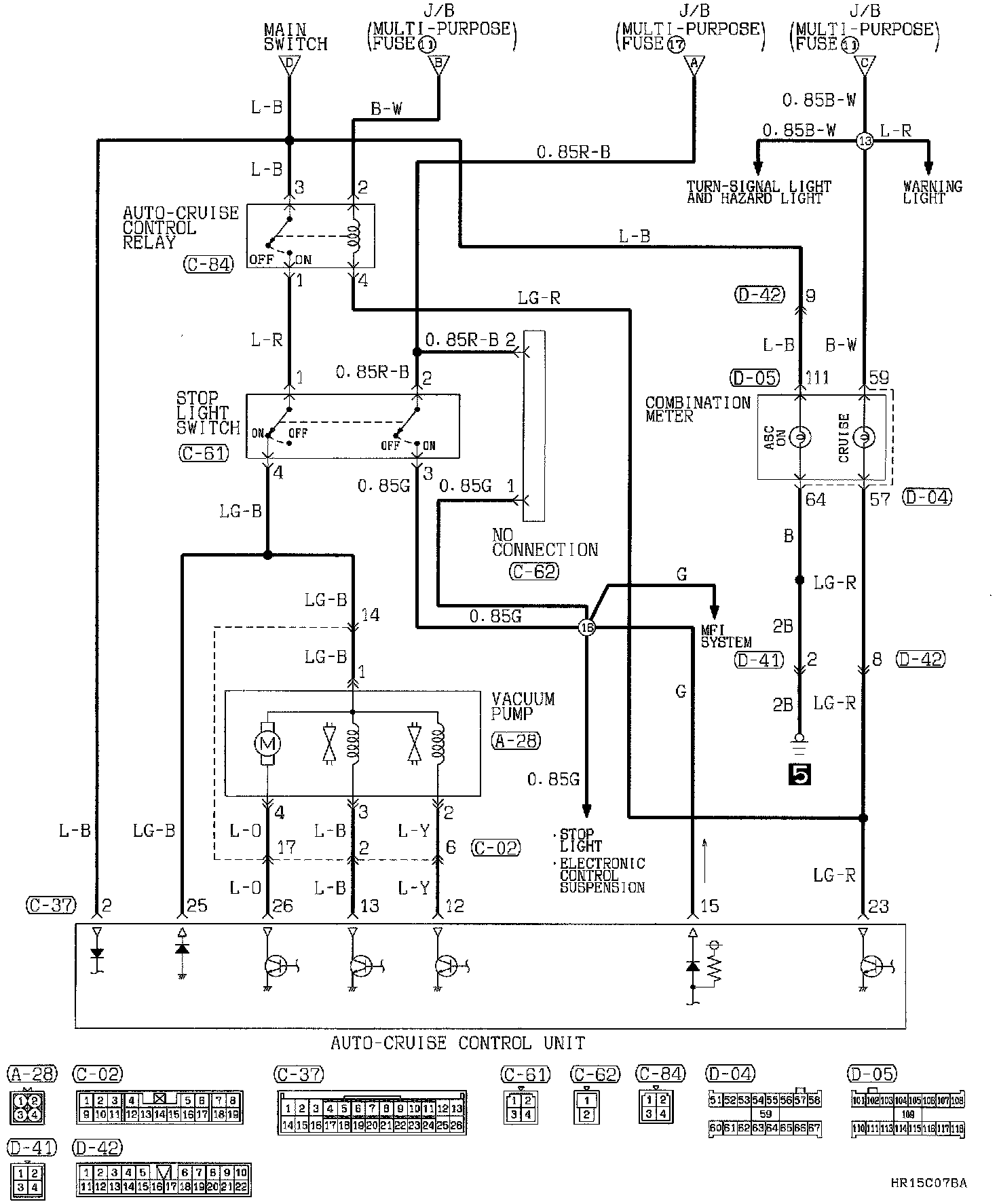

Auto Cruise Control Circuit (Part 1 Of 4):

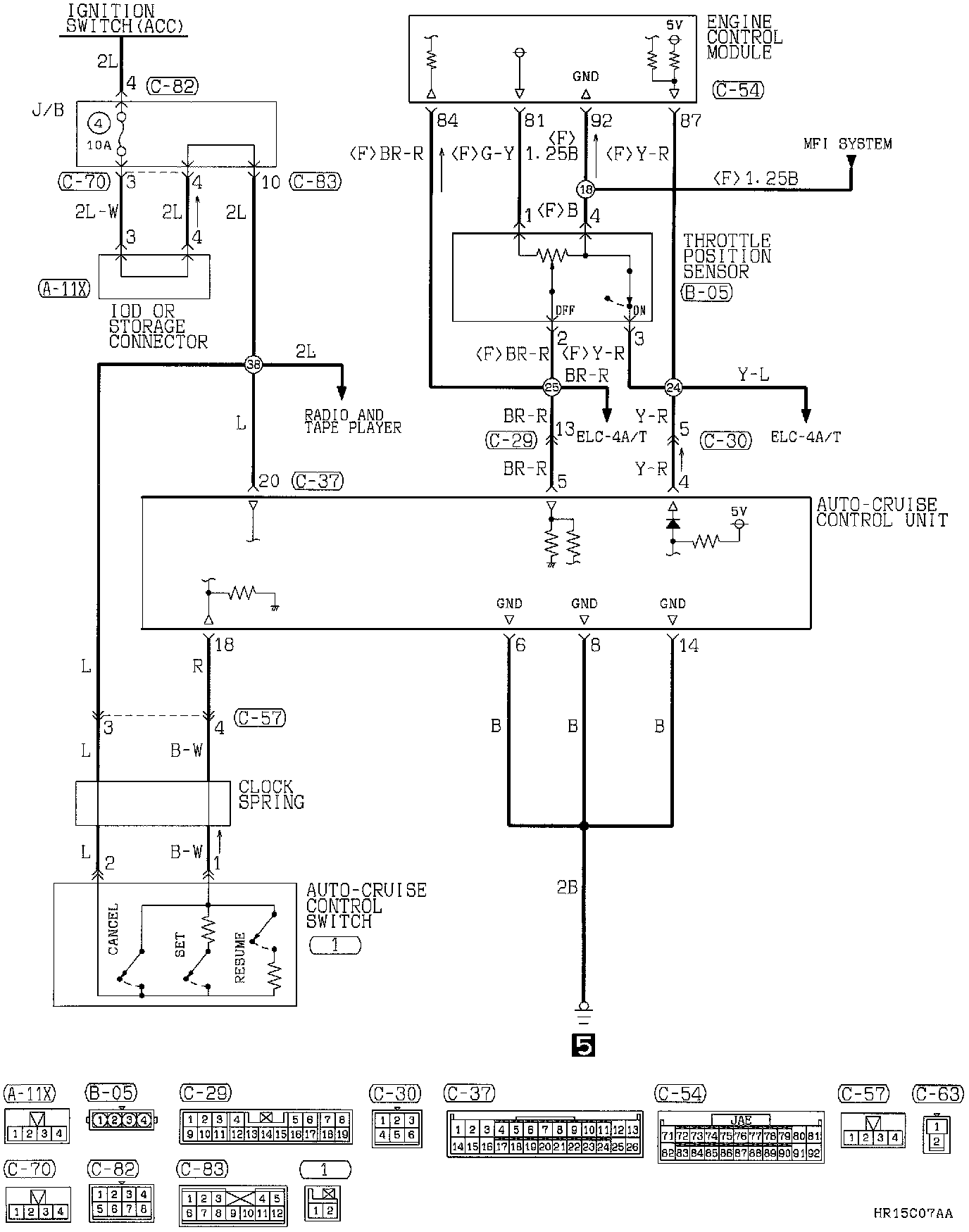

Auto Cruise Control Circuit (Part 2 Of 4):
Auto Cruise Control Circuit (Part 3 Of 4):
Auto Cruise Control Circuit (Part 4 Of 4):
