Home >> Dodge >> 1996 >> Stealth V6-2972cc 3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Control Module, A/T

Control Module, A/T

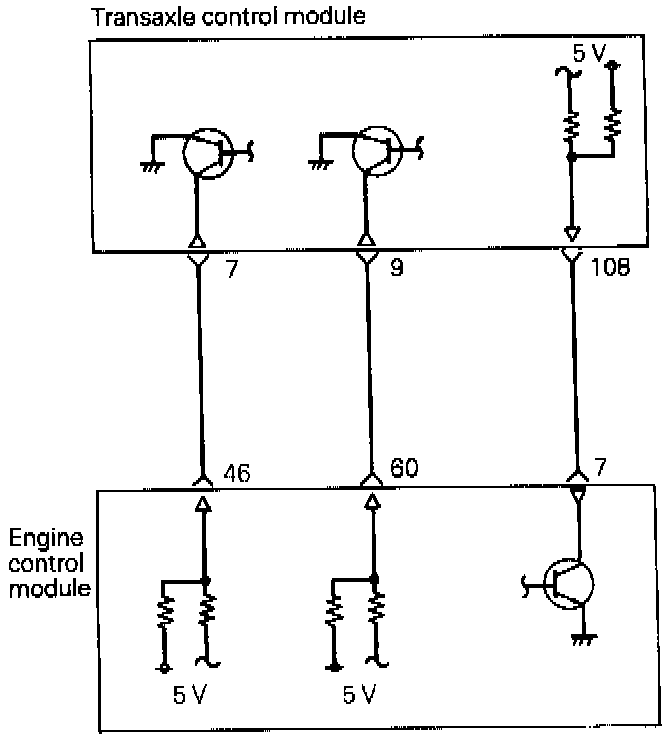

Transaxle Total Control Signal Circuit:
