Rear Bank

Fuel Injector Removal/Installation:

WARNING: Release fuel pressure prior to opening fuel system.

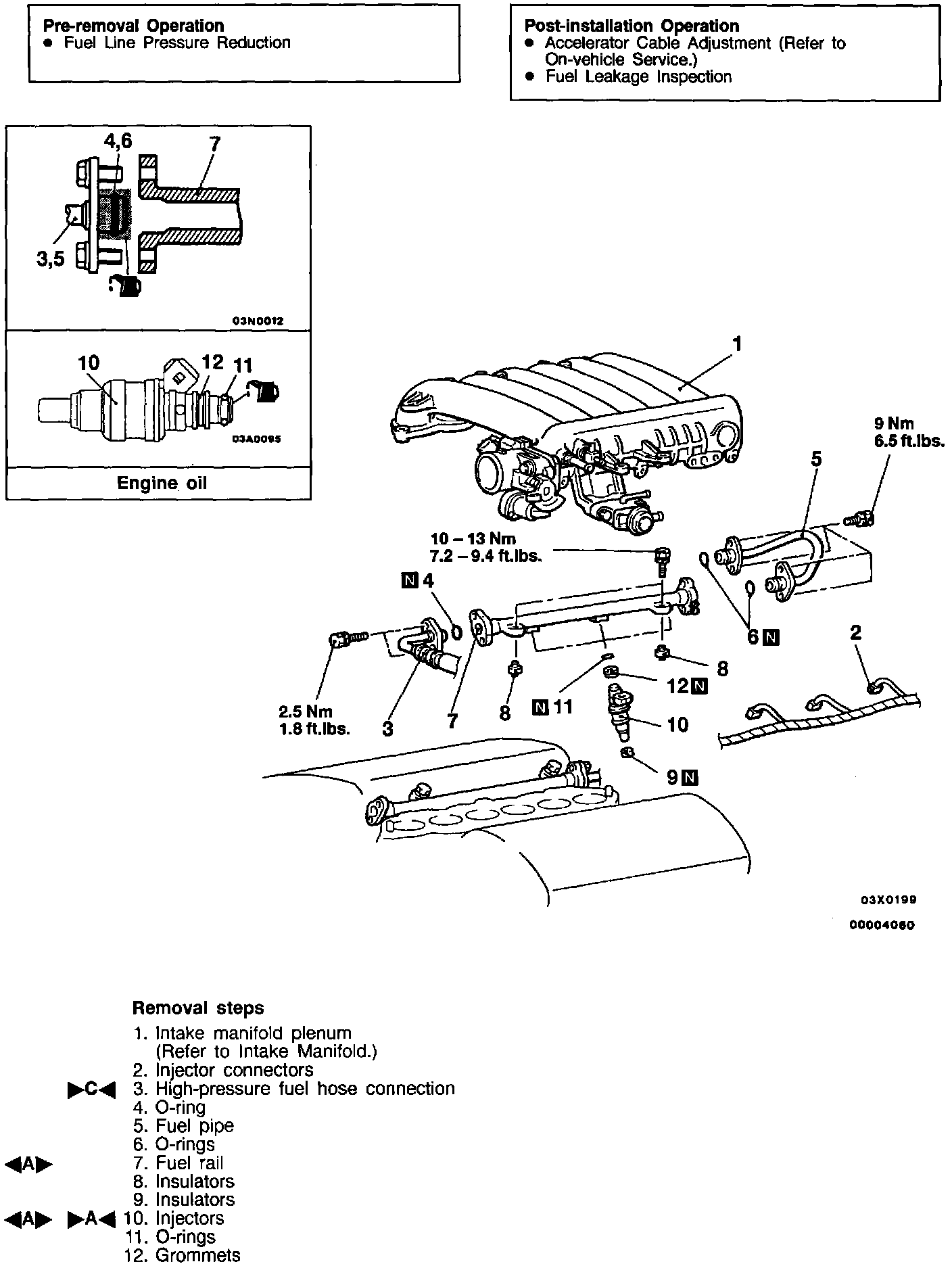

REMOVAL
1. Intake plenum
2. Injector connectors
3. High-pressure fuel hose connection
4. C-ring
5. Fuel pipe
6. 0-rings

CAUTION: Handle injectors with care in the following step -- do not drop them.

7. Fuel rail -- with injectors attached
8. Insulators
9. Insulators
10. Injectors
11. 0-rings
12. Grommets

INSTALLATION
1. Grommets

CAUTION: Handle injectors with care in the following step -- do not drop them.

2. 0-rings

Fuel Injector Installation Service Point:

3. Injectors
a. Apply a small amount of clean engine oil to the 0-ring.

CAUTION: Do not let the engine oil get into the fuel rail.

b. While turning the injector to the left and right, install it to the fuel rail.
c. Check to be sure that the injector turns smoothly. If it does not turn smoothly, the C-ring may be trapped, remove the injector and then re-insert it into the fuel rail and check once again.

4. Insulators
5. Insulators
6. Fuel rail -- with injectors attached
7. 0-rings
8. Fuel pipe
9. C-ring

High Pressure Fuel Hose Connection:

CAUTION: Do not let the engine oil get into the fuel rail during the following step.

10. High-pressure fuel hose connection
- When connecting the high pressure fuel hose to the fuel rail, apply a small amount of clean engine oil to the hose union, and then insert -- being careful not to damage the 0-ring.

11. Injector connectors
12. Intake plenum
13. Adjust accelerator cable
14. Pressurize system and check for leaks
