Transmission Range Sensor/Switch Inspection Procedures
>>

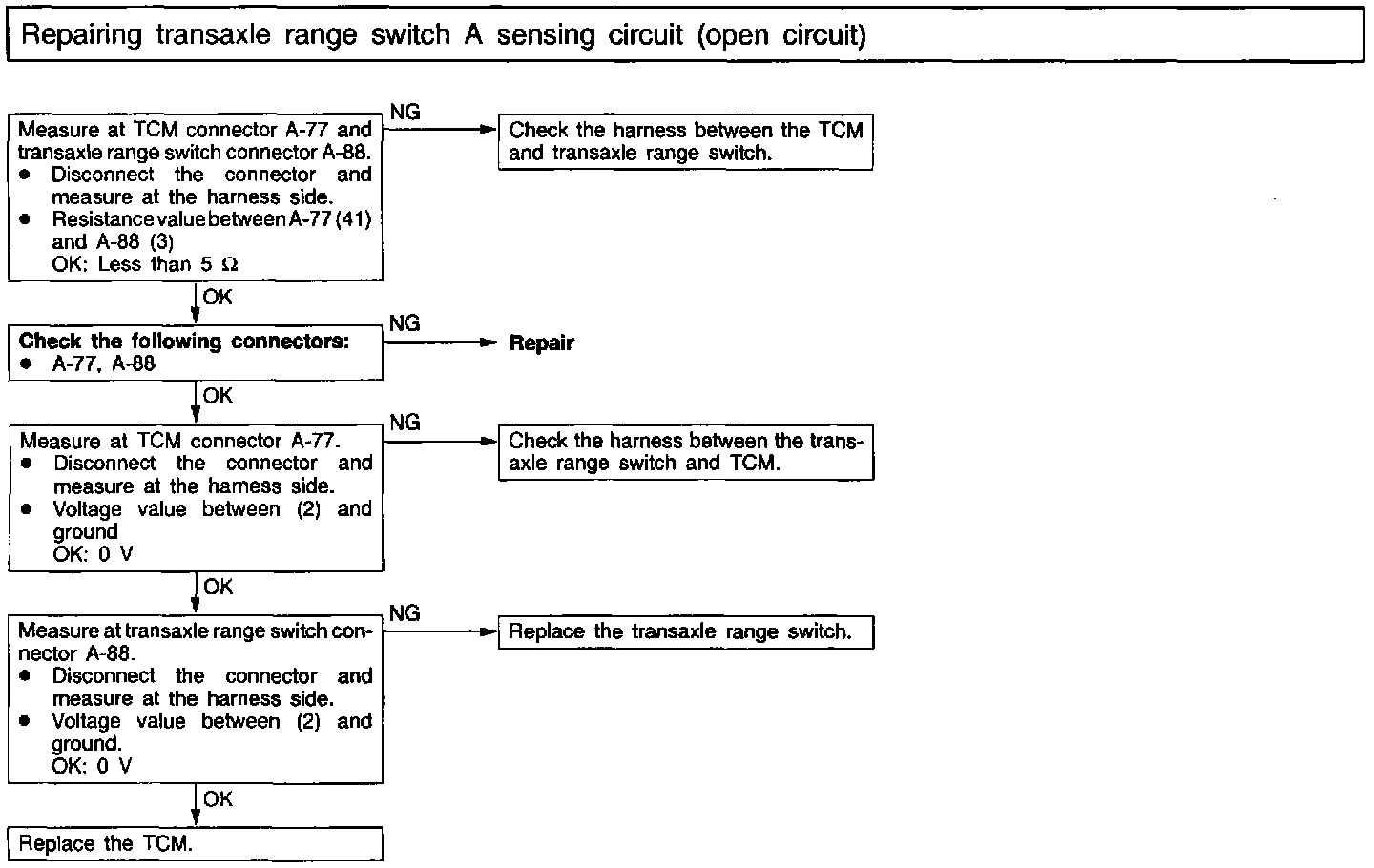

Inspection 1 Transaxle Range Switch A Sensing Open Circuit
Inspection 1 Transaxle Range Switch A Sensing Open Circuit
Inspection Procedure 1:
