Dissassembly

REAR CLUTCH ASSEMBLY

Disassembly steps

1. Seal ring
2. Input shaft
3. O-ring
4. Snap ring
5. Thrust race
6. Seal ring
7. Snap ring
8. Clutch reaction plate
9. Clutch disc
10. Clutch plate
11. Clutch pressure plate
12. Wave spring
13. Snap ring
14. Return spring
15. Rear clutch piston
16. D-ring
17. D-ring
18. Rear clutch retainer

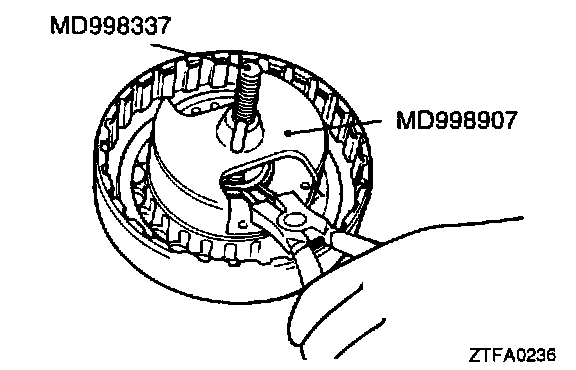

SNAP RING REMOVAL

1. Using the special tool, compress the return spring.
2. Using the snap ring pliers, remove the snap ring.
