Dissassembly

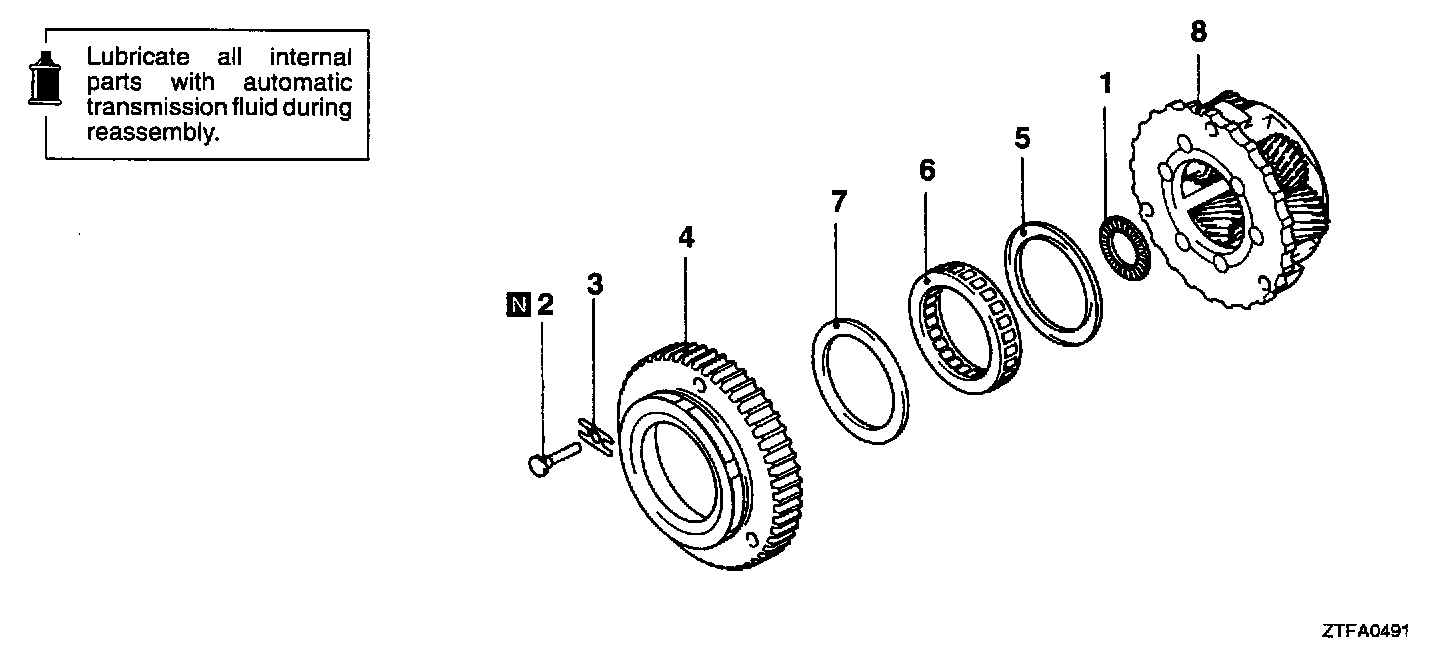

Disassembly steps

1. Thrust bearing
2. Rivet
3. Waved washer
4. One-way clutch outer race
5. End plate
6. One-way clutch
7. End plate
8. Planet carrier




RIVET REMOVAL

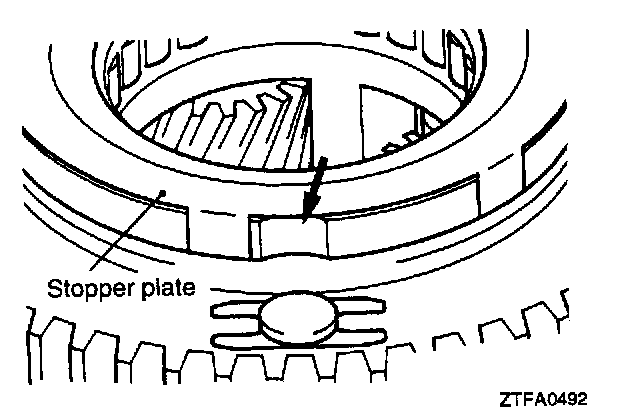

1. Shift the stopper plate to ensure that the rivet head does not hit it.

NOTE: Make sure that the stopper plate claw is not located at the groove in the one-way clutch outer race.

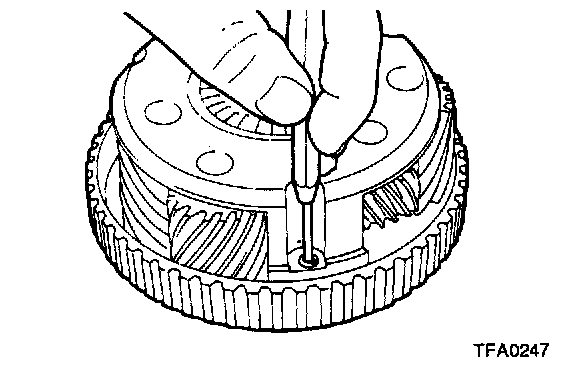

2. Using a pin punch, drive out the rivet.
