Low - Reverse Brake
Low - Reverse Brake

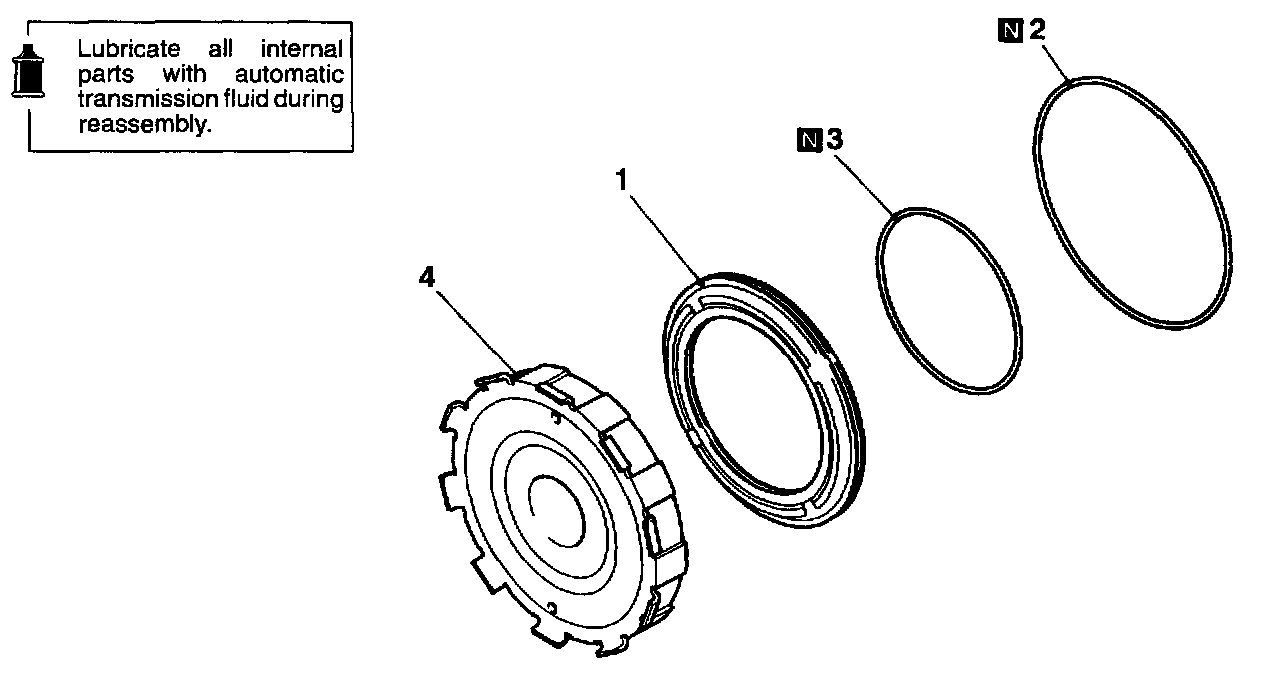

Disassembly Steps
1.
Low-reverse brake piston
2.
D-ring
3.
D-ring
4.
Center support
