Disassembly

END CLUTCH ASSEMBLY

Disassembly steps

1. Seal ring
2. Snap ring
3. Clutch reaction plate
4. Clutch disc
5. Clutch plate
6. Snap ring
7. Washer
8. Return spring
9. End clutch piston
10. Oil seal
11. D-ring
12. End clutch retainer
13. Oil seal

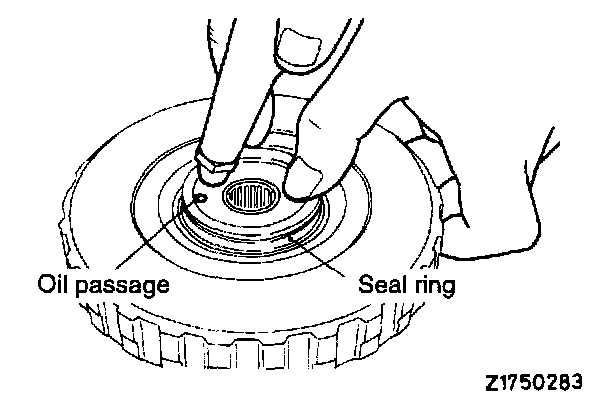

END CLUTCH PISTON REMOVAL

Remove the piston. If it is hard to remove, place the retainer on the workbench with piston side down and blow air through the oil passage in the back of retainer.
