Assembly

SNAP RING INSTALLATION

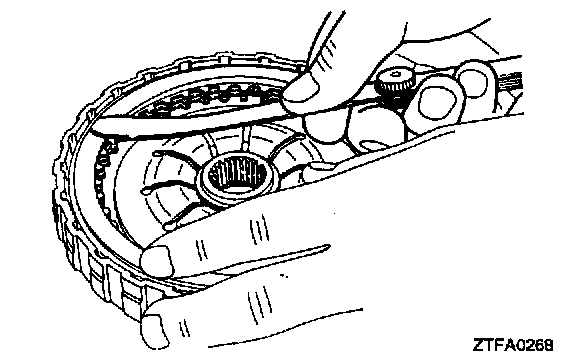

Using the special tool, fit the snap ring.

Caution: Make sure that the snap ring is fitted in position in the groove.




SNAP RING SELECTION

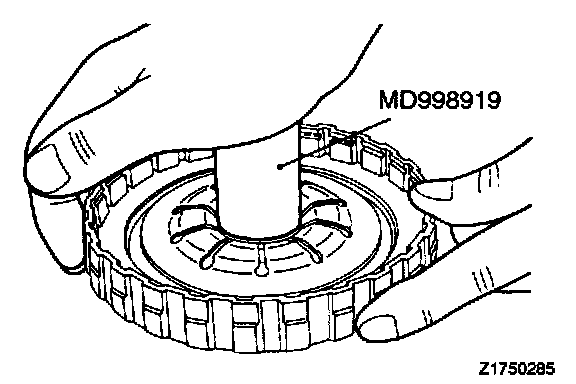

After the snap ring has been installed, check to see if the clearance between the snap ring and clutch reaction plate is up to specification. When measuring the clearance, press the entire periphery of the clutch reaction plate with a force of 50 Nm (11 lbs.). If the clearance is out of specification, reselect the snap ring to obtain the specified clearance.

Standard value: 0.6-0.85 mm (0.024-0.0335 in.)
