FWD

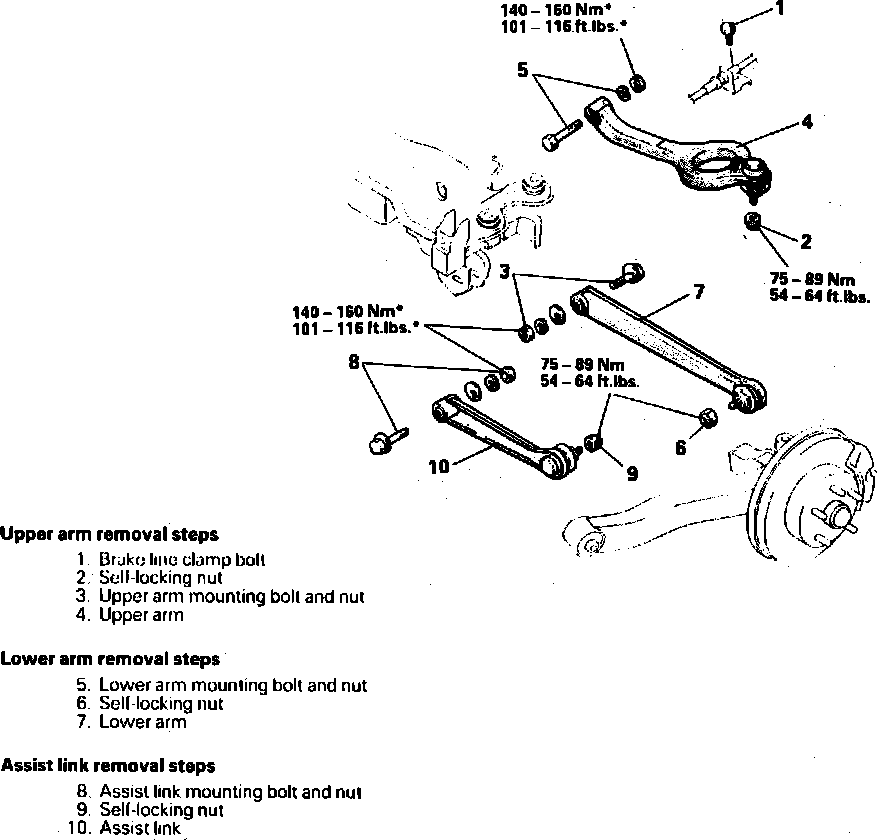

Fig. 4 Upper & Lower Control Arms & Assist Link. FWD:

1. Remove shock absorber assembly, refer to SHOCK ABSORBER.
2. Remove upper arm, lower arm and assist link as shown, noting the following:
a. Using tool No. MB990635 or equivalent, disconnect upper arm, lower arm and assist link from knuckle assembly. Suspend tool with suitable rope to prevent dropping.
b. Loosen ball joint attaching nut, do not remove.
3. Reverse procedure to install.
