Home >> Dodge >> 1994 >> Stealth V6-2972cc 3.0L SOHC >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Seat Belt Buckle Switch >> Testing and Inspection

Seat Belt Buckle Switch: Testing and Inspection





1. Disconnect the buckle switch connector.

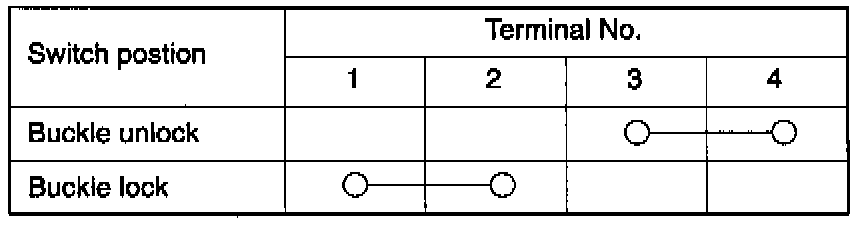

2. Check the continuity between the terminals as indicated in the chart below.
