Home
>>
Dodge
>>
1994
>>
Stealth V6-2972cc 3.0L SOHC
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Cooling System
>>
Radiator Cooling Fan Motor Relay
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

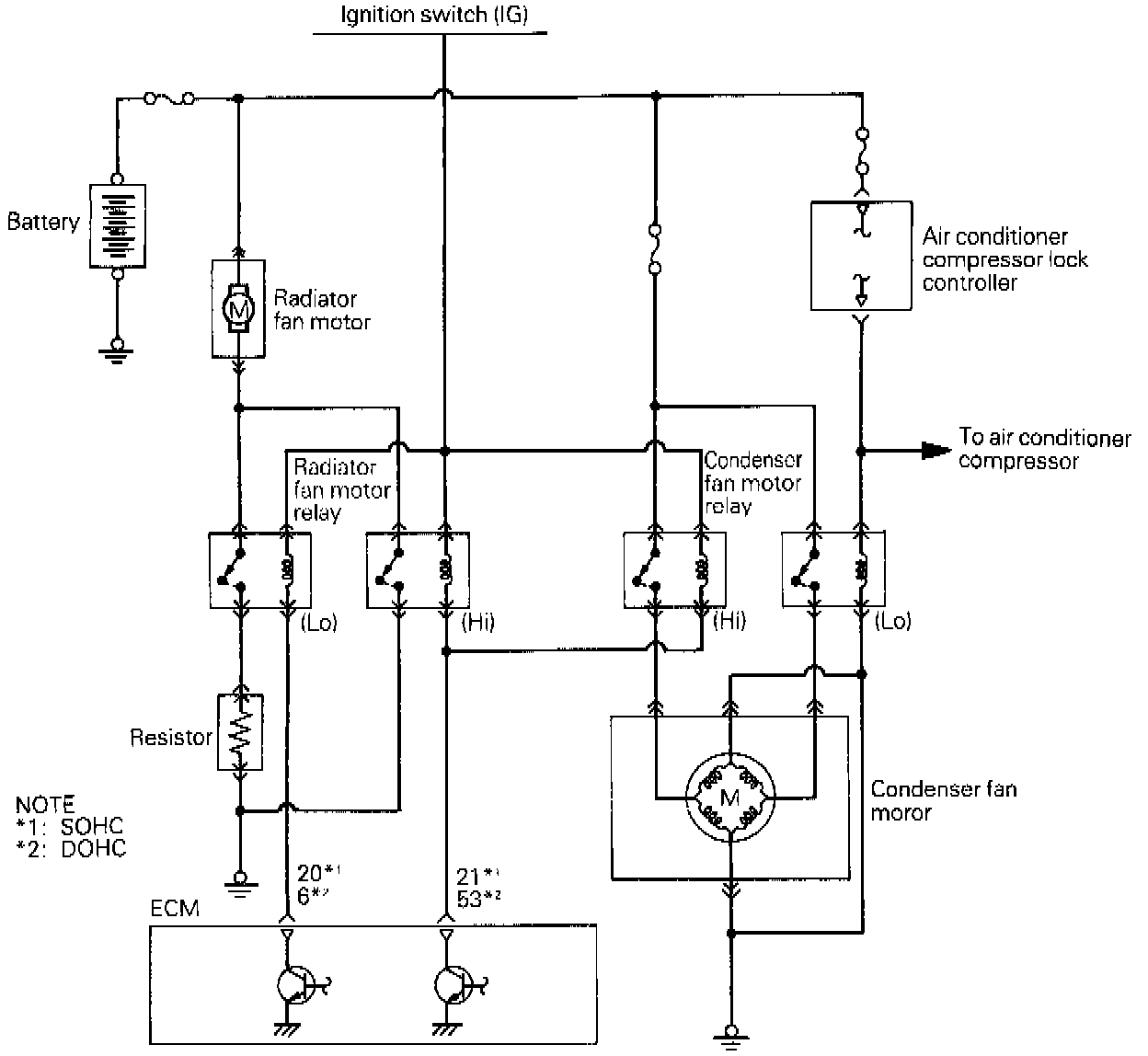

Fan Motor Relay Circuit:
