Inspection

Ignition Power Transistor:

[1][2]IGNITION POWER TRANSISTOR
NOTE:
An analog-type circuit tester should be used.

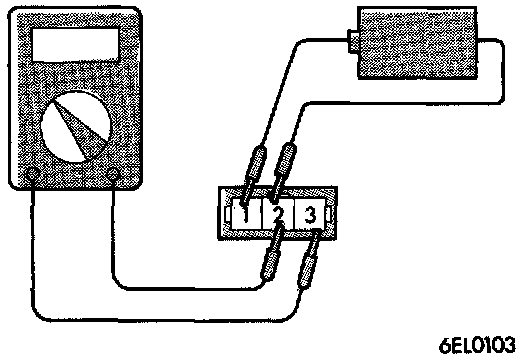

1. Connect the negative (-) terminal of the 1.5V power supply to terminal 2 of the [1][2]ignition power transistor; then check whether there is continuity between terminal 3 and terminal 2 when terminal 1 and the positive (+) terminal are connected and disconnected.
NOTE:
Connect the (-) probe of the circuit tester to terminal 3.

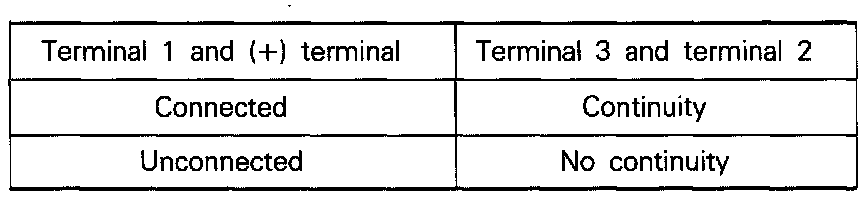

Continuity Chart

2. Replace the [1][2]ignition power transistor if there is a malfunction.

Ignition Coil:

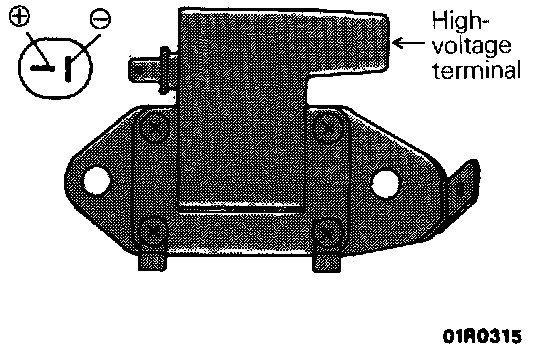

IGNITION COIL
Primary Coil Resistance
Measure the resistance of the positive (+) terminal and negative (-) terminal of the ignition coil.
Standard value: 0.72 - 0.88 Ohms

Secondary Coil Resistance
Measurethe resistance of the positive (+) terminal and the high-voltage terminal.
Standard value: 10.29 - 13.92 k-Ohms
