Keys To Diagrams

How To Read Wiring Diagrams:

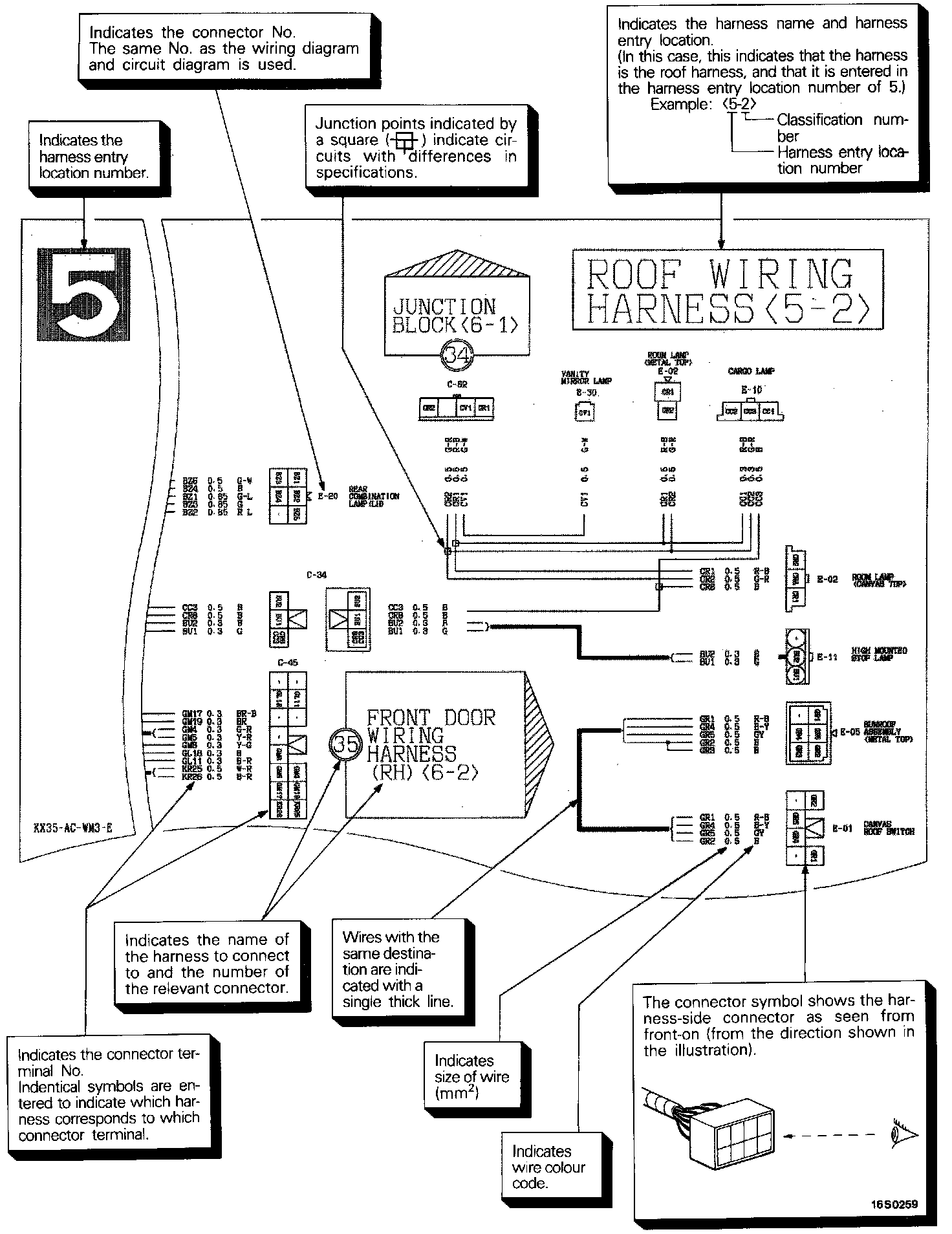

Symbol Identification And Key To Wiring Diagrams:

Symbol Identification And Key To Wiring Diagrams:
