B Connectors - Engine And Transaxle Harness

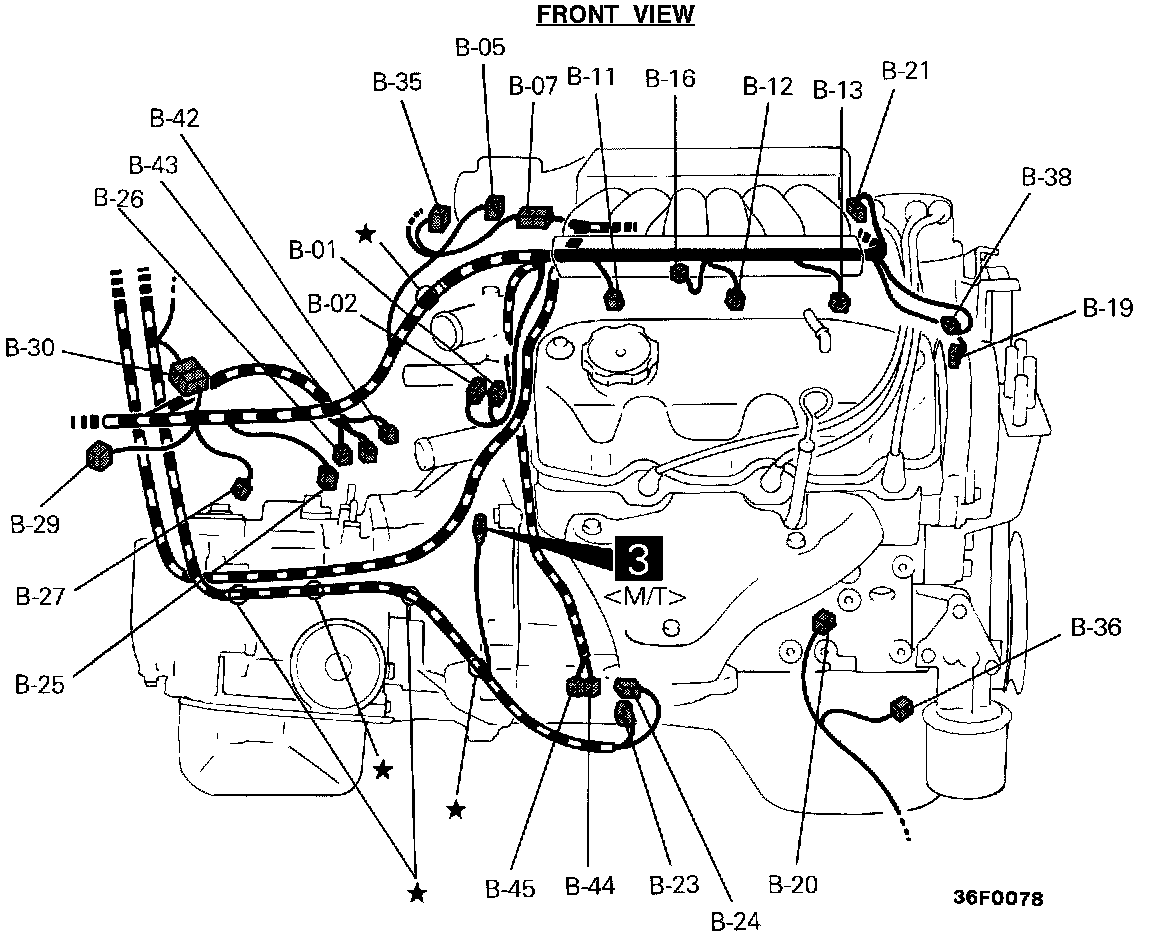

B Connectors - Engine And Transaxle <SOHC> (Part 1 Of 2):

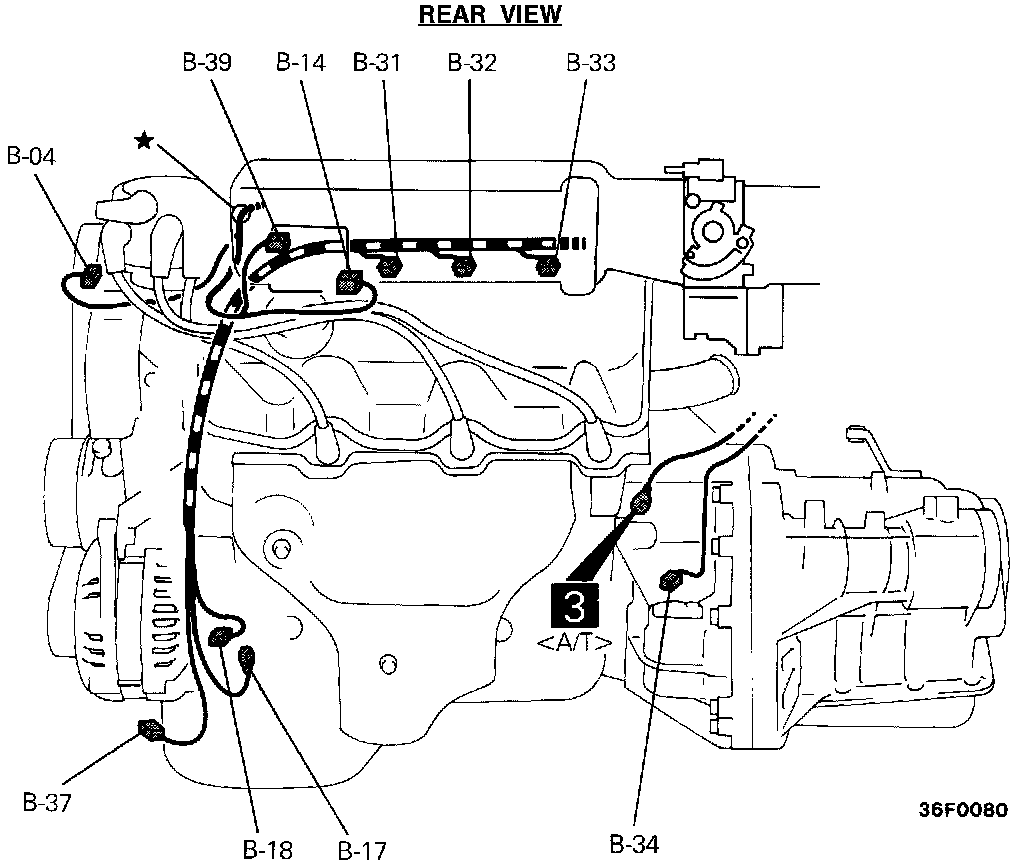

B Connectors - Engine And Transaxle <SOHC> (Part 2 Of 2):

B-O1 Engine coolant temperature gauge unit
B-02 Engine coolant temperature sensor
B-03 -
B-04 Crankshaft position sensor and camshaft position sensor
B-05 Throttle position sensor
B-06 -
B-07 Control wiring harness and injector
B-08 -
B-09 -
B-1O -
B-11 Injector No.5
B-12 Injector No.3
B-13 Injector No.1
B-14 Ignition coil
B-15 -
B-16 Left bank heated oxygen sensor (front)
B-17 Generator
B-18 Generator
B-19 Right bank heated oxygen sensor (front) wiring harness combination
B-20 Magnetic clutch
B-21 Power transistor
B-22 -
B-23 Starter motor
B-24 Starter motor
B-25 Back-up light switch
B-26 Park/Neutral position switch
B-27 ELC-4 A/T control solenoid valve
B-28 -
B-29 Volume air flow sensor (with intake air temperature sensor and atmospheric sensor)
B-30 Control wiring harness and battery cable combination
B-31 Injector No. 2
B-32 Injector No. 4
B-33 Injector No. 6
B-34 Speed sensor
B-35 Idle air control motor (stepper motor)
B-36 Oil pressure gauge unit
B-37 Oil pressure switch
B-38 Power steering pressure switch
B-39 Condenser assembly
B-40 -
B-41 -
B-42 Kickdown servo switch
B-43 A/T temperature sensor
B-44 Right bank heated oxygen sensor (rear)
B-45 Left bank heated oxygen sensor (rear)

Remarks
1. The mark "STAR" shows the standard mounting position of wiring harness.
2. For details concerning the ground point (example: [3]), refer to Grounding Locations.
3. "-" means that the connector with code-number is not used
