Manual A/C

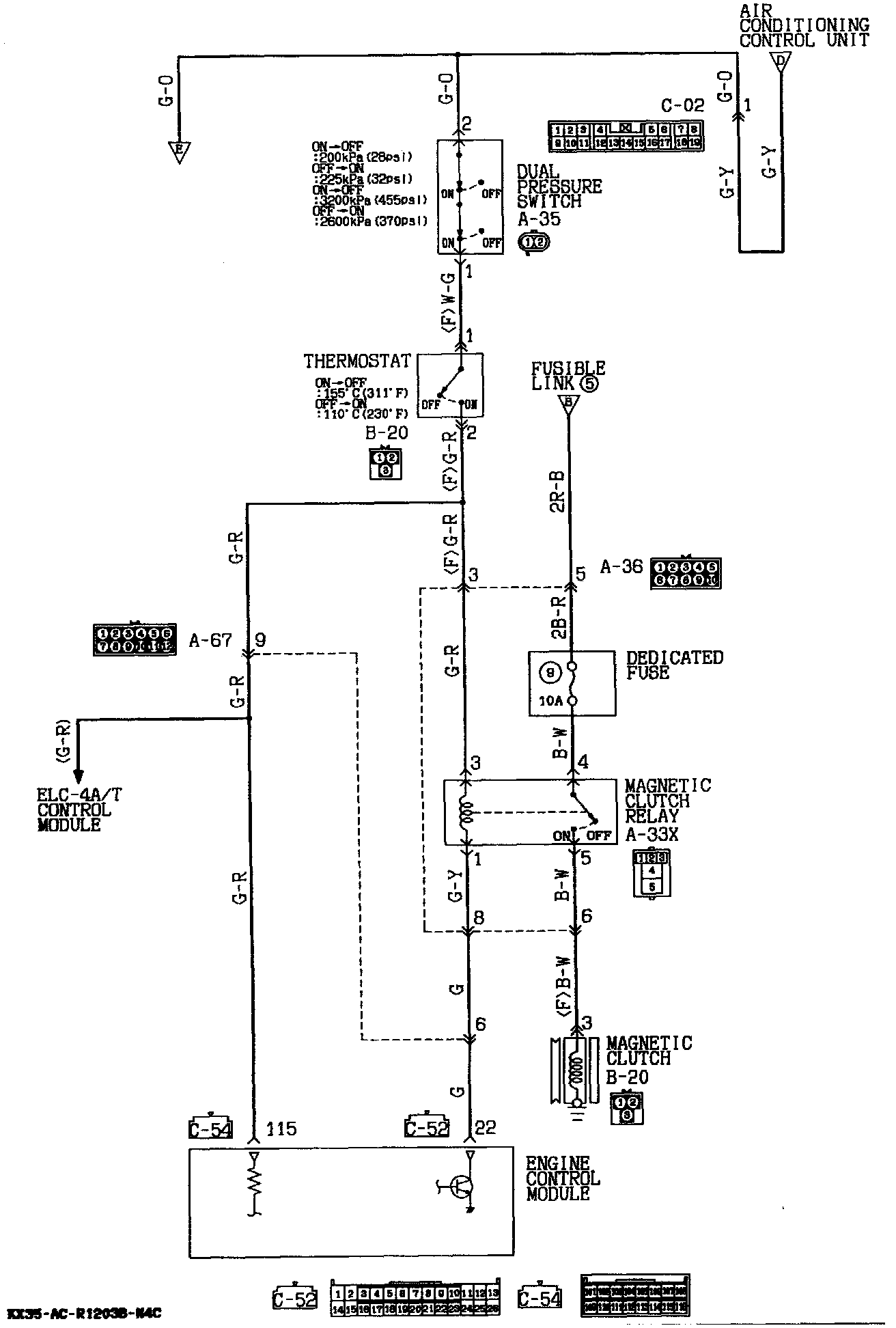

Manual A/C Circuit <SOHC> (Part 1 Of 5):

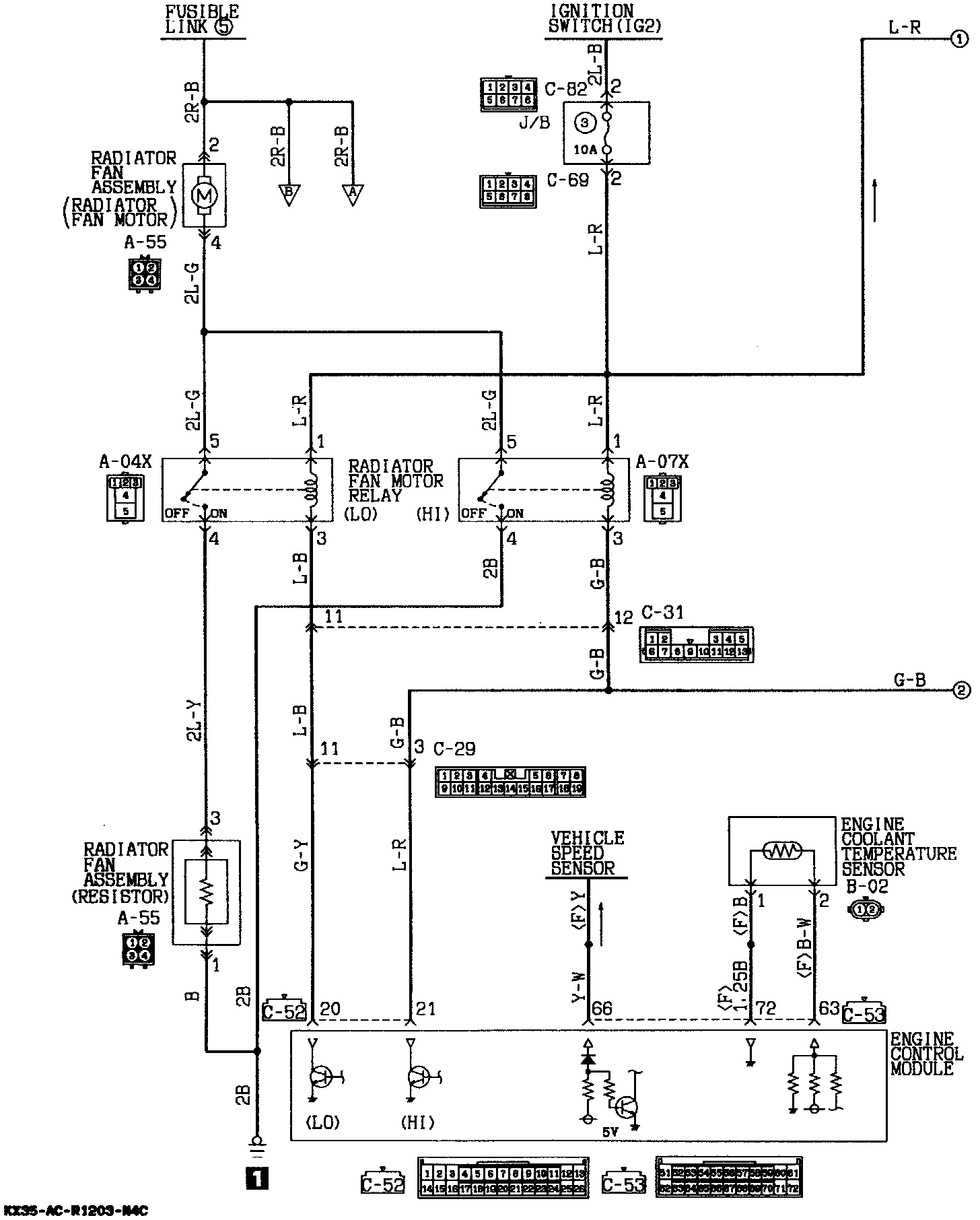

Manual A/C Circuit <SOHC> (Part 2 Of 5):

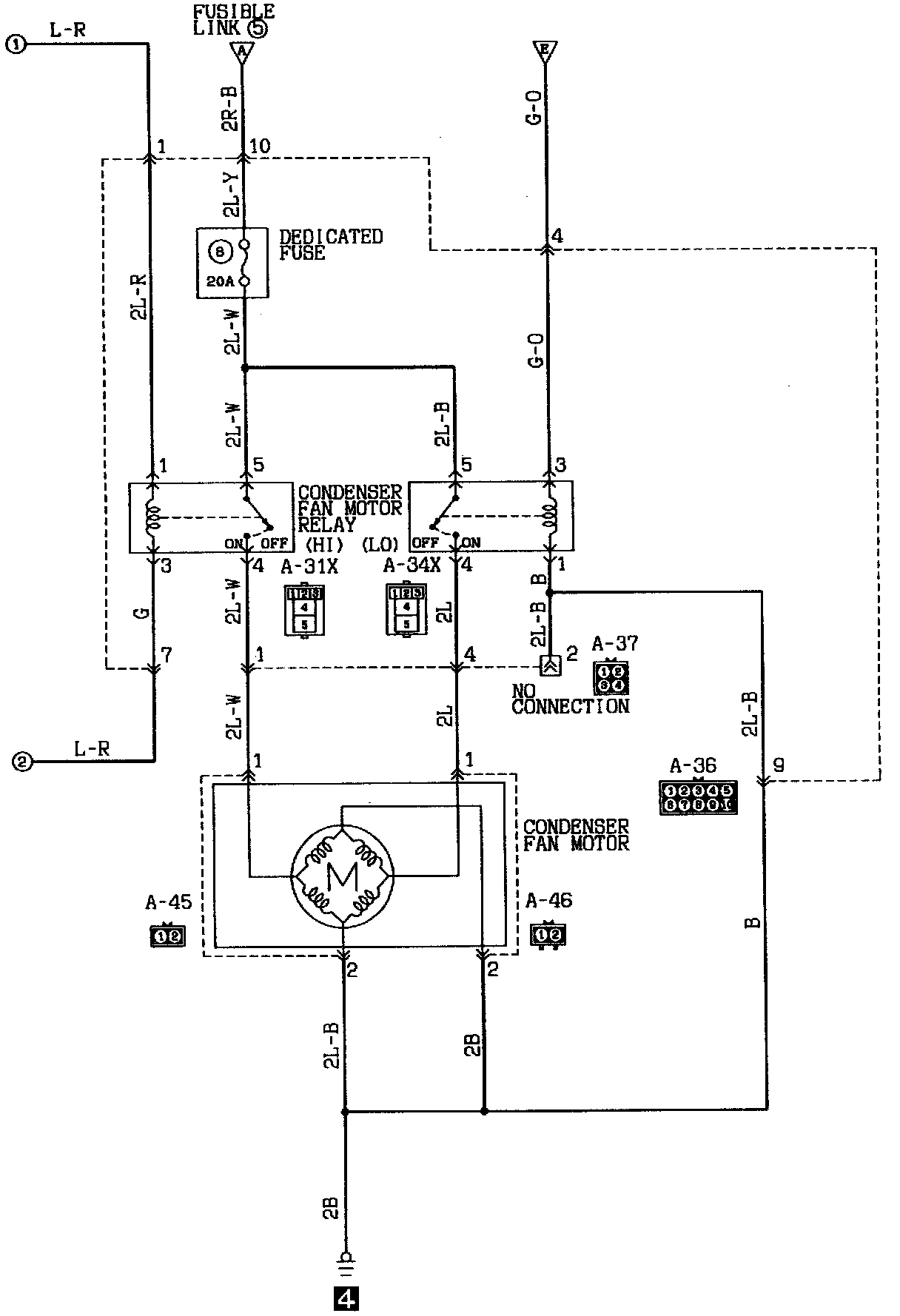

Manual A/C Circuit <SOHC> (Part 3 Of 5):

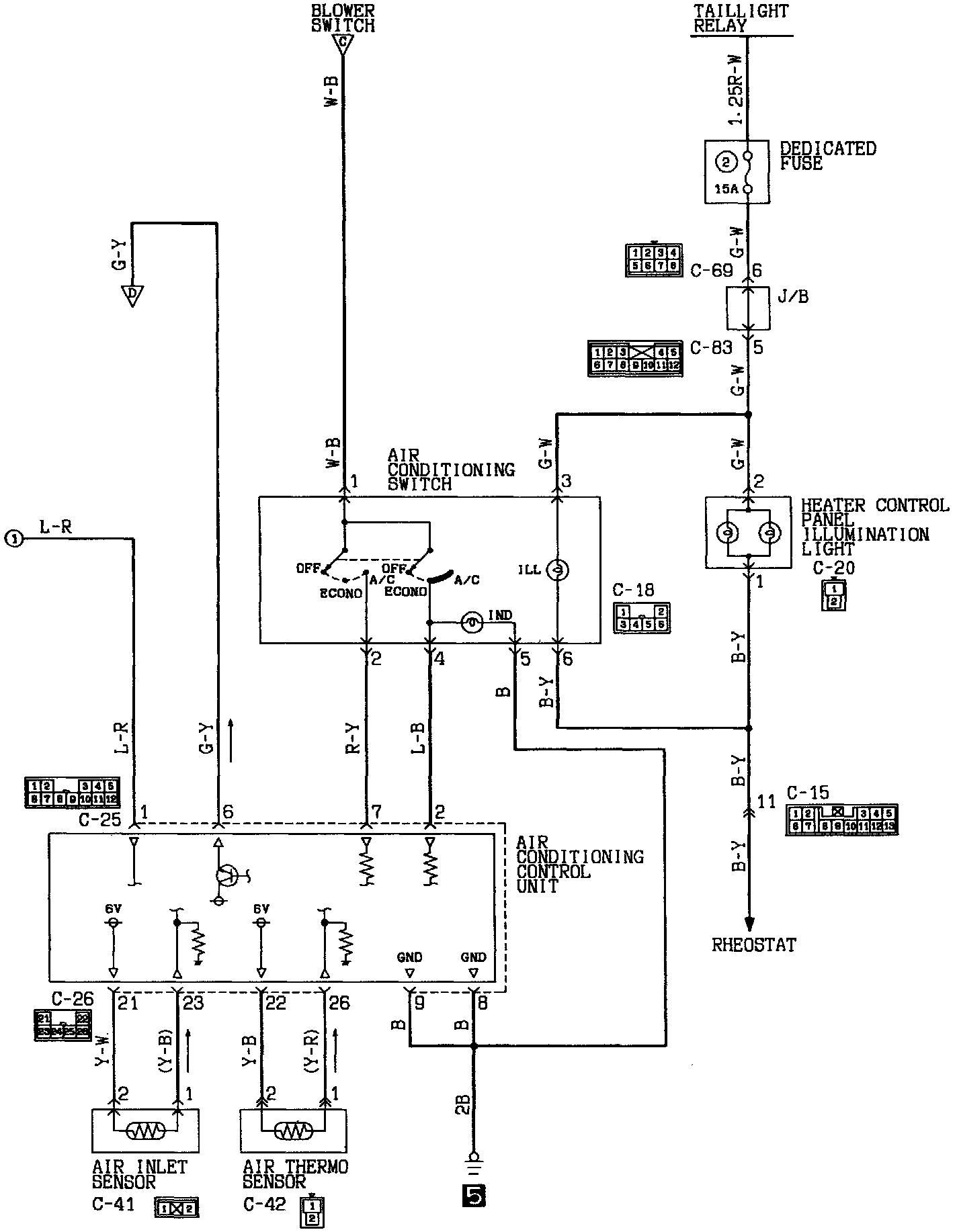

Manual A/C Circuit <SOHC> (Part 4 Of 5):

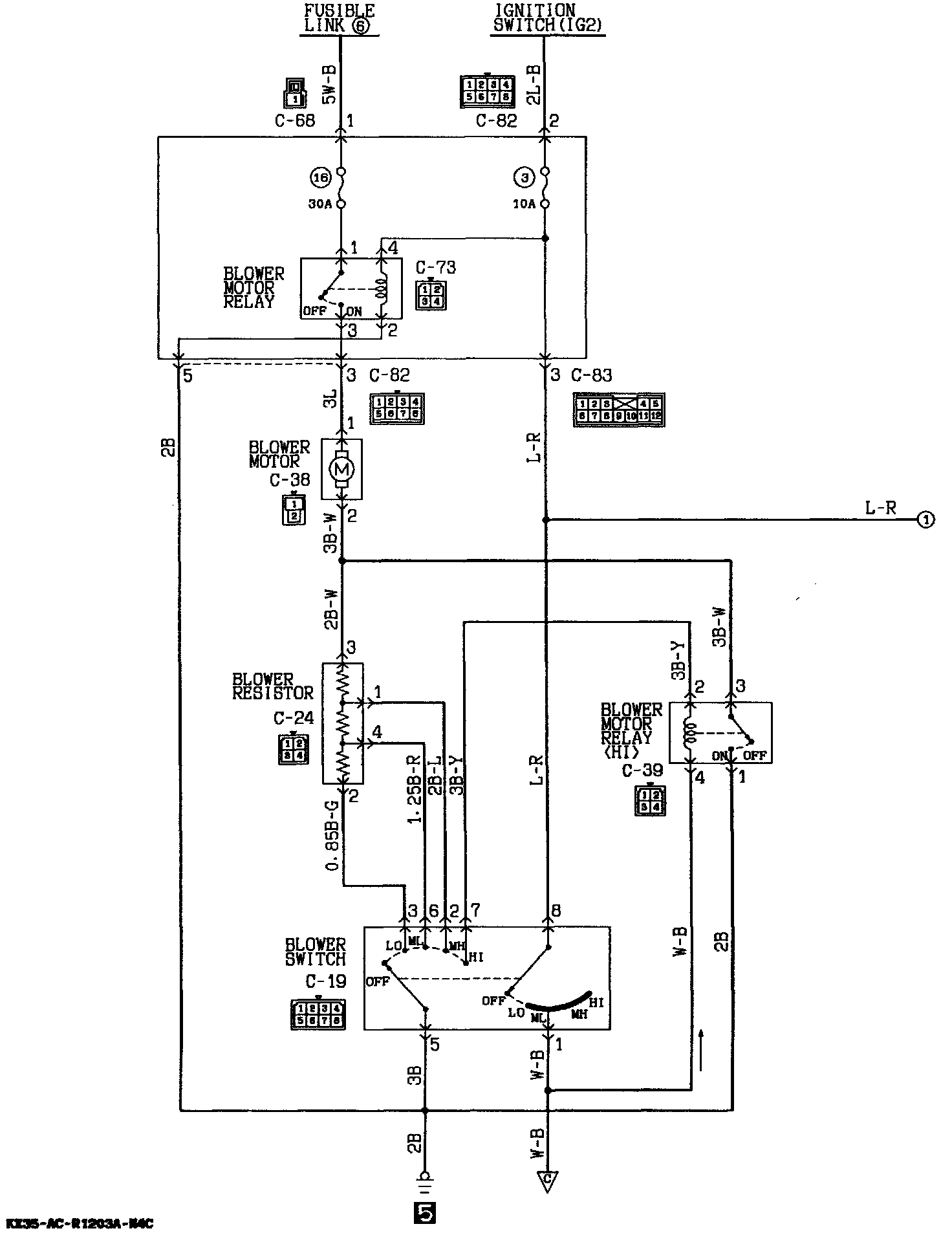

Manual A/C Circuit <SOHC> (Part 5 Of 5):
