Exhaust Manifold: Service and Repair

1. Remove front exhaust pipe.

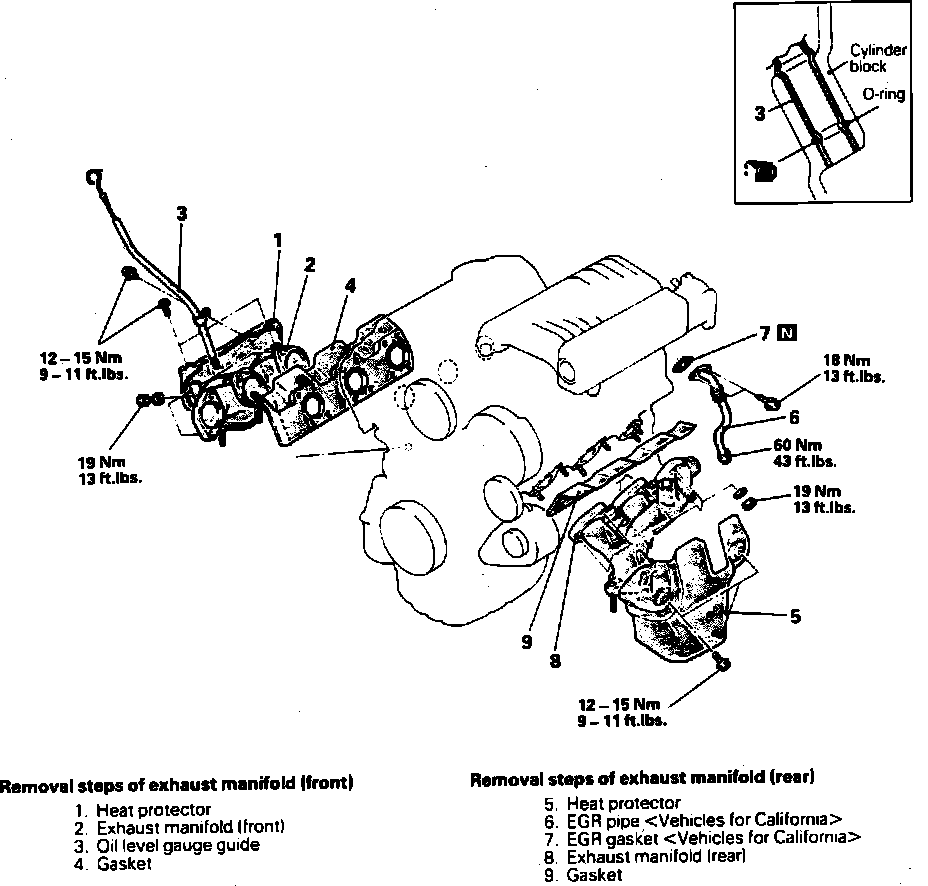

Fig. 17 Exhaust Manifold Replacement. SOHC:

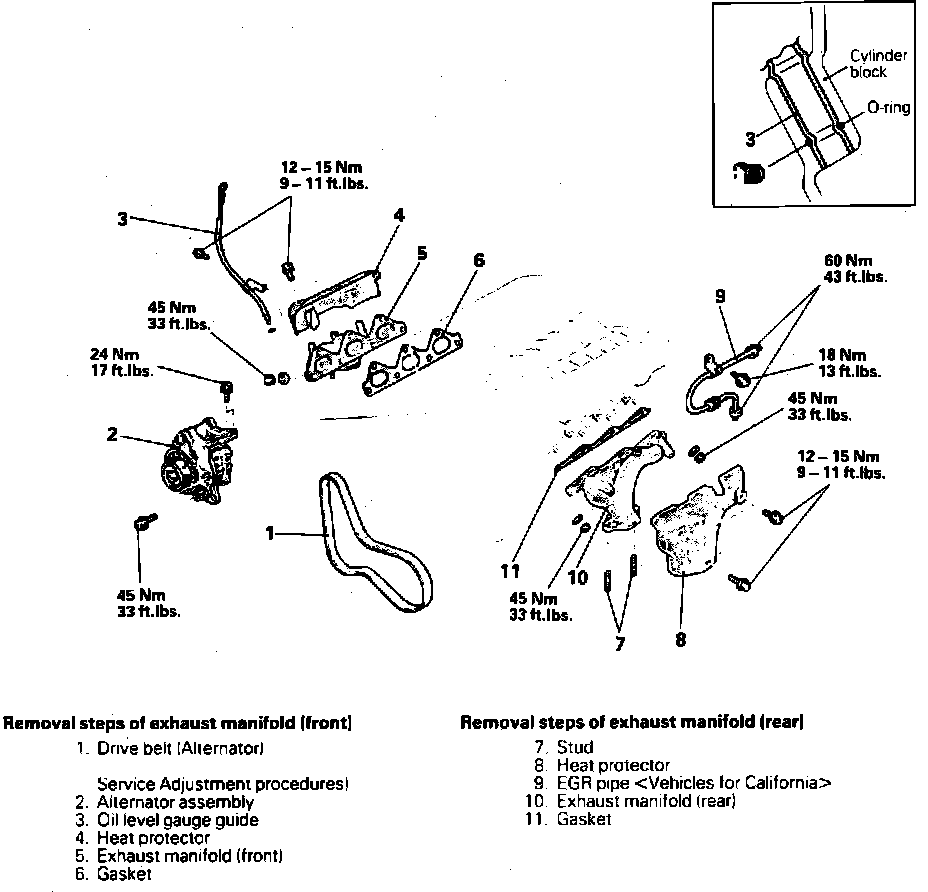

Fig. 18 Exhaust Manifold Replacement. DOHC Except Turbocharged:

2. Remove exhaust manifold in sequence shown.
3. Reverse procedure shown to install.
