Home >> Dodge >> 1994 >> Stealth V6-2972cc 3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Suspension Control ( Automatic - Electronic ) >> Suspension Control Module >> California >> Part 4 of 4

Part 4 of 4

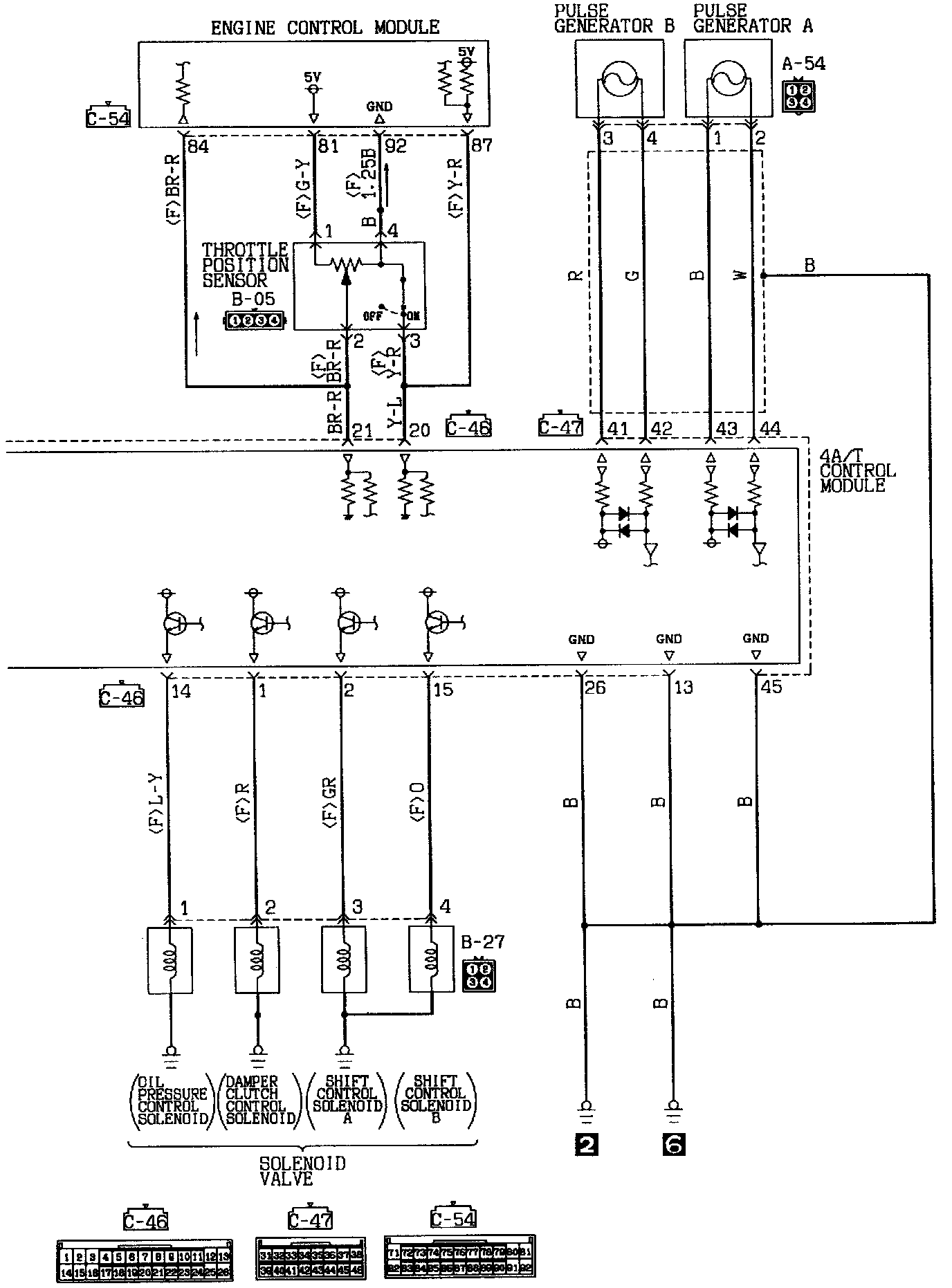

ELC-4 A/T Circuit (California) (Part 4 Of 4):
