Dodge
>>
1994
>>
Stealth V6-2972cc 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
System Diagram
System Diagram

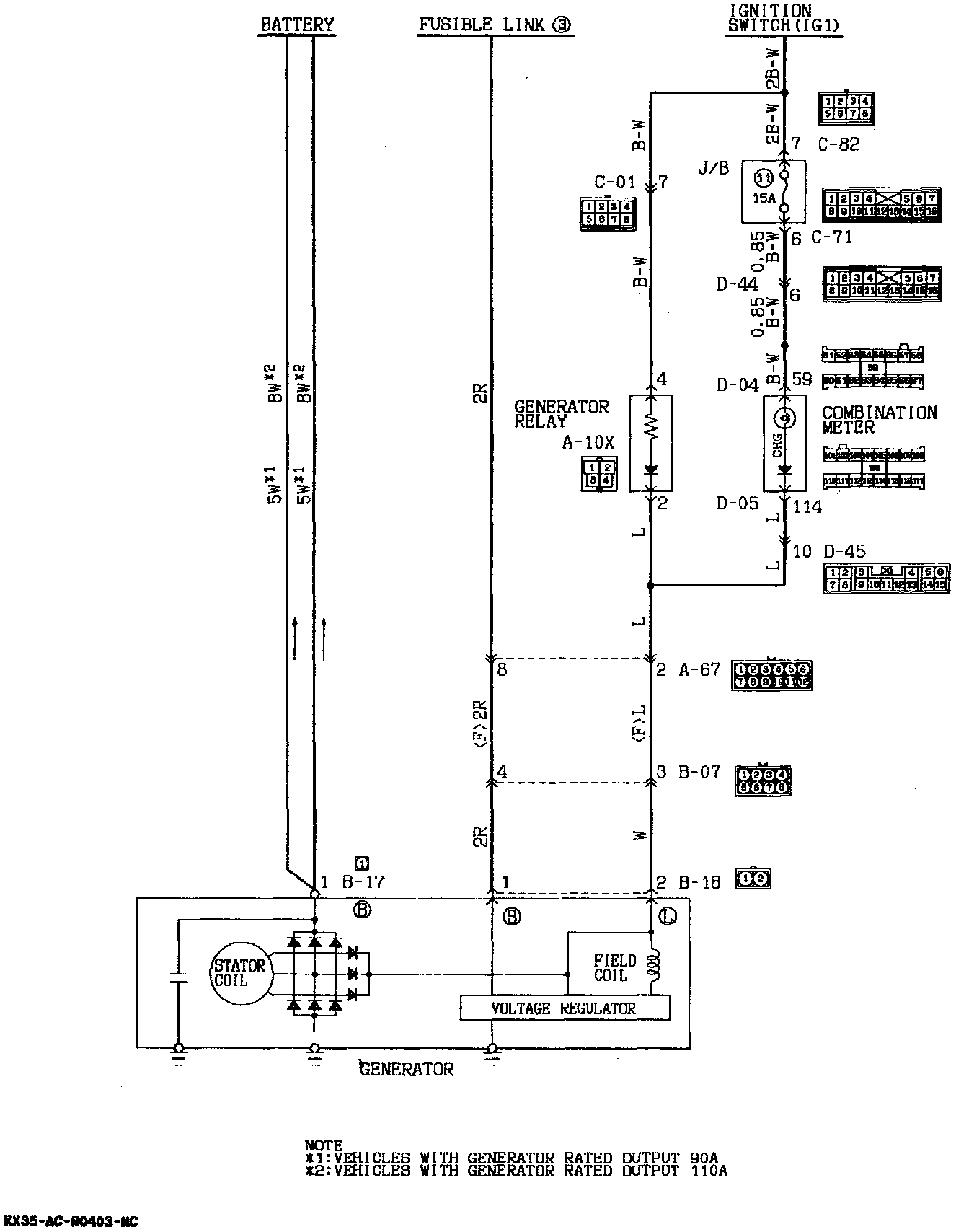

Charging System Circuit <SOHC>:
