Home >> Dodge >> 1994 >> Stealth V6-2972cc 3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> Part 2 of 2

Part 2 of 2

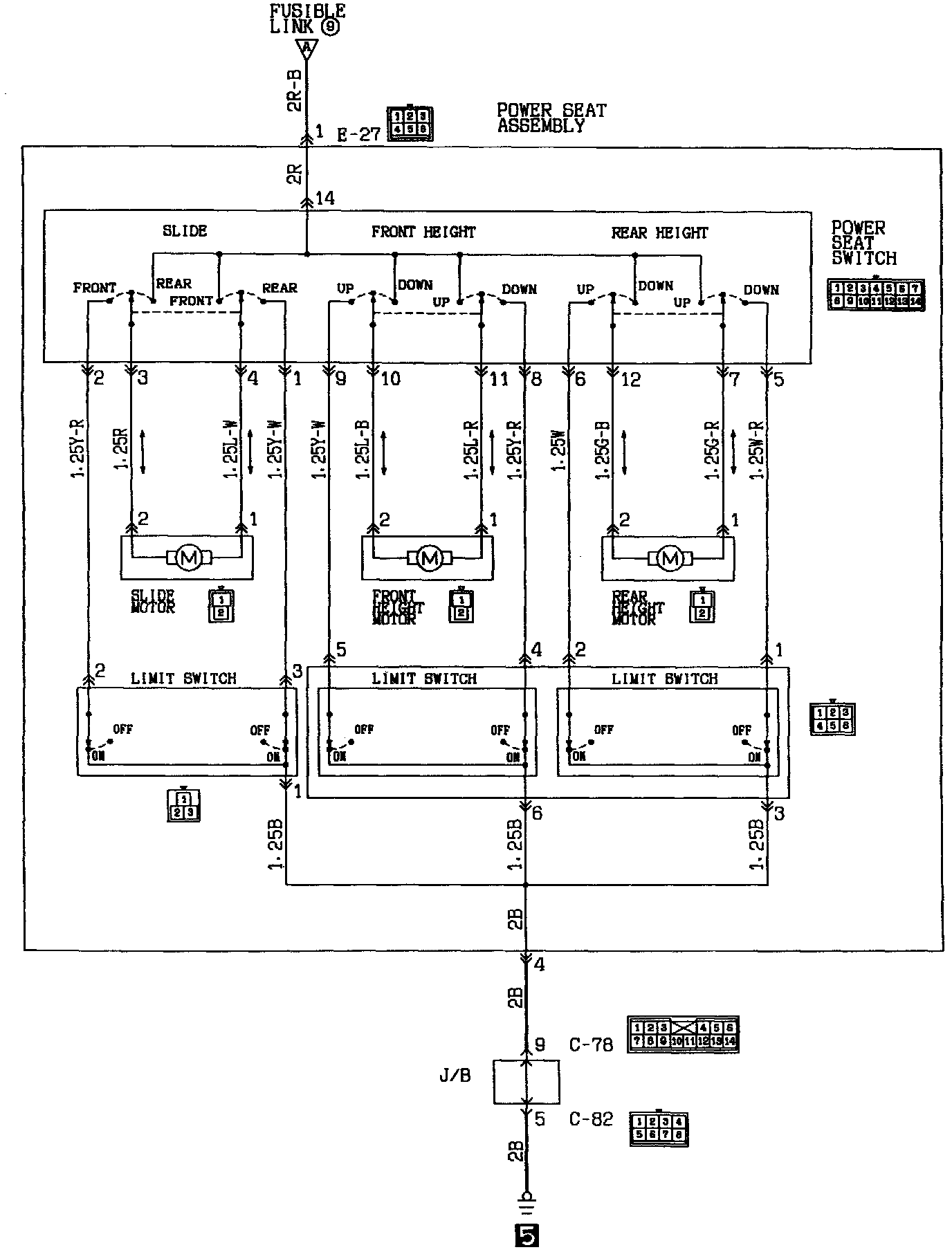

Power Seat Circuit (Part 2 Of 2):
