Home
>>
Dodge
>>
1994
>>
Stealth V6-2972cc 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Camshaft Position Sensor
>>
Wiring Diagrams
Wiring Diagrams

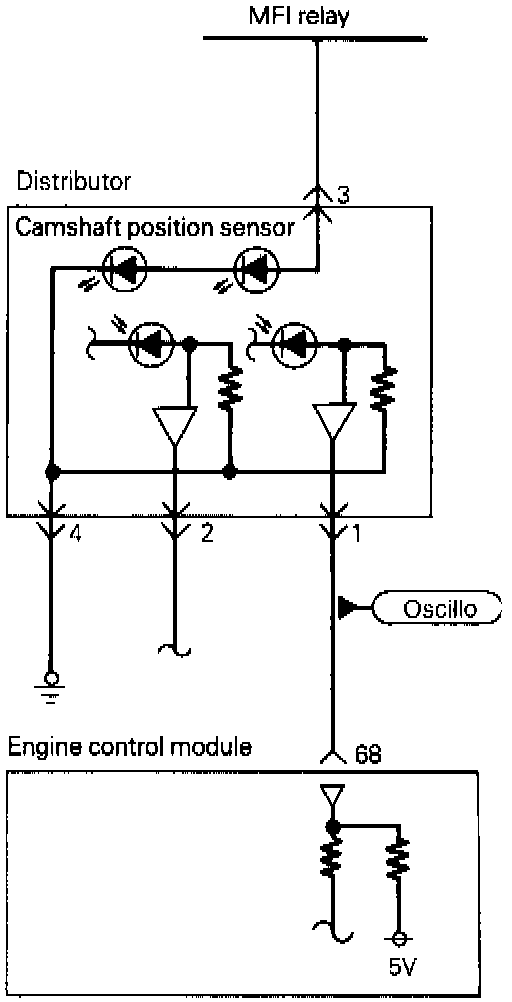

Camshaft Position Sensor Circuit:
