Key Cylinder Lamp
Key Cylinder Lamp

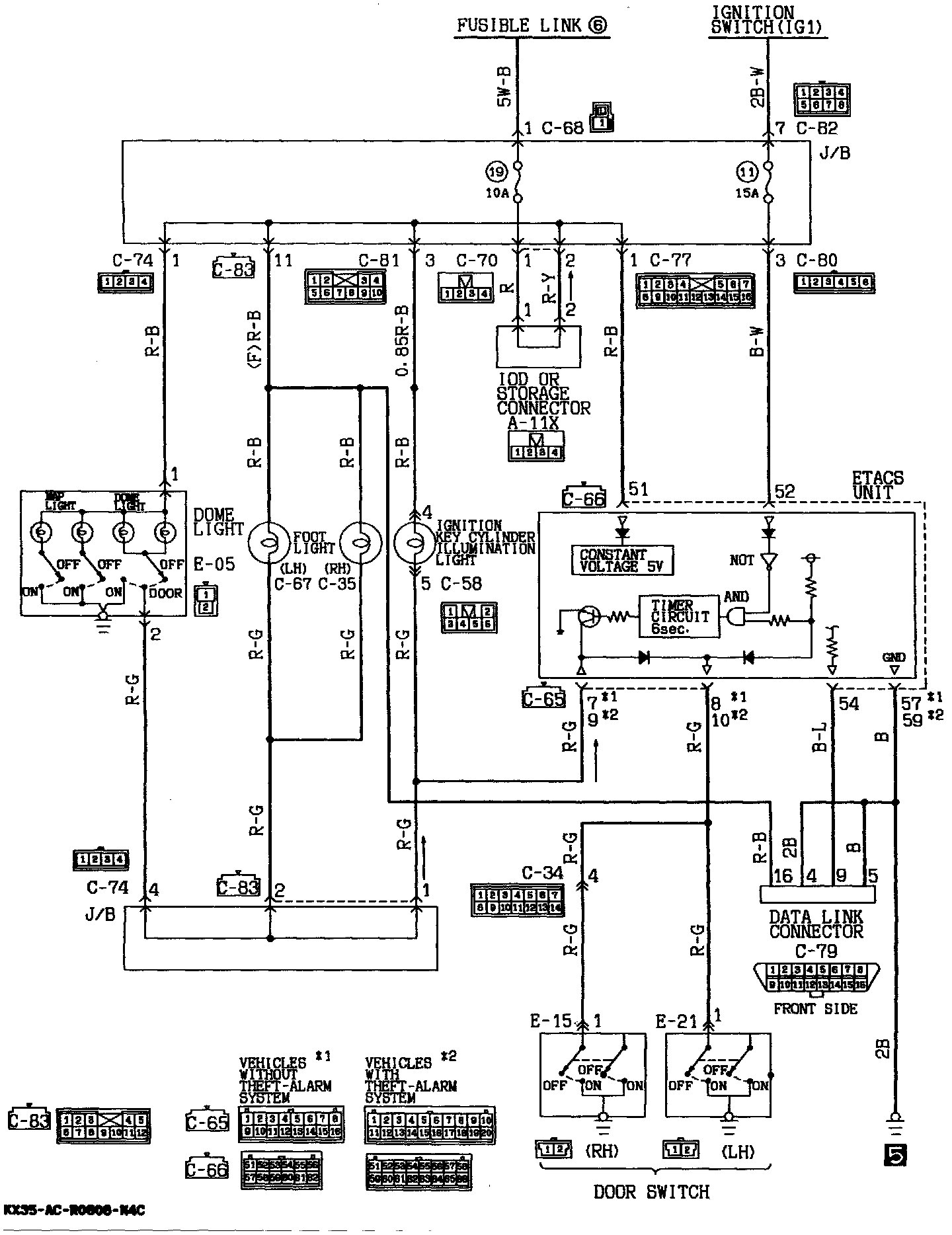

Dome Light, Foot Light, Ignition Key Cylinder Illumination Light Circuit:
