Stealth V6-2972cc 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Horn
>>
System Diagram
>>
With Theft-Alarm System Circuit
With Theft-Alarm System Circuit

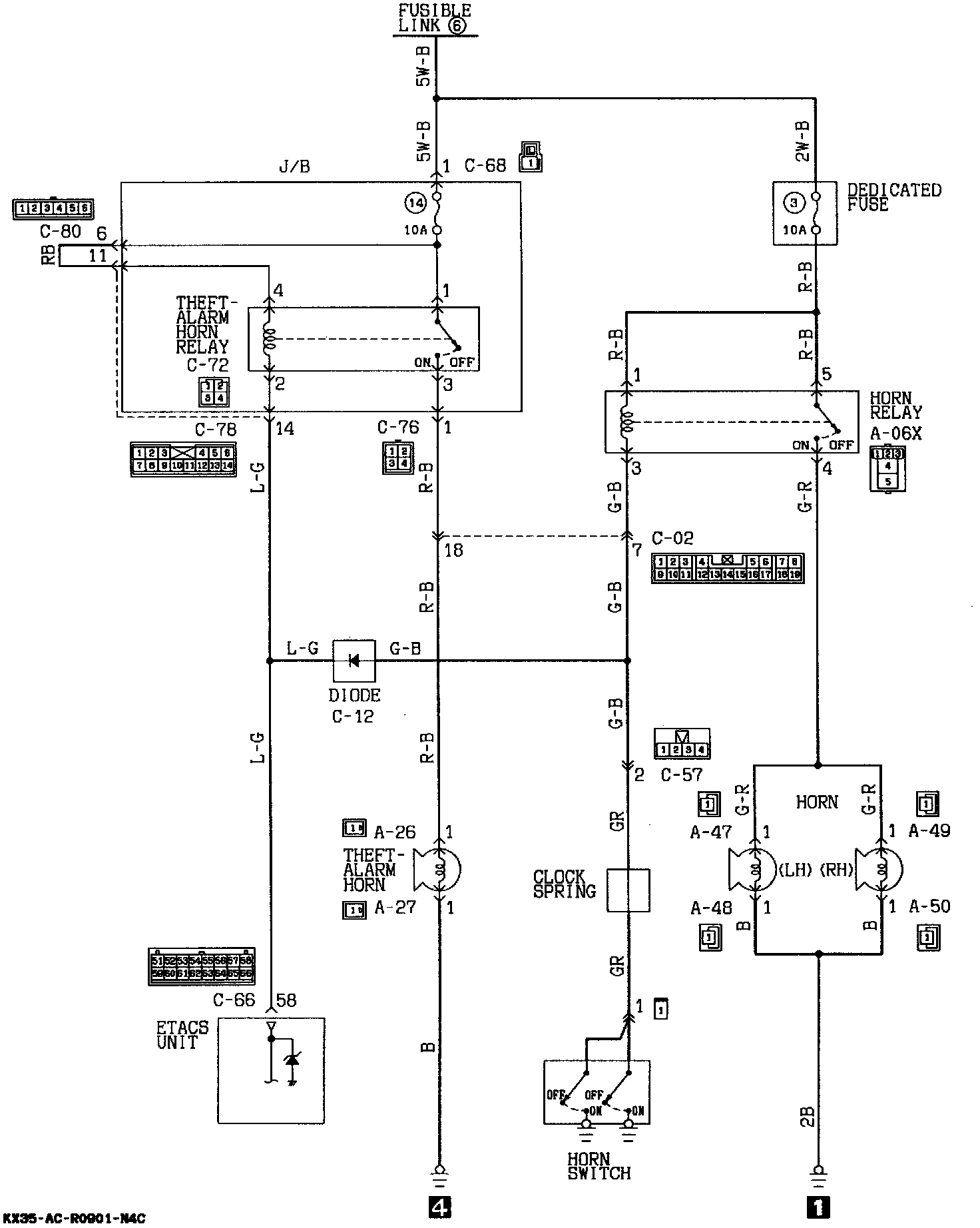

Horn Circuit <Vehicles With Theft-Alarm System>:
