Exhaust System
Exhaust System

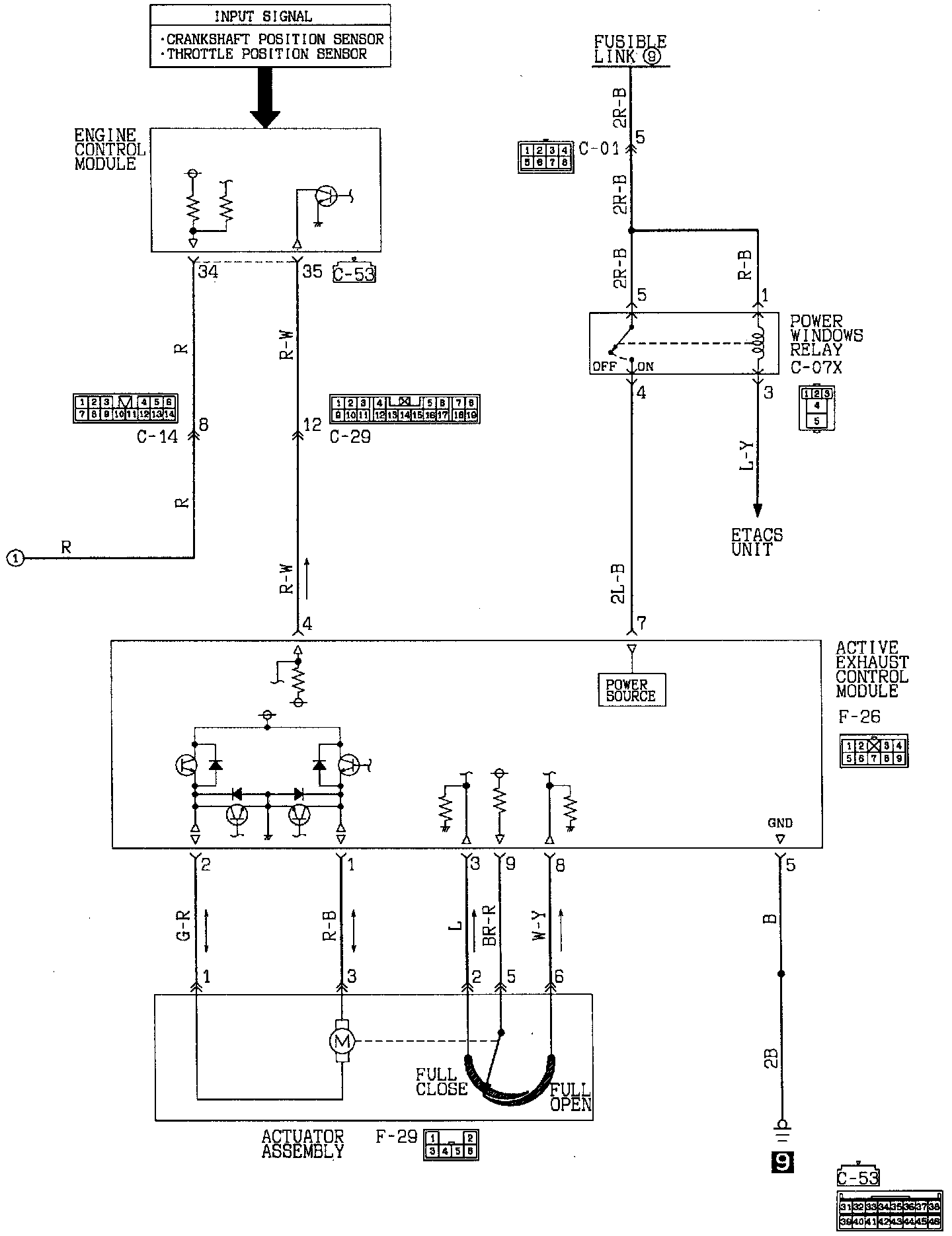

Active Exhaust System Circuit (Part 1 Of 2):

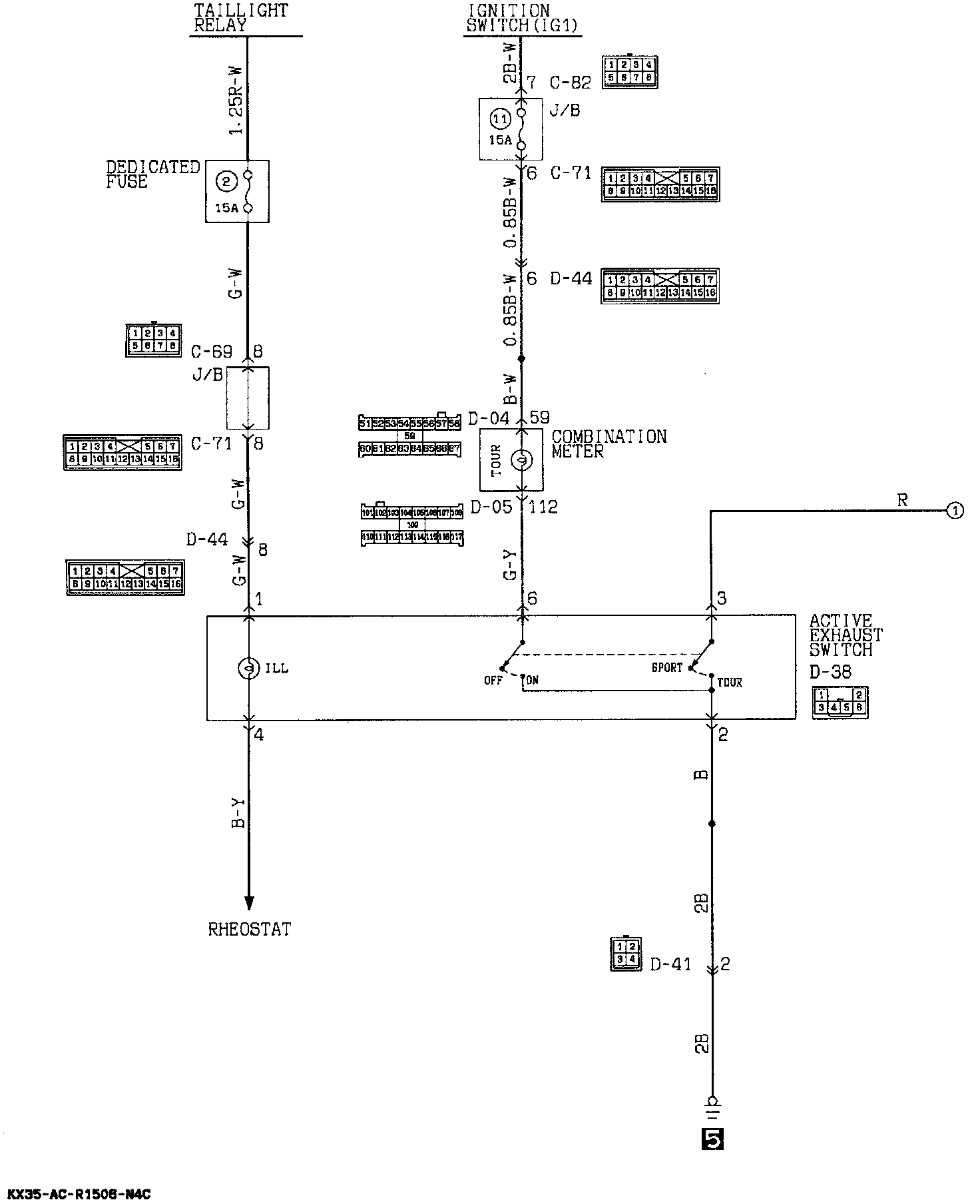

Active Exhaust System Circuit (Part 2 Of 2):
