Home >> Dodge >> 1994 >> Stealth V6-2972cc 3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Door Locks >> Vehicles Without Keyless Entry System >> Part 1 of 2

Part 1 of 2

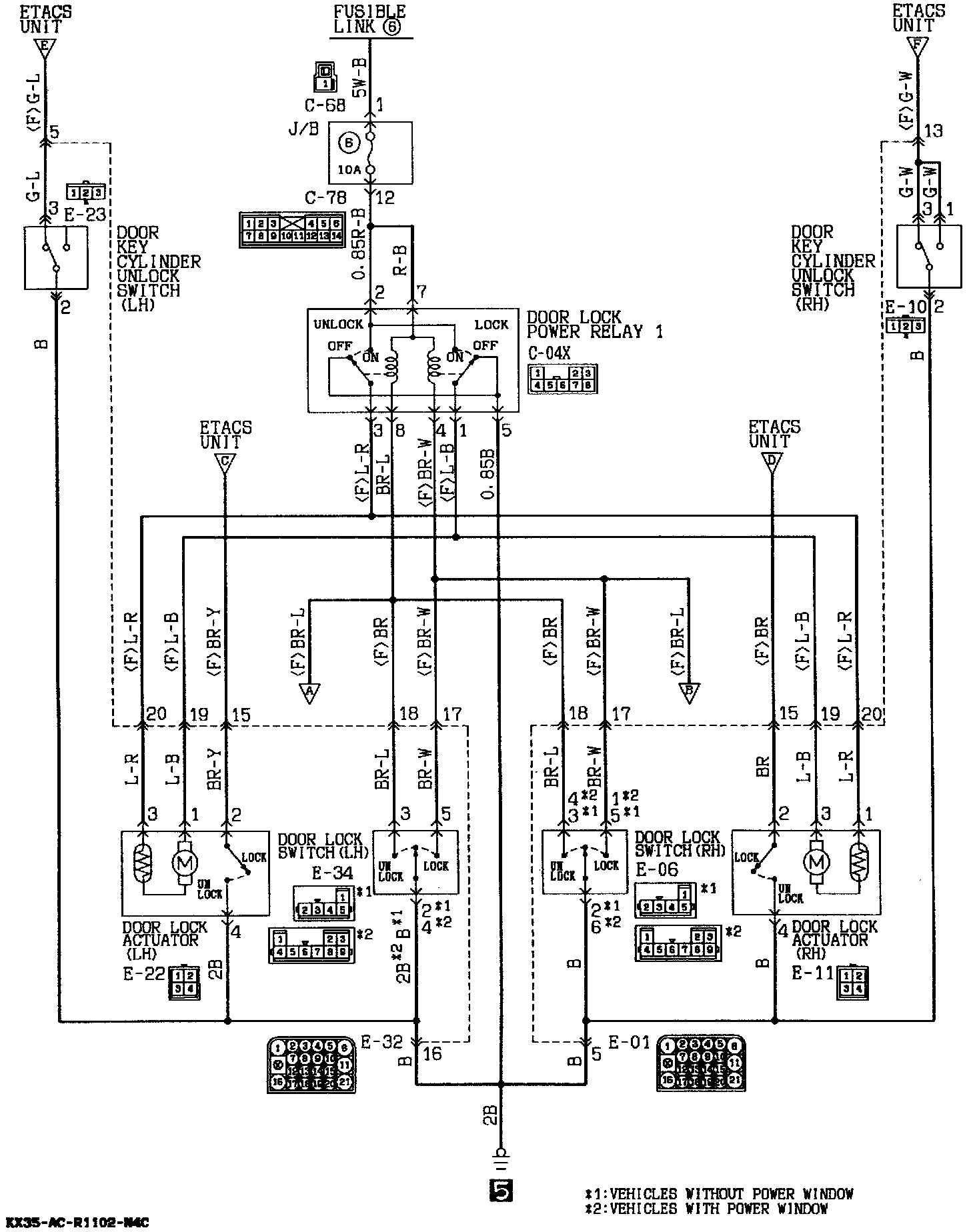

Central Door Locking Circuit <Vehicles Without Keyless Entry System> (Part 1 Of 2):
