Home >> Dodge >> 1994 >> Stealth V6-2972cc 3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Door Locks >> Vehicles With Keyless Entry System >> Part 2 of 3

Part 2 of 3

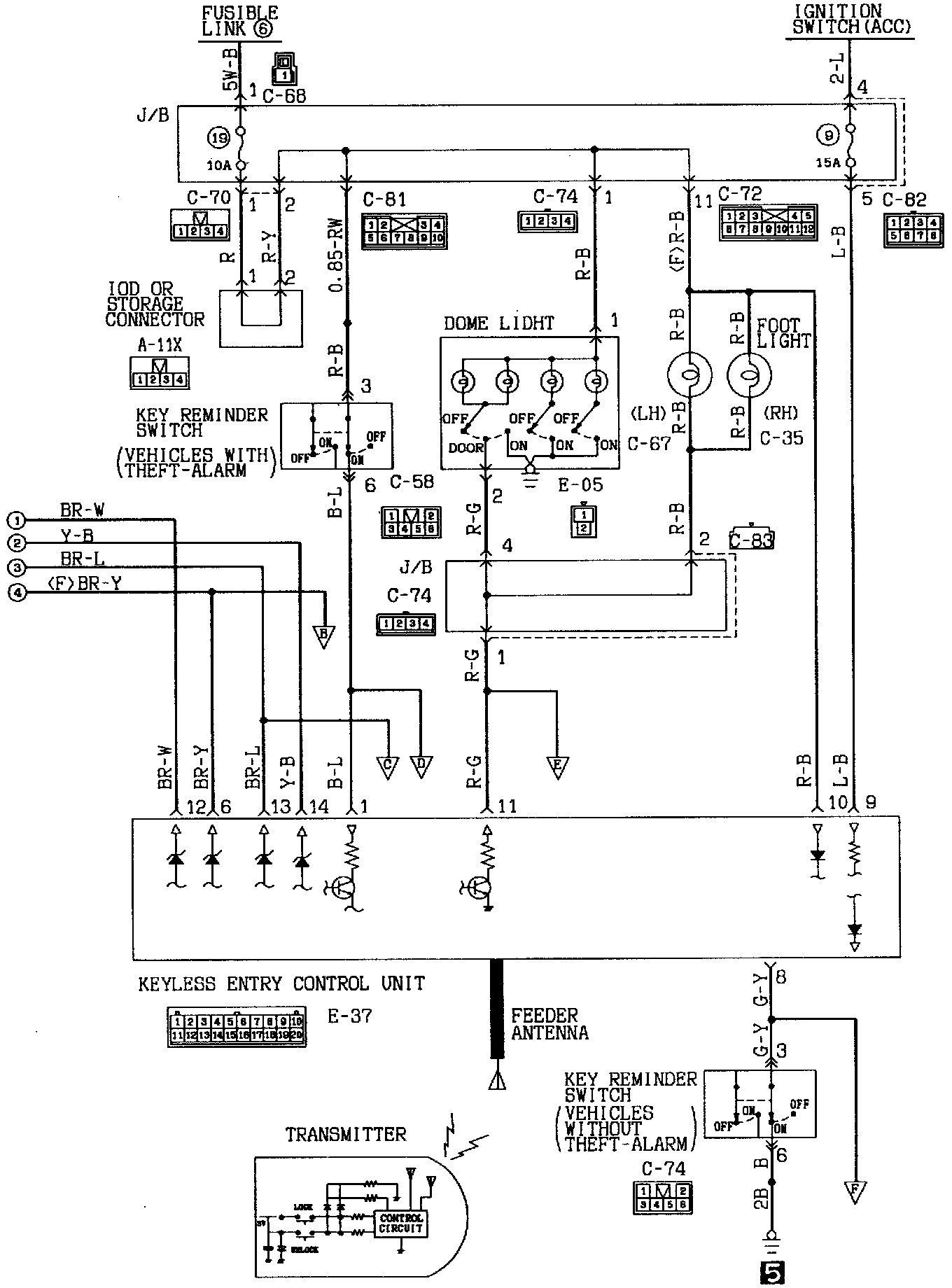

Central Door Locking Circuit <Vehicles With Keyless Entry System> (Part 2 Of 3):
