Antitheft and Alarm Systems
>>
System Diagram
>>
Wiring Diagrams
Wiring Diagrams

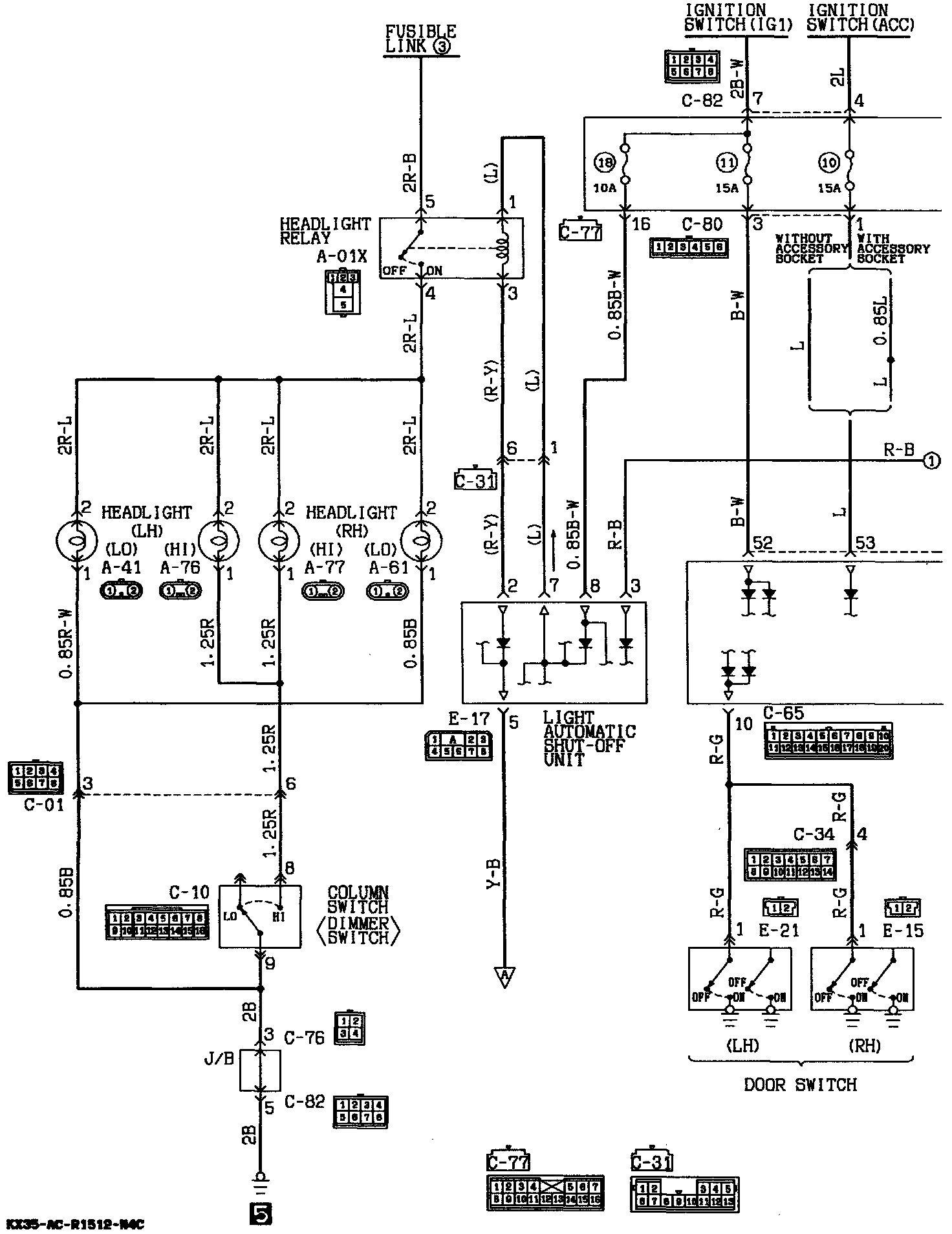

Theft-Alarm System Circuit (Part 1 Of 4):

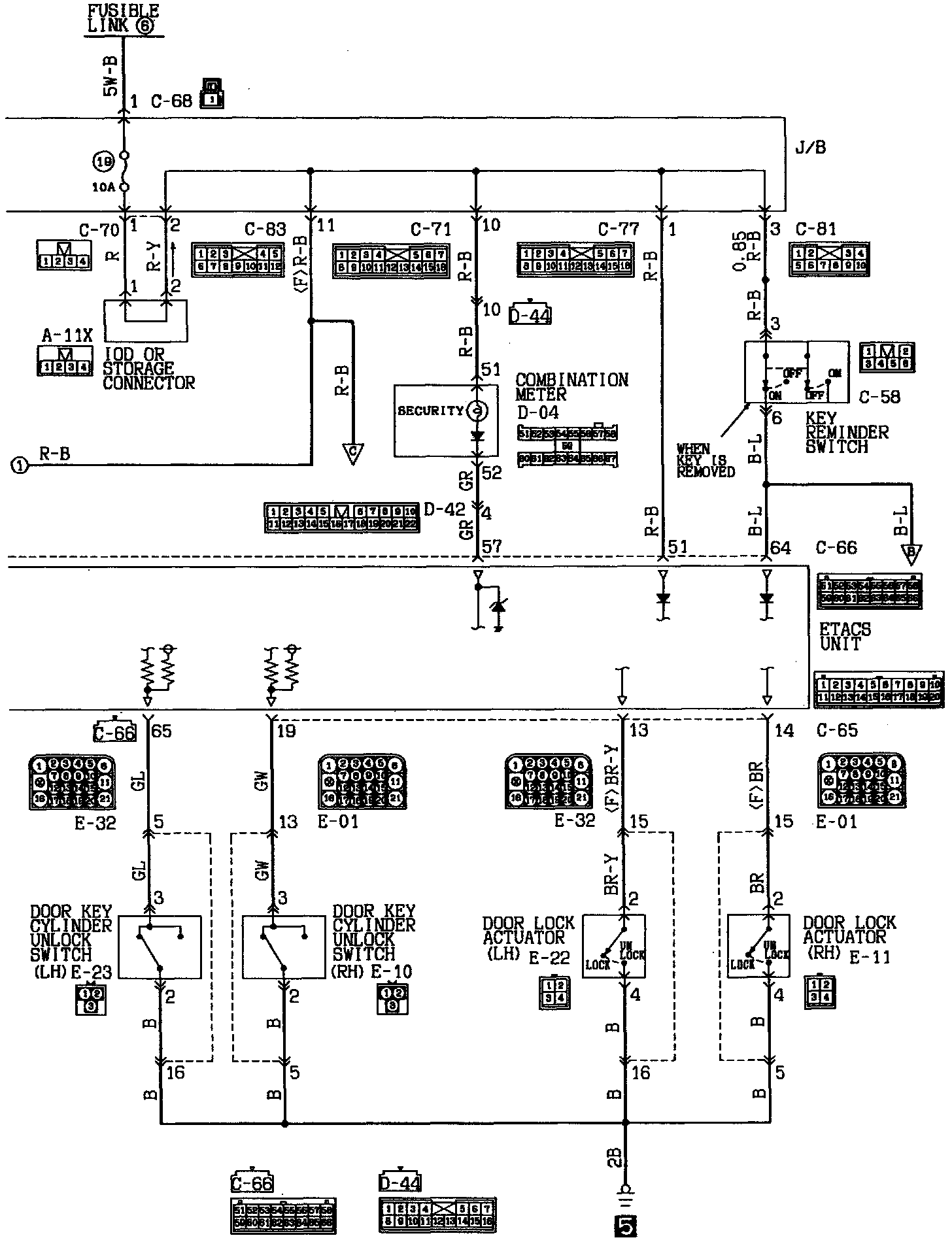

Theft-Alarm System Circuit (Part 2 Of 4):

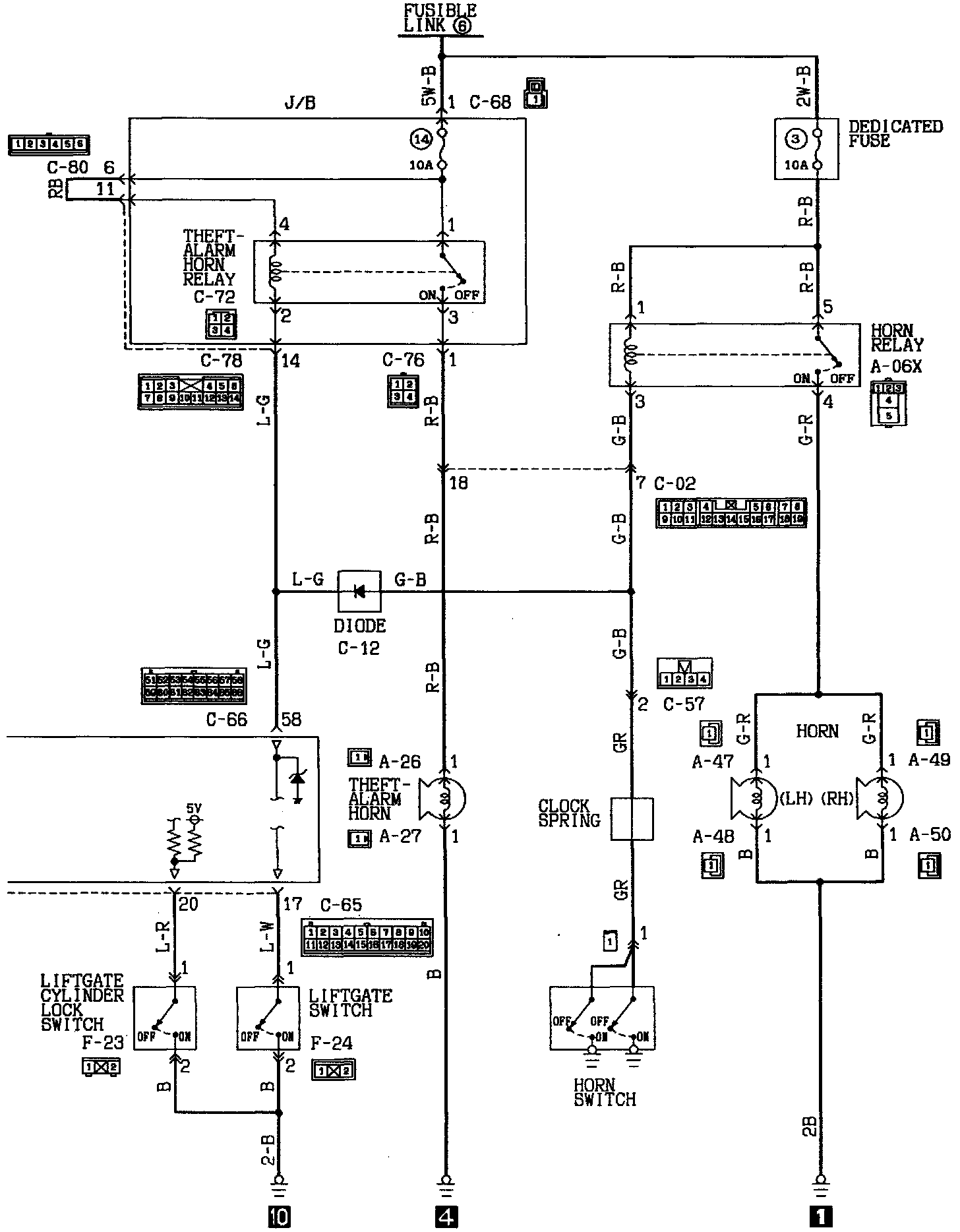

Theft-Alarm System Circuit (Part 3 Of 4):

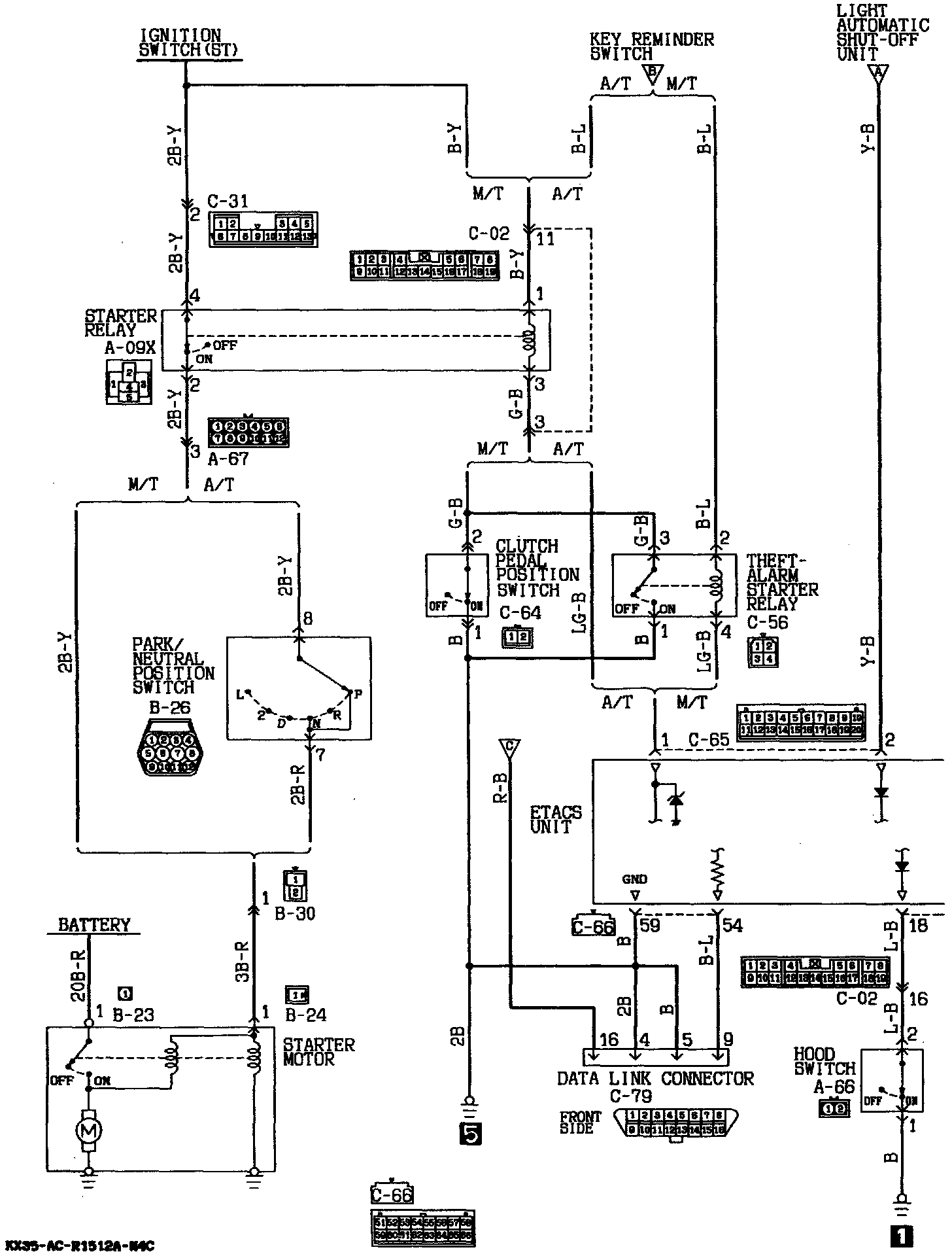

Theft-Alarm System Circuit (Part 4 Of 4):
