Home
>>
Dodge
>>
1994
>>
Stealth V6-2972cc 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antitheft and Alarm Systems
>>
Security Lamp/Indicator
Security Lamp/Indicator

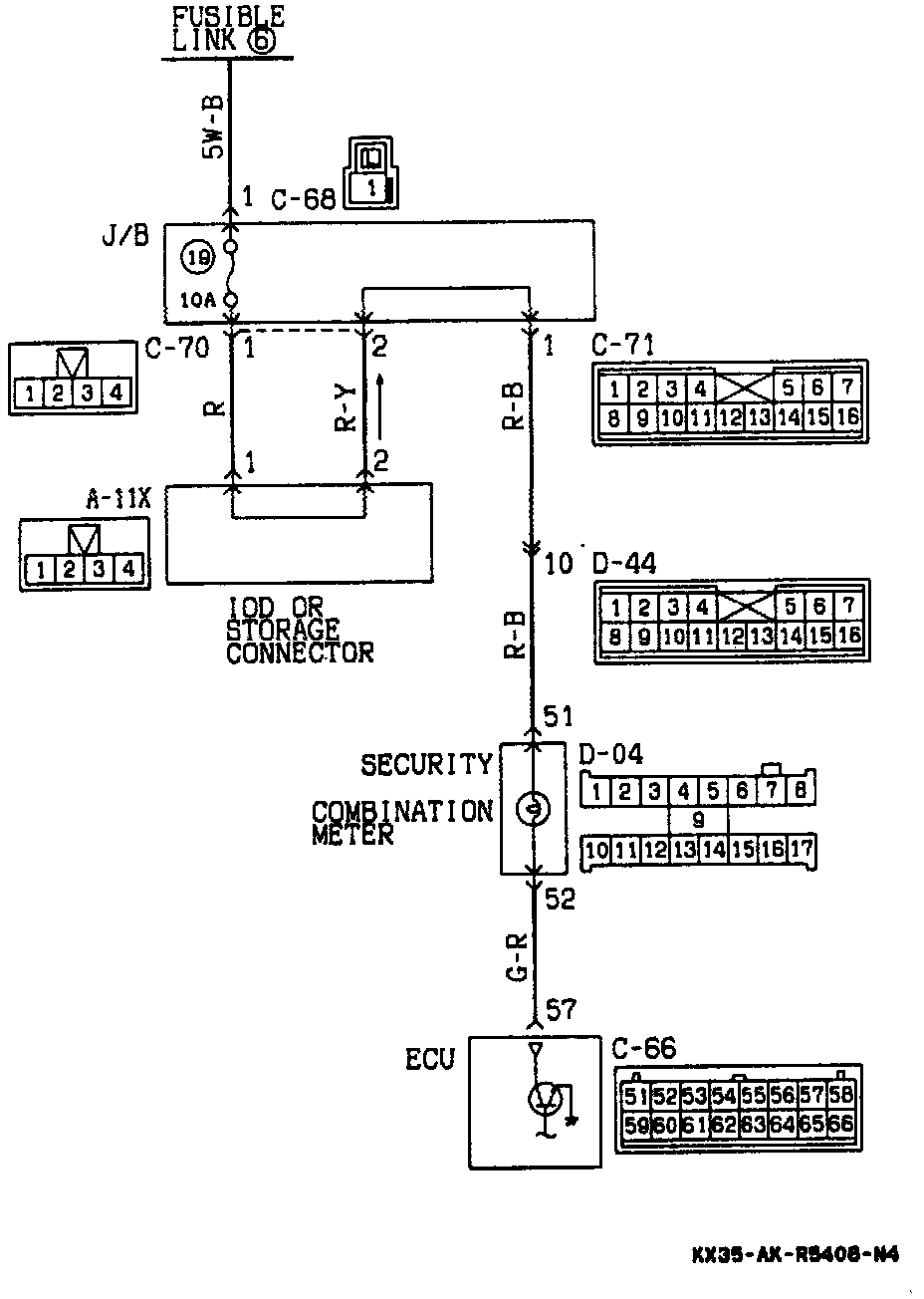

Check Chart 8: Security Light Activation Circuit:
