Heated Glass Element Switch: Testing and Inspection

Rear Window Defogger Switch Inspection:

1. Remove rear window defogger switch from the meter bezel. (Refer to Electrical Lighting system.)

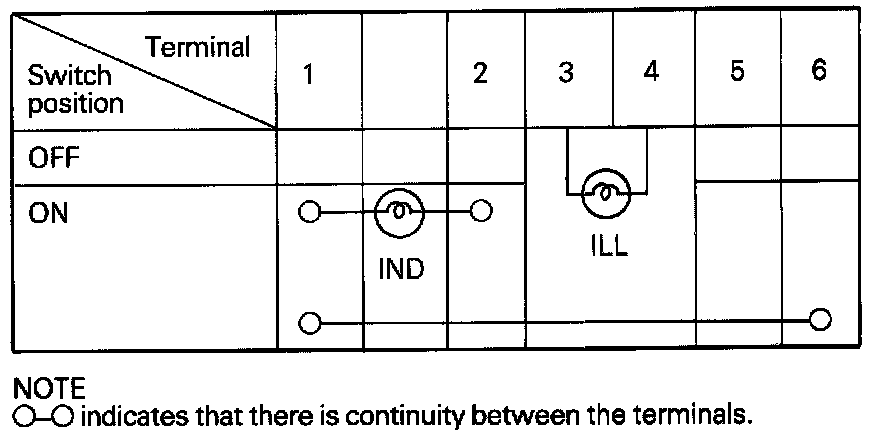

Rear Window Defogger Switch Continuity Table:

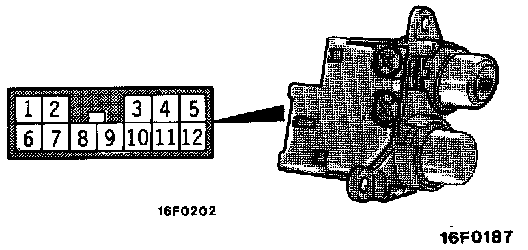

2. Operate the switch and check the continuity between the terminals.
