Starter Relay: Testing and Inspection

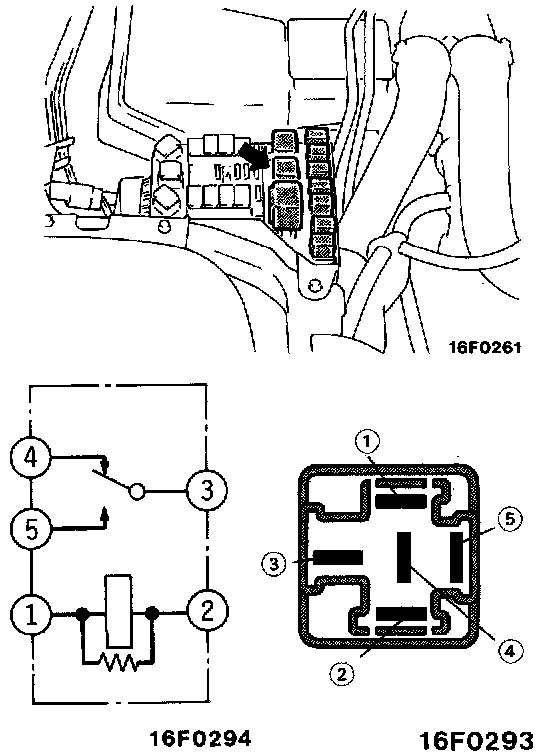

Starter Relay Inspection:

1. Remove the starter relay from the relay box.

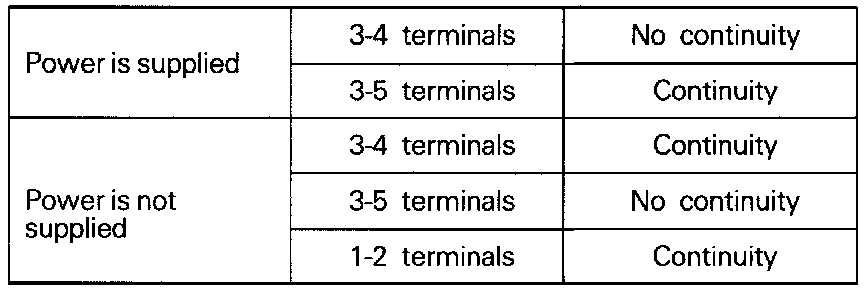

Starter Relay Continuity Chart:

2. Connect battery to terminal 2 and check continuity between terminals with terminal 4 grounded.
