Canister Purge Solenoid: Locations

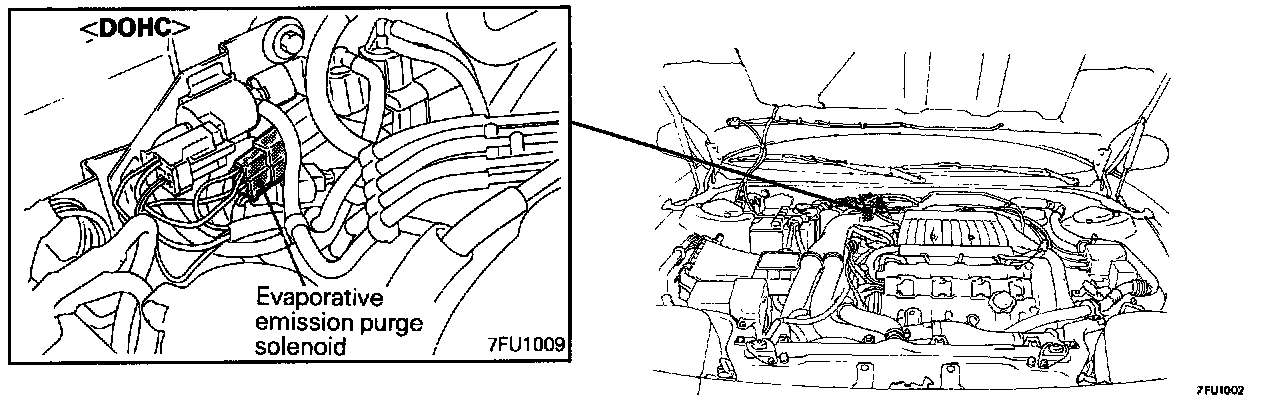

Evaporative Emission Purge Solenoid <DOHC>:
Purge Control Solenoid Valve Location:
Purge Control Solenoid, located on the center of the firewall in the engine compartment.
Purge Control Solenoid, located on the center of the firewall in the engine compartment.
