Home >> Dodge >> 1994 >> Stealth R/T V6-2972cc 3.0L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Computers and Control Systems >> A/C Signal >> Federal and Canada Emissions

Federal and Canada Emissions

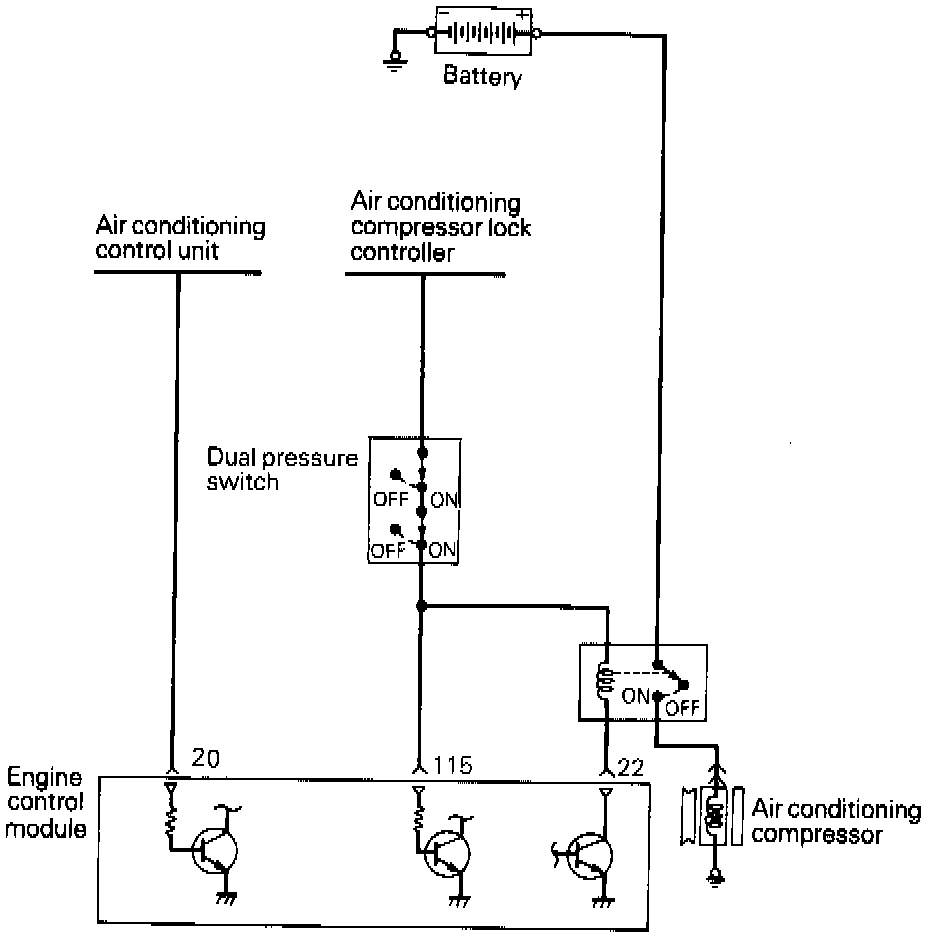

A/C Signal Circuit:
