Separating the Stator and Front Bracket

Separating The Stator And Front Bracket:

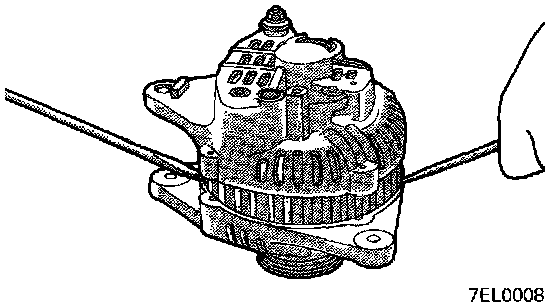

Insert plain screwdriver between front bracket and stator core and pry downward.
CAUTION:
Do not insert screwdriver too deep, as there is danger of damage to stator coil.
