Home >> Dodge >> 1994 >> Stealth R/T V6-2972cc 3.0L DOHC Turbo >> Repair and Diagnosis >> Cruise Control >> Diagrams >> Electrical Diagrams >> A/T

A/T

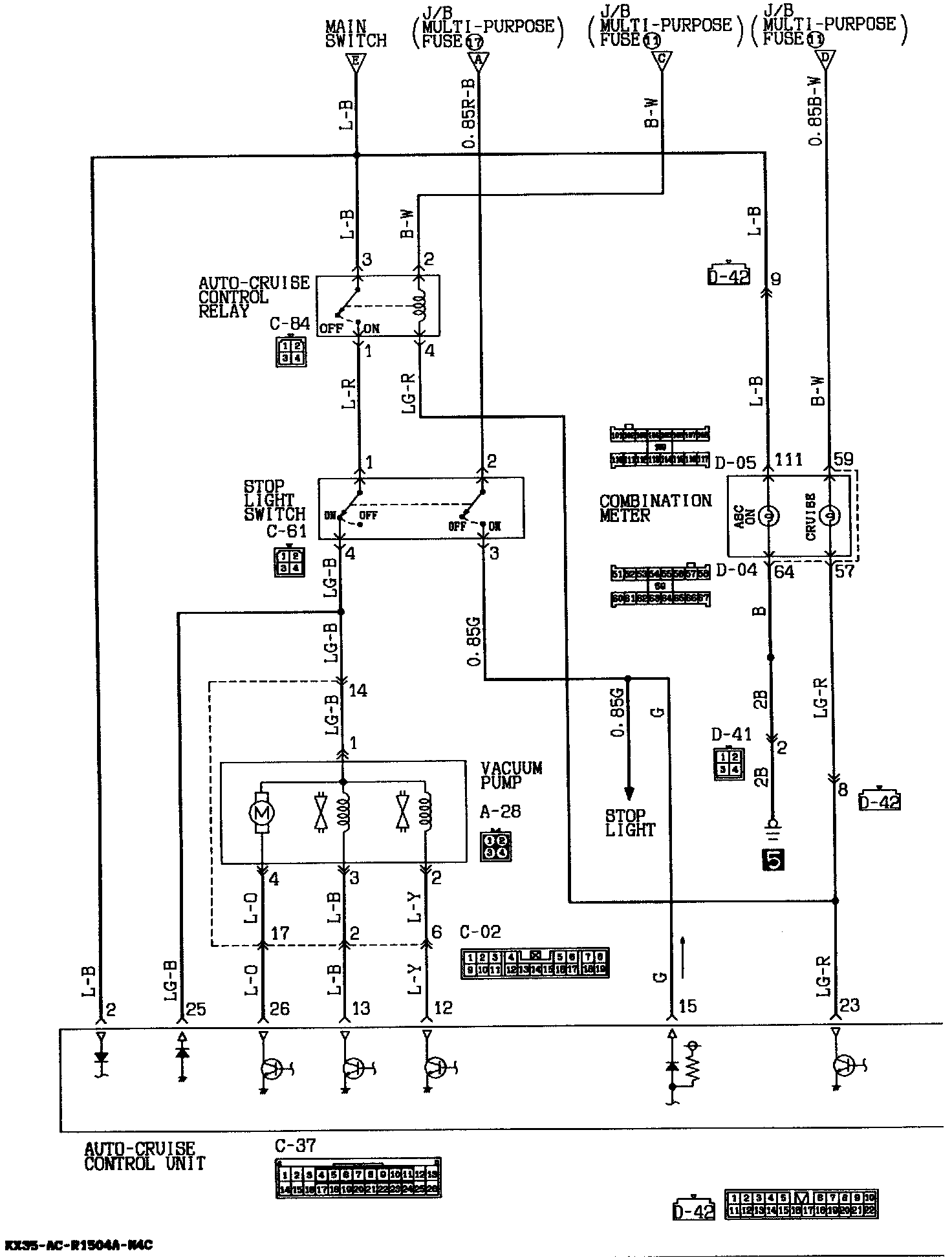

Auto-Cruise Control Circuit <A/T> <DOHC> (California) (Part 1 Of 4):

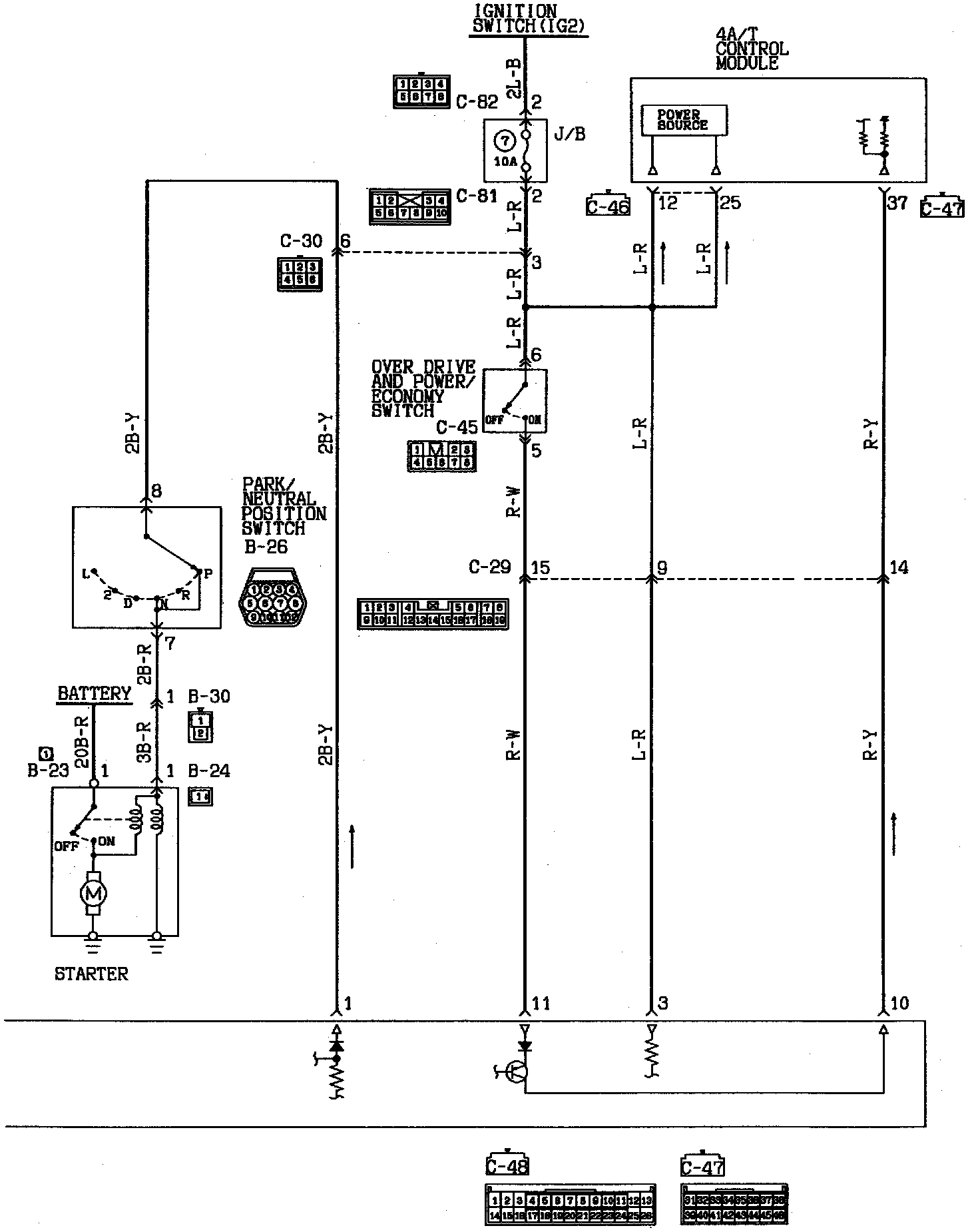

Auto-Cruise Control Circuit <A/T> <DOHC> (California) (Part 2 Of 4):

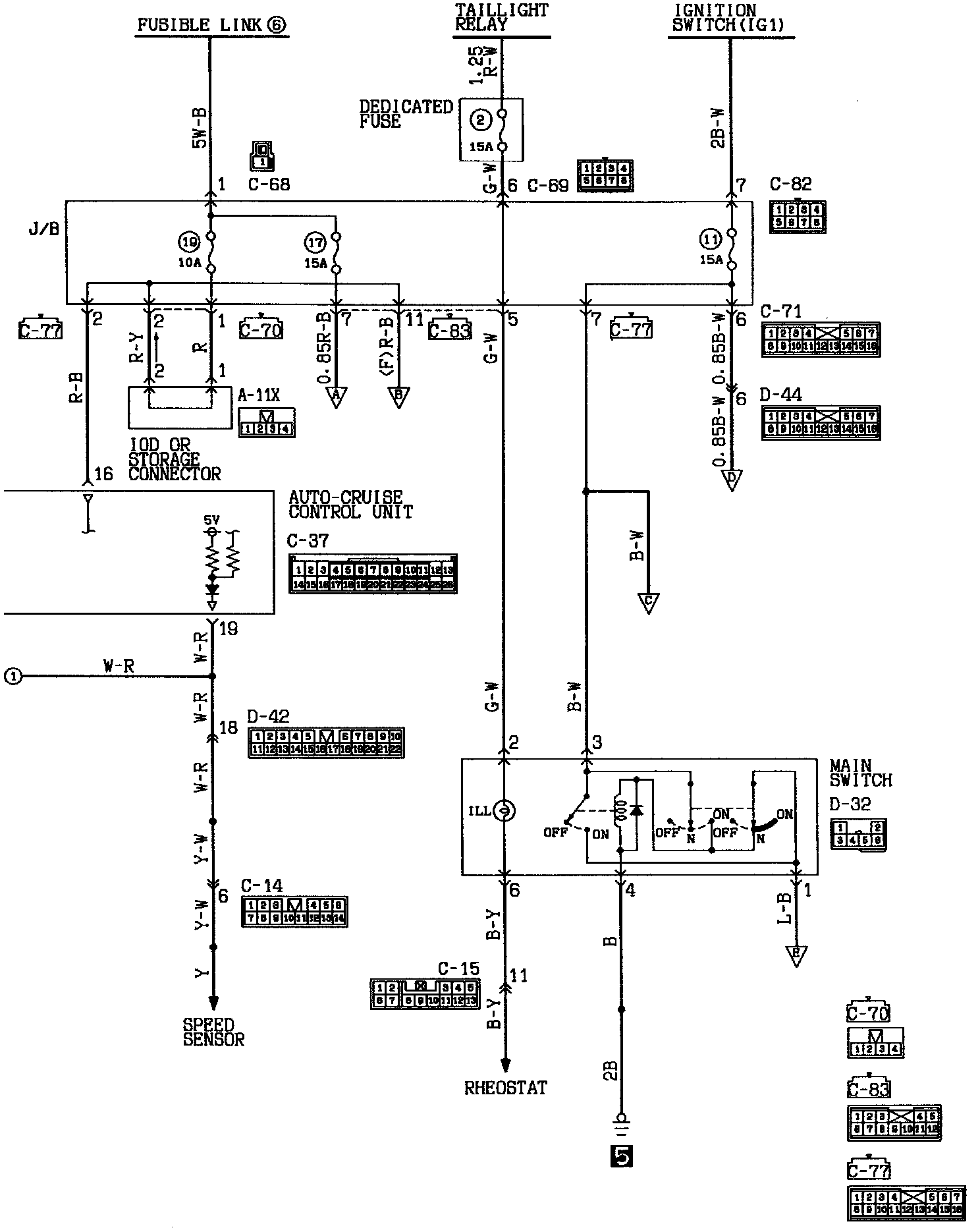

Auto-Cruise Control Circuit <A/T> <DOHC> (California) (Part 3 Of 4):

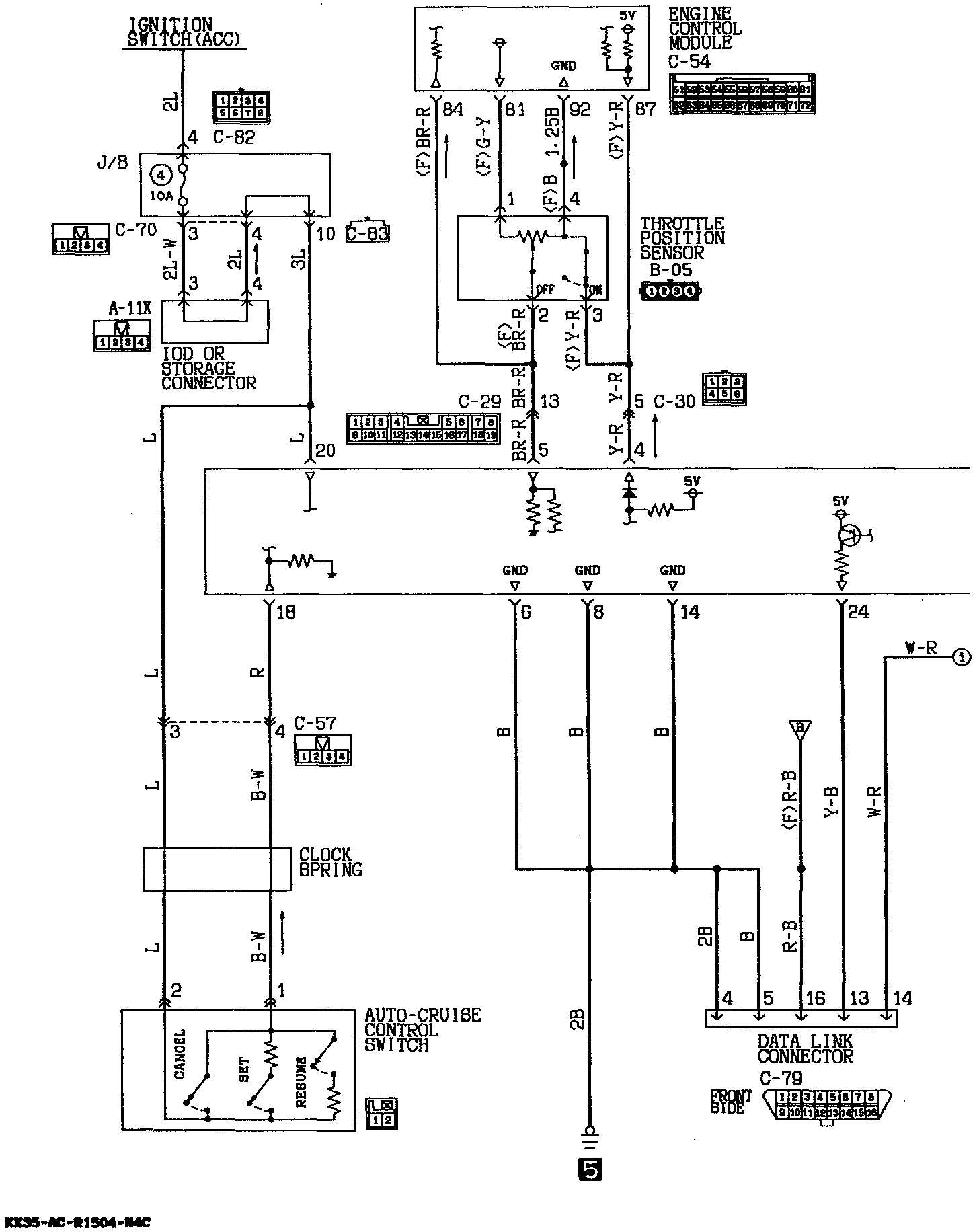

Auto-Cruise Control Circuit <A/T> <DOHC> (California) (Part 4 Of 4):
