Dodge
>>
1994
>>
Spirit V6-181 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Starting System
>>
System Diagram
>>
With Transmission Control
With Transmission Control

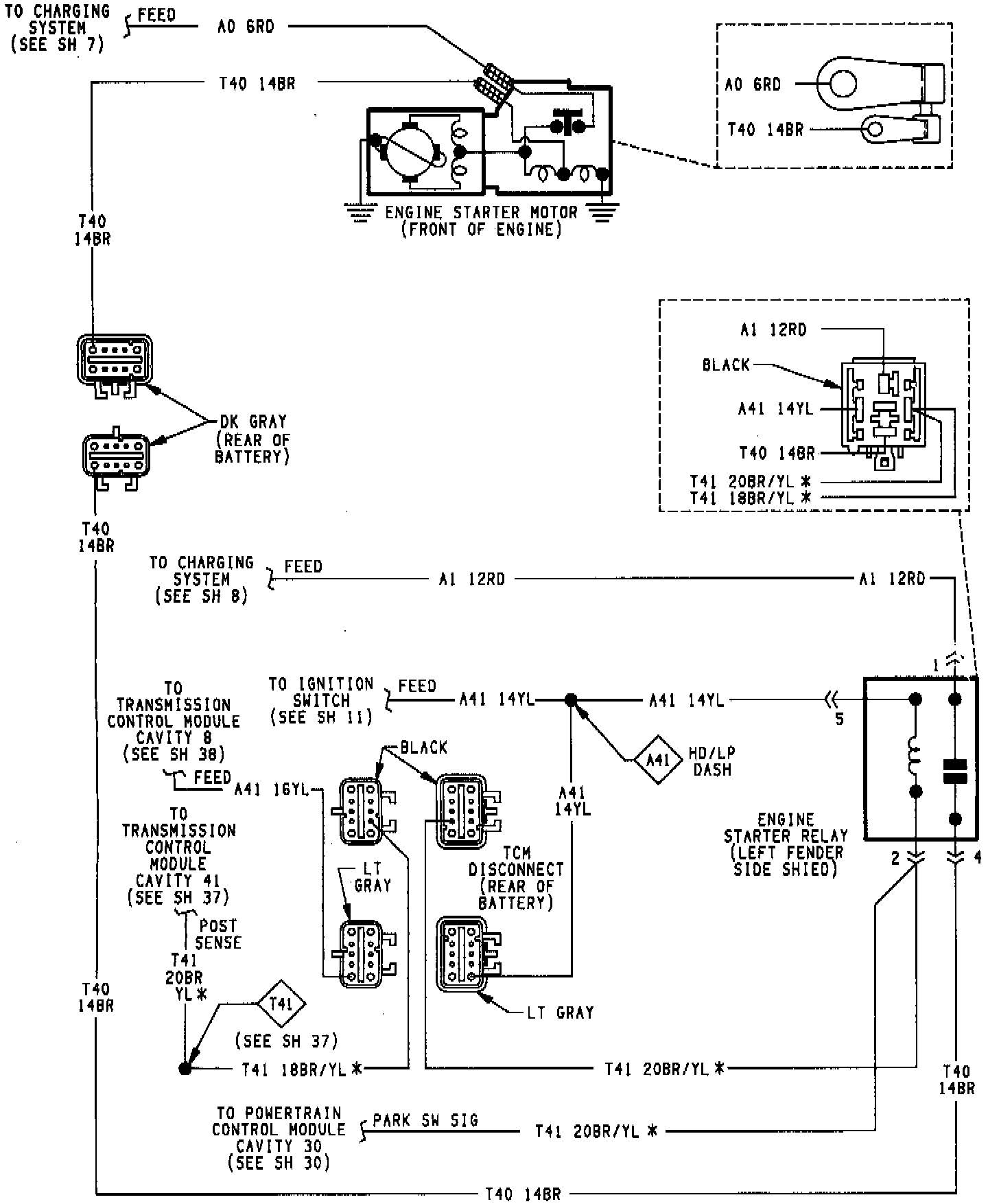

Engine Starter System:
